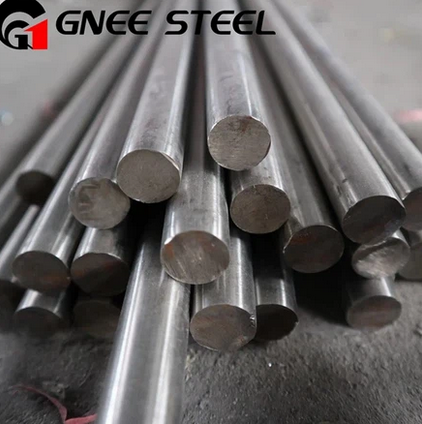

1. Q: What are the fundamental distinctions between Gr2, Gr9, and Gr5 titanium bars, and how do these differences dictate their respective application domains?
A: Gr2, Gr9, and Gr5 represent three distinct classes of titanium products-commercially pure, near-alpha alloy, and alpha-beta alloy respectively-each offering a unique balance of mechanical properties, formability, and corrosion resistance that determines their optimal application domains.
Gr2 (Commercially Pure, CP-2): Designated under ASTM B348 as Grade 2, this is the most widely utilized commercially pure titanium grade. Its composition is essentially unalloyed titanium with controlled interstitial elements-primarily oxygen (0.25% max)-which provides a moderate tensile strength of 345–510 MPa in the annealed condition. Gr2's defining characteristic is its exceptional corrosion resistance across a broad range of environments, particularly in seawater, chlorides, and oxidizing acids. With elongation typically exceeding 20%, it offers outstanding formability and weldability, making it the preferred choice for chemical processing equipment, heat exchanger tubing, and marine hardware. Its modulus of elasticity (approximately 105 GPa) is consistent across all titanium grades.
Gr9 (Ti-3Al-2.5V, Near-Alpha): Gr9 represents a leaner alloy variant containing 3% aluminum and 2.5% vanadium. With tensile strengths ranging from 620–790 MPa, it bridges the gap between commercially pure grades and the higher-strength Gr5. Gr9 offers approximately 40–60% higher strength than Gr2 while maintaining superior cold formability compared to Gr5. This unique combination-often described as "moderate strength with exceptional workability"-makes Gr9 the material of choice for aerospace hydraulic tubing, bicycle frames, and high-performance automotive components where complex forming operations are required. Its near-alpha microstructure also provides excellent weldability and intermediate-temperature performance up to approximately 300°C.
Gr5 (Ti-6Al-4V, Alpha-Beta): As the industry's workhorse alpha-beta alloy, Gr5 delivers the highest strength among the three grades, with typical annealed tensile strengths of 860–965 MPa. The 6% aluminum and 4% vanadium content stabilizes a duplex alpha-beta microstructure that enables heat treatment responsiveness-solution treatment and aging can elevate tensile strengths beyond 1,100 MPa. However, this strength comes with trade-offs: Gr5 exhibits lower formability, requiring hot forming for complex shapes, and commands a significant cost premium due to its alloying content and more demanding processing requirements. Gr5 dominates aerospace structural components, medical implants, and high-performance marine applications where strength-to-weight ratio is critical.
The selection among these grades follows a clear value proposition: Gr2 for corrosion-driven applications where moderate strength suffices; Gr9 for applications demanding higher strength than CP grades with complex geometries; and Gr5 for maximum strength where formability constraints and higher material cost are acceptable trade-offs.
2. Q: How does the cold formability and workability differ among Gr2, Gr9, and Gr5 titanium bars, and what implications do these differences hold for manufacturing processes?
A: Cold formability-the ability to undergo plastic deformation at room temperature without cracking or requiring intermediate annealing-varies dramatically across Gr2, Gr9, and Gr5, profoundly influencing manufacturing process selection and component cost structures.
Gr2 Cold Formability: Gr2 exhibits exceptional cold formability, attributable to its single-phase alpha microstructure and low interstitial content. The material can undergo significant reduction-typically 50–70% in cross-sectional area through cold drawing or cold rolling-before requiring stress-relief annealing. In bending operations, Gr2 bars can achieve tight bend radii of 1.5–2.5 times the bar diameter without cracking. This workability enables complex cold-headed fasteners, intricately formed brackets, and seamless tubing produced via cold pilgering. Manufacturers leverage this characteristic to minimize hot working operations, reducing energy costs and improving dimensional precision. The primary limitation is work hardening; while Gr2 work hardens at a moderate rate, progressive deformation requires intermediate annealing for multi-stage cold forming operations.
Gr9 Cold Formability: Gr9 occupies an intermediate position, offering significantly better formability than Gr5 while providing substantially higher strength than Gr2. With its near-alpha microstructure, Gr9 can be cold formed with reductions of 30–50% before annealing becomes necessary. This makes Gr9 particularly valuable for applications requiring moderate strength and complex geometries-aerospace hydraulic fittings, bicycle frame tubes, and automotive exhaust components are commonly produced from cold-formed Gr9 bar. The alloy's work hardening rate is more pronounced than Gr2 but substantially lower than Gr5, allowing for practical cold heading and swaging operations that would be infeasible with Gr5.
Gr5 Cold Formability: Gr5 is classified as having limited cold formability due to its duplex alpha-beta microstructure and higher strength. Cold reduction beyond 10–20% typically induces cracking or excessive residual stresses. For most forming operations-particularly those requiring significant deformation such as heading, bending, or swaging-Gr5 bars must be processed in the hot condition, typically at temperatures between 700°C and 900°C. This requirement has significant manufacturing implications: specialized heating equipment, controlled atmospheres to prevent alpha-case formation, and post-forming heat treatment to restore mechanical properties. The economic impact is substantial; a Gr5 component requiring hot forming may cost 3–5 times more to fabricate than an equivalent Gr2 component produced through cold forming.
Manufacturing Strategy: For engineers and fabricators, these formability distinctions drive a tiered manufacturing strategy: Gr2 is selected for high-volume cold-formed components; Gr9 for applications requiring higher strength than CP grades but where complex cold forming is advantageous; and Gr5 for components where maximum strength justifies the added complexity and cost of hot working operations.
3. Q: What are the critical welding considerations for Gr2, Gr9, and Gr5 titanium bars, and how do weldability differences influence fabrication decisions?
A: While all titanium grades are considered weldable, the practical considerations, required precautions, and post-weld treatment requirements differ substantially among Gr2, Gr9, and Gr5. Understanding these distinctions is essential for achieving sound, reliable welds in fabricated assemblies.
Common Requirements Across Grades: All titanium welding demands absolute protection from atmospheric contamination. Oxygen, nitrogen, and hydrogen absorbed during welding embrittle the weld zone, producing characteristic discoloration (straw to blue to white) that indicates compromised ductility. Gas tungsten arc welding (GTAW) is the predominant process, requiring primary argon shielding, trailing shields, and back-purging of the weld root. Welding must be performed in controlled environments or with meticulous shielding practices to maintain inert gas coverage until the weld zone cools below approximately 400°C.
Gr2 Welding: Gr2 offers the most forgiving welding characteristics among the three grades. It can be welded with matching ERTi-2 filler or, for non-critical applications, autogenously (without filler). The heat-affected zone (HAZ) retains adequate ductility in the as-welded condition, and post-weld heat treatment (PWHT) is generally not required for sections below approximately 12 mm thickness. This simplicity translates to lower fabrication costs and makes Gr2 the preferred choice for field welding applications, such as on-site piping installations and structural repairs.
Gr9 Welding: Gr9 exhibits good weldability, typically using ERTi-9 filler (matching composition). The near-alpha microstructure provides reasonable HAZ ductility, though careful heat input control is more important than for Gr2-excessive heat input can promote grain growth and reduce joint efficiency. For many applications, as-welded Gr9 joints are acceptable, though stress-relief annealing (650°C–700°C) is sometimes specified for components under high sustained loads or cyclic service. Gr9's weldability makes it popular for fabricated assemblies requiring higher strength than CP grades, such as aerospace hydraulic systems and high-performance bicycle frames.
Gr5 Welding: Gr5 welding requires the most rigorous controls and often mandates post-weld heat treatment. Key considerations include:
Filler metal selection: ERTi-5 (matching composition) for strength-matched joints; ERTi-2 for attachments where cracking risk must be minimized.
Heat input control: Precise management of interpass temperatures (typically <150°C) to prevent excessive beta grain growth in the HAZ.
Post-weld heat treatment: Stress-relief annealing at 650°C–700°C is standard for pressure-containing or fatigue-critical Gr5 welds to restore ductility and relieve residual stresses.
Inspection requirements: Gr5 welds typically require 100% radiographic or ultrasonic examination, whereas Gr2 and Gr9 may accept reduced inspection levels for non-critical applications.
Fabrication Economics: These differences have significant economic implications: a Gr5 weld requiring full PWHT, specialized shielding systems, and volumetric NDT can cost 4–6 times that of an equivalent Gr2 weld. Consequently, fabrication complexity often drives grade selection, with Gr2 and Gr9 preferred for weld-intensive assemblies and Gr5 reserved for applications where its strength justifies the additional fabrication investment.
4. Q: How do the corrosion resistance profiles of Gr2, Gr9, and Gr5 titanium bars compare in aggressive industrial environments, and what factors influence grade selection for corrosion-critical applications?
A: All titanium grades exhibit outstanding corrosion resistance due to the spontaneously forming, highly adherent titanium dioxide (TiO₂) passive film. However, nuanced differences in performance across Gr2, Gr9, and Gr5 become critically important in specific aggressive environments, influencing material selection for corrosion-critical applications.
General Corrosion Behavior: In oxidizing environments-including seawater, chlorides, nitric acid, and wet chlorine gas-all three grades demonstrate exceptional resistance. The passive film remains stable across pH ranges from 3 to 12 at temperatures up to the boiling point in many media. For the majority of marine and chemical processing applications, Gr2 is the default selection due to its cost-effectiveness and proven track record. Seawater piping systems, heat exchanger components, and chemical reactor vessels fabricated from Gr2 routinely achieve service lives exceeding 30 years with minimal corrosion allowance.
Stress Corrosion Cracking (SCC) Susceptibility: The most significant corrosion-related distinction among the grades relates to SCC susceptibility in specific environments:
Gr2: Highly resistant to SCC across virtually all environments, including seawater, chlorides, and most chemical media. This immunity makes Gr2 the preferred choice for applications involving sustained tensile stresses in aggressive environments.
Gr9: Demonstrates SCC resistance comparable to Gr2 in most environments, with no documented susceptibility in typical marine and chemical service conditions. Its intermediate strength does not introduce the SCC vulnerabilities associated with higher-strength grades.
Gr5: Exhibits SCC susceptibility in certain environments, particularly in red fuming nitric acid, methanol/halide combinations, and hot chloride solutions under specific conditions. This susceptibility is primarily observed in high-strength conditions (STA) and is mitigated in the annealed condition. For marine risers, offshore platforms, and other chloride-rich environments, Gr5 must be used with careful attention to stress levels and environmental conditions.
Crevice Corrosion: In high-temperature chloride environments (>70°C) where crevices exist-such as flange joints or threaded connections-all titanium grades perform well, though Gr2's slightly higher corrosion allowance in aggressive crevice conditions sometimes favors its selection over higher-strength grades.
Erosion-Corrosion: For applications involving high-velocity fluids or entrained solids-such as produced water lines, slurry handling, or high-flow seawater systems-Gr5's superior hardness (approximately 340 HV compared to 180–220 HV for Gr2) provides enhanced resistance to mechanical disruption of the passive film. Gr9 offers intermediate erosion resistance, with hardness values between 240–280 HV depending on processing.
Selection Framework: The grade selection for corrosion-critical applications follows a systematic framework:
Marine and chemical processing: Gr2 default; Gr9 selected when strength requirements exceed CP capabilities; Gr5 avoided in SCC-susceptible environments unless high strength is mandatory.
Offshore and subsea: Gr2 for piping and structures; Gr5 for high-strength components with rigorous SCC mitigation measures.
Aerospace and high-performance: Gr5 for structural components where corrosion resistance is required but strength drives selection; Gr9 for hydraulic systems where both corrosion resistance and formability are needed.
5. Q: What quality assurance and certification frameworks govern Gr2, Gr9, and Gr5 titanium bars for critical applications, and how do these frameworks vary by industry sector?
A: The quality assurance (QA) and certification requirements for titanium bars vary significantly by industry sector, with aerospace, medical, and industrial applications each imposing distinct testing protocols, documentation requirements, and regulatory oversight.
Aerospace Certification (AMS Specifications): Aerospace applications represent the most demanding certification environment for titanium bars. Key specifications include:
Gr2: AMS 4900 (commercially pure titanium)
Gr9: AMS 4913 (Ti-3Al-2.5V seamless tubing) and AMS 4943 (hydraulic tubing)
Gr5: AMS 4928 (annealed) and AMS 6931 (solution treated and aged)
Aerospace certification mandates:
Melting practice: Double or triple vacuum arc remelting (VAR) with full documentation of electrode and ingot traceability.
Ultrasonic testing: 100% inspection per AMS 2630 or ASTM E2375, with acceptance criteria requiring rejection of any indication exceeding 0.8 mm equivalent reflectivity.
Mechanical property verification: Tensile, creep, and fracture toughness testing from each heat lot, with sampling frequencies dictated by heat size and product form.
Hard alpha defect control: Stringent process controls to detect and eliminate oxygen-stabilized titanium inclusions that act as fatigue crack initiation sites.
Traceability: Individual bar-level traceability maintained from ingot through final component fabrication.
Medical Certification (ASTM F-Specifications): For surgical implant applications, titanium bars must comply with:
Gr2: ASTM F67 (unalloyed titanium for surgical implant applications)
Gr5: ASTM F1472 (wrought Ti6Al4V alloy for surgical implant applications)
Medical certification imposes:
Stricter composition limits: Particularly for oxygen, nitrogen, and hydrogen, which influence biocompatibility and fatigue performance.
Microstructural requirements: Uniform fine-grained structure with no continuous grain boundary alpha or excessive beta flecking.
Surface integrity: Post-machining passivation per ASTM F86 to restore the passive oxide layer.
Biocompatibility documentation: ISO 10993-1 compliance, including cytotoxicity, sensitization, and genotoxicity testing.
Regulatory oversight: Adherence to 21 CFR Part 820 (FDA Quality System Regulation) for Class III implant applications.
Industrial Certification (ASTM B348): For general industrial applications, ASTM B348 serves as the foundational specification for all three grades. This standard mandates:
Chemical analysis: Per ASTM E2371 with grade-specific composition limits.
Tensile properties: Verification from each heat lot with minimum requirements by grade.
Hydrostatic testing: For tubular products; bar products require ultrasonic or eddy current testing based on criticality.
Optional supplementary requirements: Including ultrasonic testing, elevated temperature testing, and customized dimensional tolerances.
Cross-Sector Common Requirements: Regardless of industry sector, all critical applications demand:
Certified mill test reports (MTRs): Documenting heat numbers, chemical analysis, mechanical properties, and NDT results.
Full material traceability: From raw material through finished product.
Third-party inspection: Often required for offshore, nuclear, and international projects.
The cumulative effect of these QA frameworks is that titanium bars destined for aerospace or medical applications command significant premiums-often 2–3 times the price of industrial-grade material-reflecting the extensive testing, documentation, and process controls required to certify each heat for these critical-service applications.
