Molybdenum Alloy
Your Professional Molybdenum Alloy Supplier
GNEE is a professional manufacturer and supplier of super stainless steel, duplex stainless steel, and super nickel alloy materials. Established in 2008, the company has a plant area of more than 35,000 square meters. With over 18 years of experience in supplying products to end users across various industries, GNEE achieves annual sales of approximately USD 600 million.
Our Offerings
GNEE provides a wide range of nickel-based alloy products, including plates, coils, tubes, bars, and fittings. Our products are made from premium materials and are designed to meet the highest standards of performance and durability. We also offer custom manufacturing services, allowing us to tailor our products to meet specific customer requirements.
GNEE Transport Packaging
Our standard export packaging is seaworthy, using waterproof paper and steel strapping, suitable for all types of transportation. Packaging can also be customized according to your requirements. Each package is securely supported and reinforced to ensure safe delivery.
Sales Market
Our products are exported to more than 20 countries, including Canada, Argentina, Spain, Brazil, Pakistan, South Korea, the UAE, Saudi Arabia, India, and others.
Specification
|

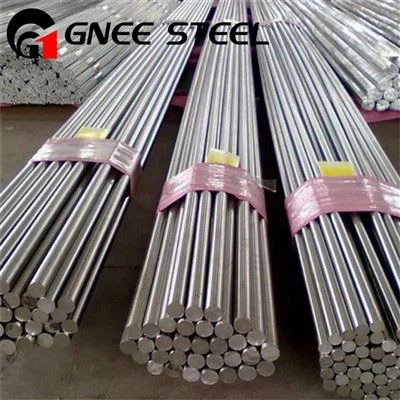

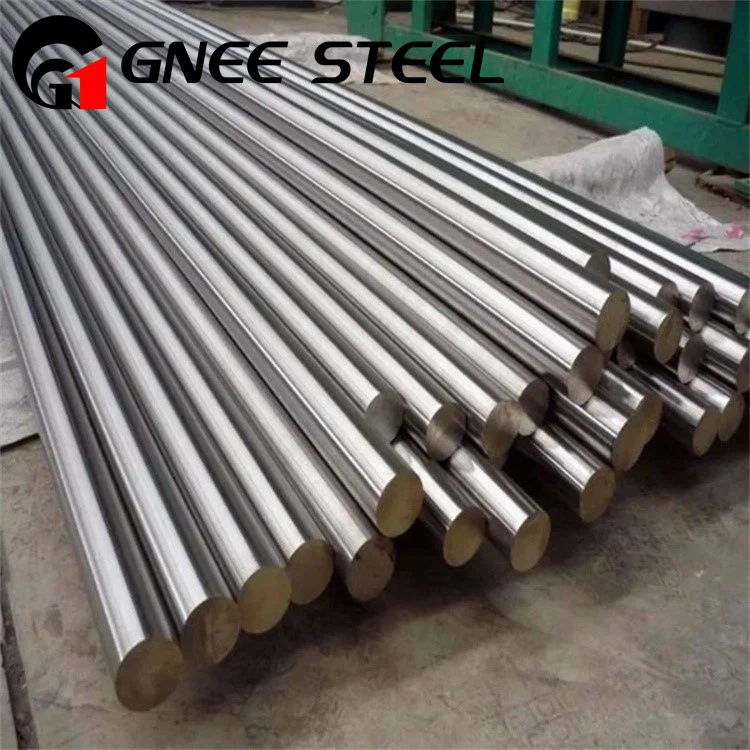

Name |
Molybdenum Rod |
|||
|
Material |
Pure Molybdenum: Mo≥99.95% TZM molybdenum alloy: C:0.014%, Ti:0.65%, Zr: 0.071% Molybdenum Lanthanum alloy: Mo≥99.27%, La=0.62% |
|||
|
Specifications |
Dia. (2-500) mm * L (10-3000) mm |
|||
|
Max. temp |
1800 ℃ |
|||
|
Working temp |
0-1700 ℃ |
|||
|
Purity |
≥99.95% |
|||
|
Density |
≥10.2g/cm3 |
|||
|
Surface |
Black, alkaline cleaning, polished surface and machine surface. |
|||
|
Application |
1) Used for glass industry, the fields of rare earth industry, refractory fiber industry and so on. 2) Used as vacuum material, cathode for emitting tube, and high temperature electrodes etc. |
|||
|
Dimensions |
Diameter |
Diameter tolerance |
Length |
|
|
Polished surface |
Black/Alkaline cleaning surface |
|||
|
<10 |
±0.05 |
±0.2 |
3000 |
|
|
10-30 |
±0.05 |
±0.2 |
2000 |
|
|
30-60 |
±0.05 |
±0.2 |
1500 |
|
|
60-100 |
±0.05 |
±0.2 |
1000 |
|
|
100-200 |
±0.05 |
±0.2 |
600 |
|
|
>200 |
±0.05 |
±0.2 |
According to your requirements |
|
Features
High melting point
The melting point of molybdenum reaches 2620 degrees Celsius, which is one of the high melting point metals
High density
The density of molybdenum is 10.2 g/cubic centimeter, which is one of the highest density materials in common metals
Excellent mechanical properties
Molybdenum has good strength, hardness and wear resistance, but also has a certain toughness and ductility
High temperature resistance
Molybdenum shows good stability and corrosion resistance in high temperature environment
Electronics industry: Molybdenum rods are used to manufacture electronic devices, semiconductor materials, vacuum tubes and so on
Glass and ceramic industry: Molybdenum rods are used as support and heating elements for glass kilns
Optical industry: Molybdenum rod is used for optical instruments, lens supports, etc
Chemical and aviation fields: Molybdenum rod has corrosion resistance and high temperature stability, used in the manufacture of corrosion resistant equipment, aircraft engine parts and so on
Packing & Delivery
Molybdenum rod / molybdenum bar / molybdenum cylinder /molybdenum ingot/molybdenum alloy rod / molybdenum alloy bar / tzm bar.
Packaging

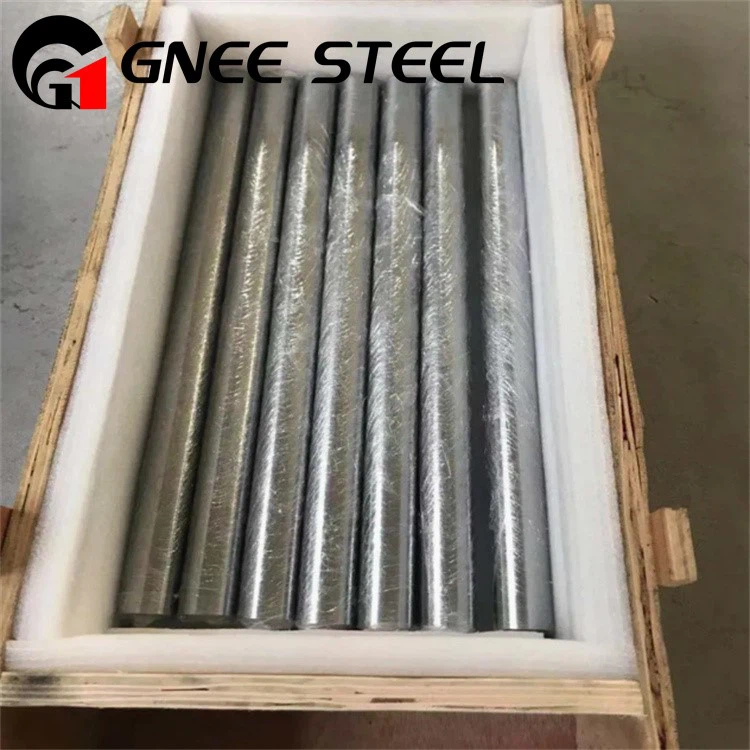

Packing Details: Plastic bags and kraft paper as inside, wooden case as outside.
Delivery Details: 2-15 workdays after order of pure molybdeum sheet, plate, foil, strip, cube and block.
