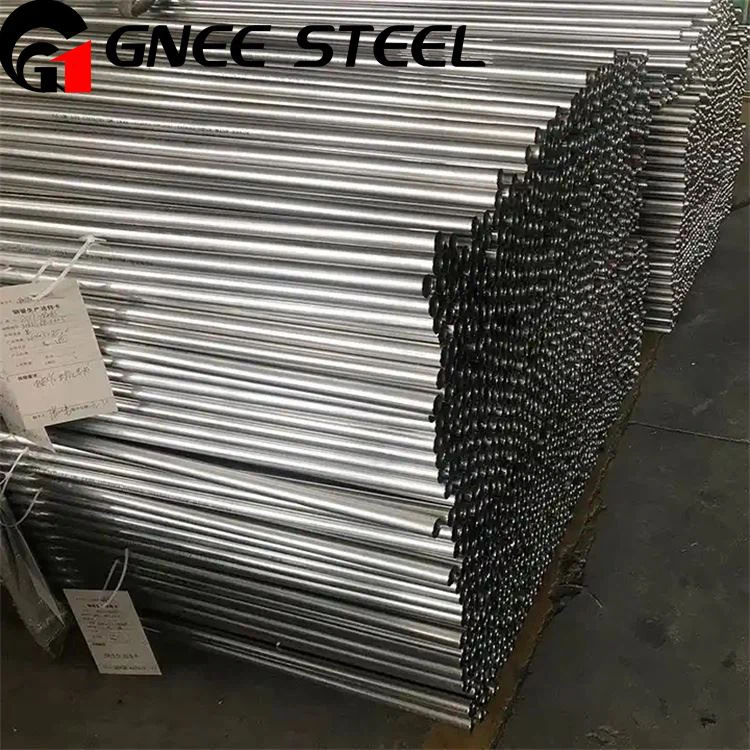

GH3030 Alloy
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Alloy GH3030: Key Global Export Markets and Industry Segments
| Region / Market | Key Requirements & Characteristics |
|---|---|
| Russia & CIS Countries (Largest demand market for GH3030) | Must comply with XH78T (ЭИ435) standard; predominantly large‑volume framework orders; dual‑use export documentation required; VIM+ESR aviation‑grade process preferred |
| India & Pakistan | Mix of small trial orders and annual bulk contracts; price‑sensitive; primary demand for industrial‑grade VIM sheets/pipes |
| Middle East (UAE / Saudi Arabia / Iran) | MRO (Maintenance, Repair & Operations) emergency stock for petrochemical furnace equipment; mandatory 3.2 third‑party material test certificates (MTC) |
| Southeast Asia (Vietnam / Thailand) | Serving local furnace processing factories; low MOQ (Minimum Order Quantity) requirements; strong focus on rapid delivery |
| Western Europe (Germany / France) | Thin BA (Bright Annealed) sheets for semiconductor applications; strict SGS/TUV witness inspection required for each batch |
Contact us to create a tailored solution for your project
Nickel GH3030 Superalloy Description
GH3030 is a solid-solution strengthened high-temperature alloy primarily composed of nickel (Ni) and chromium (Cr), with a simple chemical composition. Its typical composition is 80% nickel and 20% chromium. This alloy exhibits good thermal strength and high ductility below 800°C, along with excellent oxidation resistance, thermal fatigue resistance, cold stamping performance, and weldability.
After solution treatment, GH3030 has a single-phase austenitic structure, which remains stable during use. The main applications of this alloy include turbine engine combustion chamber components, high-temperature vessels, structural components, and thermocouple protection tubes. Due to its ability to operate stably for extended periods in high-temperature environments, it is also widely used in aerospace, petroleum, chemical, and nuclear industries.

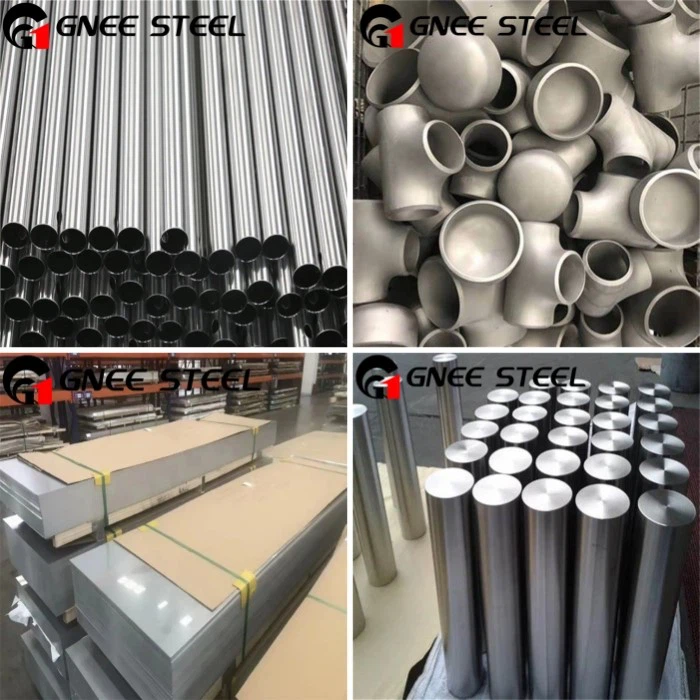

GH3030 alloy Production Forms
| Product | Condition |
|---|---|

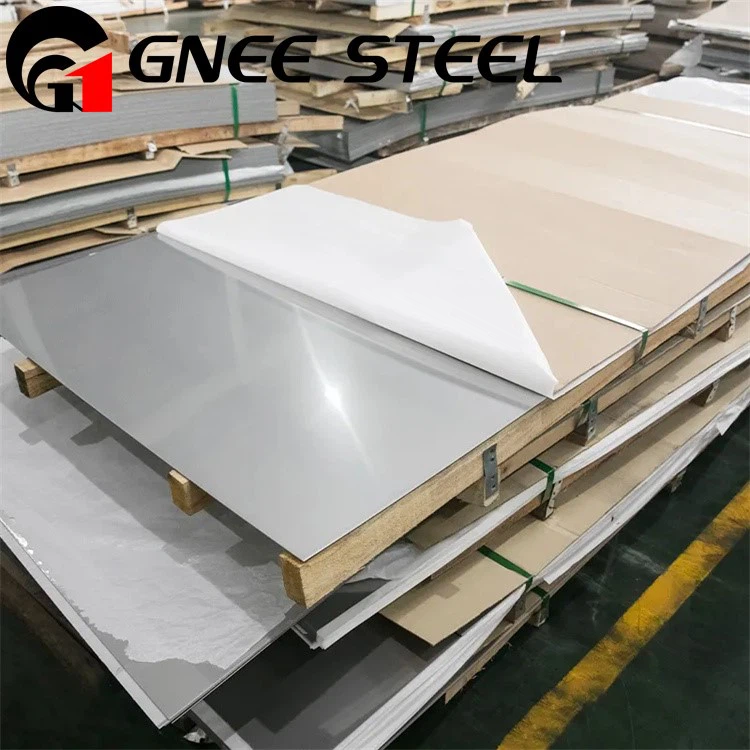

| Sheet | hot or cold rolled, bright/solution annealed, pickled or de-scaled |

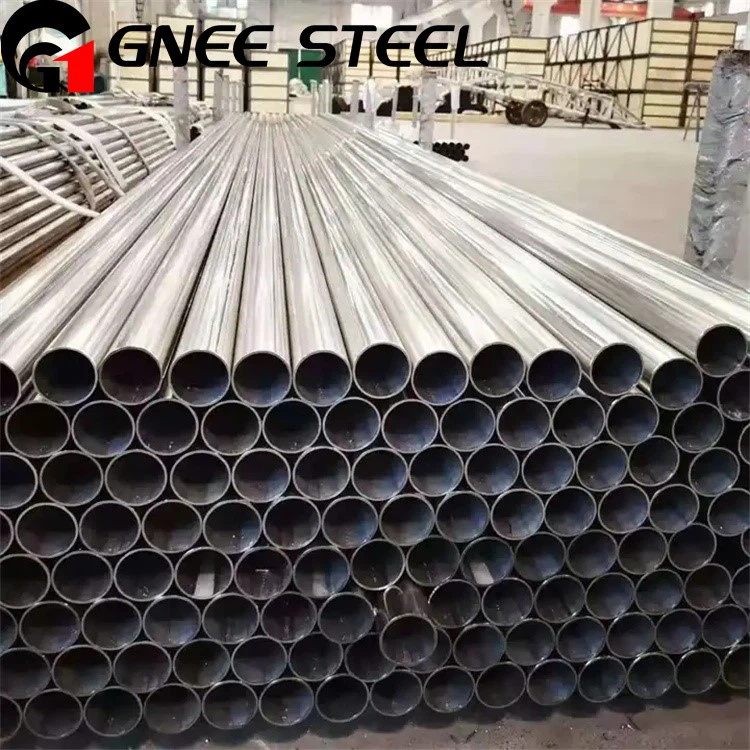

| Pipe | longitudinally welded or seamless, solution annealed, pickled or de-scaled |

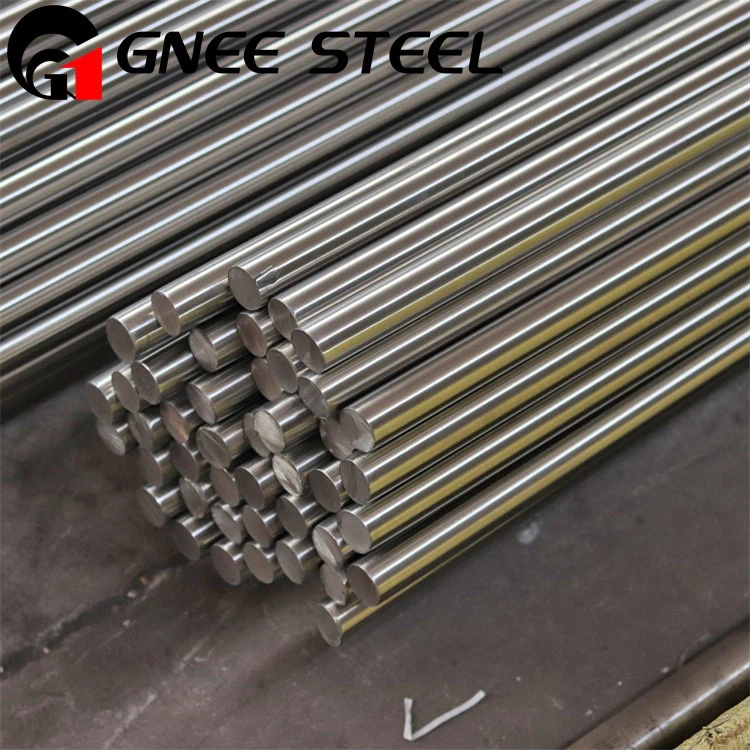

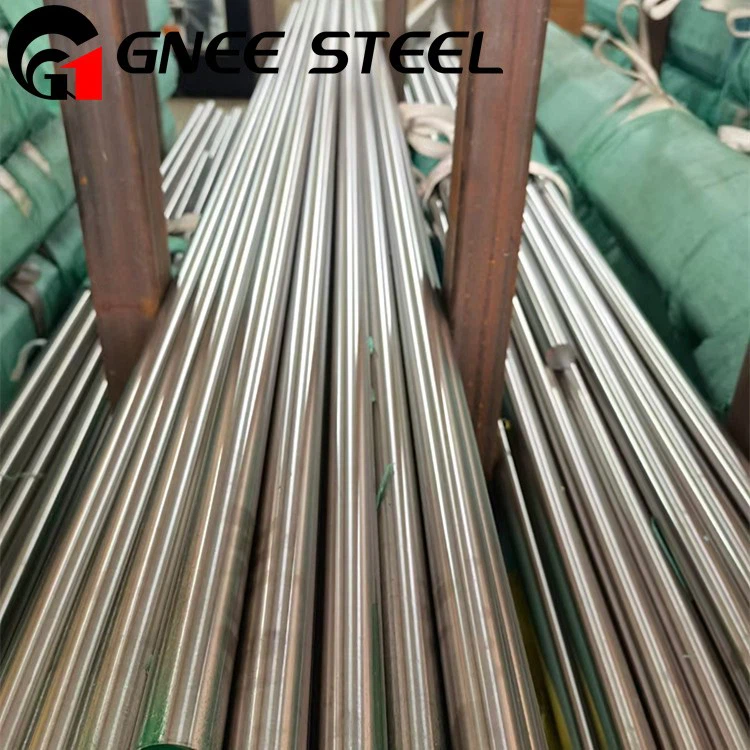

| Bar | hot rolled or forged, solution annealed, pickled or de-scaled |
GH3030 alloy Production Standard
| Alloy | Seamless Pipe and Tube | Plate, Sheet | ||
|---|---|---|---|---|
| GH3030 | GJB 1952, GJB 3317, GJB 3318 | GJB 2611, GJB 2612, GJB 3165, GJB 3167 |
GH3030 High-Temperature Alloy specifications
Chemical composition of GH3030 alloy(%)
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| C | 0.12 | |
| Cr | 19 | 22 |
| Ni | Remainder | |
| Ti | 0.15 | |
| Fe | 1.5 | |
| Co | 0.5 | |
| Mn | 0.8 | |
| Si | 1 | |
| Mo | 0.5 | 2 |
| Cu | 0.5 | |
| W | 0.08 | |
| P | 0.04 | |
| S | 0.04 | |
| Al | 0.15 |
Physical properties of GH3030 alloy
| Property | Value |
|---|---|
| Density (g/cm³) | 8.4 |
| Melting Range (°C) | 1374-1420 |
Mechanical properties of GH3030 alloy (Solution State: 980~1020℃ Air Cool)
| Test Temperature | Min Tensile Rm (MPa) | Min Yield Rp0.2 (MPa) | Min Elongation A | Matching Application |
|---|---|---|---|---|
| Room Temp | ≥685 | ≥295 | ≥30 | Cold stamping thin blanks, fastener raw material |
| 700℃ Long Service | ≥330 | ≥150 | ≥38 | Furnace lining, heat exchanger plates |
| 80℃ Continuous Max Temp | ≥240 | ≥110 | ≥45 | Aero engine low-temp combustion parts |
GH3030 VS GH3039 VS GH3044 Selection Guide
| Alloy | Max Long Temp | Core Feature | Unit Cost Level | Best Suitable Project |
|---|---|---|---|---|
| GH3030 | ≤800℃ | Highest ductility, easiest stamping/welding | Lowest | Static low-load furnace, chemical thin-wall parts |
| GH3039 | ≤850℃ | Better thermal cycle fatigue | Medium | Recurring heating gas turbine baffles |
| GH3044 | ≤900~1100℃ | Ultra high anti-oxidation, high W content | Highest | Ultra high temp static combustion liners |
Key Procurement Recommendation: For applications involving stable operating temperatures below 800°C and the mass stamping of thin-walled parts, GH3030 offers the best cost-performance ratio, with material costs 15%–22% lower than those of GH3044.
Contact our experts to recommend the right alloy for your project
Nickel GH3030 Superalloy Pipe Application
GH3030 is a high-performance nickel-based superalloy primarily known for its excellent high-temperature strength and oxidation resistance. Below is a structured overview of its application areas:
1. Aerospace Industry
Engine Components: GH3030 is used in the manufacture of critical engine components exposed to high temperatures and requiring exceptional strength and corrosion resistance.
Turbine Blades: Its ability to maintain mechanical integrity at high temperatures makes it an ideal material for jet engine turbine blades.
2. Industrial Applications
Heat Treatment Equipment: GH3030's high-temperature resistance makes it highly suitable for components in industrial furnaces and ovens where structural stability at high temperatures is crucial.
Chemical Processing: Due to its excellent oxidation and corrosion resistance, this alloy is used in reactors and vessels in the chemical processing industry.
3. Power Generation
Boiler Components: GH3030 is suitable for boiler components operating under high temperature and pressure, ensuring their lifespan and reliability.
4. Oil and Gas Industry
Piping and Valves: In the oil and gas exploration and processing sector, GH3030 is used in pipes, valves, and other components that need to withstand high temperatures and corrosive substances.
GH3030's superior performance makes it a critical material in applications requiring high strength, durability, and resistance to heat and corrosive environments. This makes it an indispensable material in advanced engineering applications across various critical industries.

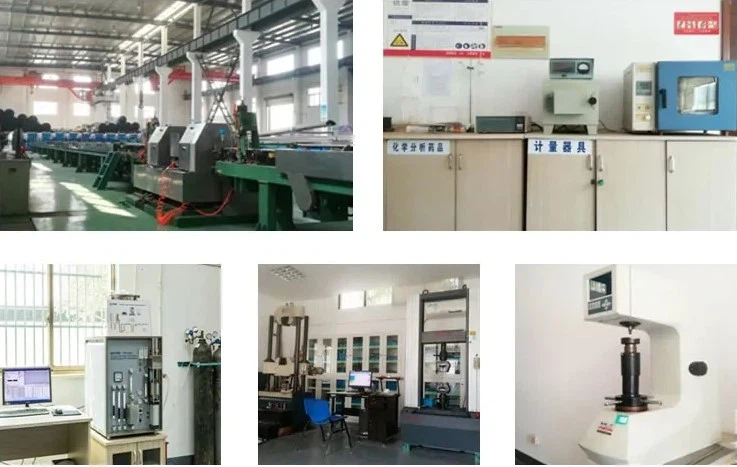

GH3030 Alloy Testing
GH3030 Alloy Testing

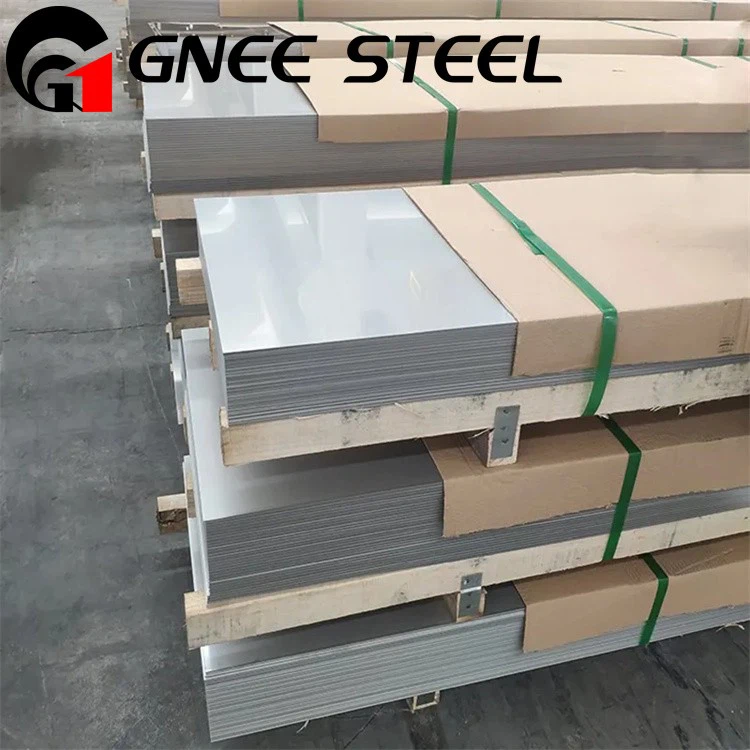

Packaging and factory environment of GH3030 alloy
Packaging and factory environment of GH3030 alloy
Gnee Alloy GH3030: Factory Capabilities
Established in 2008, with over 18 years of experience exporting superalloys and a 35,000 m² integrated production facility
| Complete In‑House Production Lines | Equipped with American VIM furnace, German VAR furnace, 2800mm four‑high rolling mill, and full vacuum annealing equipment |
| Well‑Equipped Testing Laboratory | Equipped with spectrometers, high‑temperature tensile testing machines, UT/ET/LPI non‑destructive testing equipment, and oxidation resistance test furnaces |
| Full Certifications | ISO9001, ISO14001, ISO45001, SGS, and German TUV Rheinland certified |
| Global Export Capability | Annual export volume: 80,000 tons; Products exported to over 160 countries; Professional team of 200+ members |
| Flexible Ordering Services | No strict MOQ (Minimum Order Quantity) for trial orders; Exclusive price discounts for long‑term framework contracts |
Gnee Alloy GH3030 certificate
About Gnee Alloy
Quick Inquiry Guide for GH3030 Alloy Products
Please provide the following information to receive an accurate quote within one hour:
Required product form: Bar / Plate / Seamless pipe
Specific dimensions, thickness, width, and surface finish requirements
Operating temperature and application area (Aerospace / Industrial furnaces / Petrochemical / Nuclear energy)
Order type: Small-batch trial / Annual framework agreement / Urgent MRO (Maintenance, Repair, and Operations) procurement
Destination country and certification requirements (3.1 Material Certificate / 3.2 SGS Certification / Dual-use item license / Russian XH78T compliance certificate)
Free laboratory samples (courier costs borne by the customer)
Receive the GH3030 technical datasheet and comparison report immediately after submitting your inquiry
Square Meters Built
Enterprise Employees
Partner countries
Years Experience
FAQ
Q1: What is GH3030 equivalent grade & its maximum service temperature?
A: GH3030 equivalent to Nimonic 75 (UNS N06075) and Russian XH78T ЭИ435. Long-term stable working temp ≤800℃, short peak 830℃. It is single solid-solution alloy, only single solution heat treatment needed, no aging required, with the best cold forming ductility among GH30 series alloys, low cost for low-load medium-temperature static parts.
Q2: What three finished products can you supply? What sizes are in stock?
A: 1. GH3030 Round Bar Φ10~500mm, black/peeled/ground surface 2. GH30 Sheet 0.05~12mm, width 1000/1219/1500, 2B/BA/No.1/sand blast 3. GH3030 Seamless Tube OD10~320, wall 0.5~25mm We support laser cutting, fixed-length cutting, tube flanging customization.
Q3: What's the difference between VIM single melting and VIM+ESR double melting GH3030?
A: 1. Single VIM industrial grade: For ordinary furnace, chemical equipment, basic UT inspection, lower price 2. VIM+ESR aviation/nuclear grade: Eliminate segregation & low-melting impurities, 100% UT+MT+LPI Class A NDT, full dual-use export documents, mandatory for aerospace & nuclear tender projects.
Q4: Which sheet surface is most popular for global bulk orders?
A: 2B annealed pickled matte finish accounts for 70% export bulk orders, balance cost, stamping and weldability, ideal for furnace liners and engine low-temp thin parts. BA bright sheet for semiconductor ultra-clean equipment.
Q5: What impurity limits do you control to avoid customer stamping & welding failure?
A: Strictly control S≤0.010%, P≤0.012%, Fe≤1.2%, far stricter than GB standard S/P≤0.04. Low impurity eliminates welding hot crack and sheet cracking during mass stamping.
Q6 What mechanical & oxidation test data can be attached to MTC certificate?
A: Full room & 700/800℃ tensile test data, metallographic report, 800℃ oxidation weight gain test, full NDT flaw record for each batch.
Q7 Main global industries & core GH3030 end parts?
Aerospace: Low-temperature combustion liners, engine support brackets, lightweight fasteners
Industrial Furnace: Integral furnace lining, radiant tubes, heat treatment fixtures
Petrochemical: High-temperature reactor liners, anti-oxidation pipeline supports
Nuclear Energy: Medium-temperature structural small components
Semiconductor: Diffusion furnace thin shielding sheets
Q8 What certification documents can you provide for export customs & factory audit?
Free 3.1 EN1020 factory MTC; optional SGS/TUV 3.2 third-party witnessed report; CO certificate, commercial invoice, dual-use material export license for aerospace/nuclear shipments, Russian XH78T conformity certificate for CIS market. All test data stored for 10 years.
Q9 MOQ & sample policy? Delivery cycle?
Free small test samples (customer cover freight). No strict MOQ for trial orders (5kg+ acceptable). Standard stock bar/sheet/tube deliver 7-15 working days; custom processing 15-25 days; VIM+ESR customized ingots 30-45 days.
Q10 Standard GH3030 heat treatment process? Need aging?
Only single solution annealing required: 980~1020℃ holding, air cooling. No aging heat treatment needed, different from GH4145/GH4169 precipitation alloys.
Q11 Suitable welding processes for GH3030?
TIG, MIG, resistance spot welding all applicable, low hot crack risk due to ultra-low S/P content. Low heat input during welding, post stress relief annealing at 950~1000℃ recommended for thin-wall components.
Q12 What export packaging do you use for sea shipment?
Bar: Anti-rust oil + waterproof film + steel strap wooden pallet Sheet: Anti-rust paper + double waterproof film sealed fumigated wooden case Tube: Both ends plastic caps, internal & external anti-rust oil, individual wooden box We take full container loading photos before shipment and provide real-time logistics tracking.
Gnee Steel also supplies custom GH3030 products in various sizes and specifications. Please send us your drawings for a quote!
