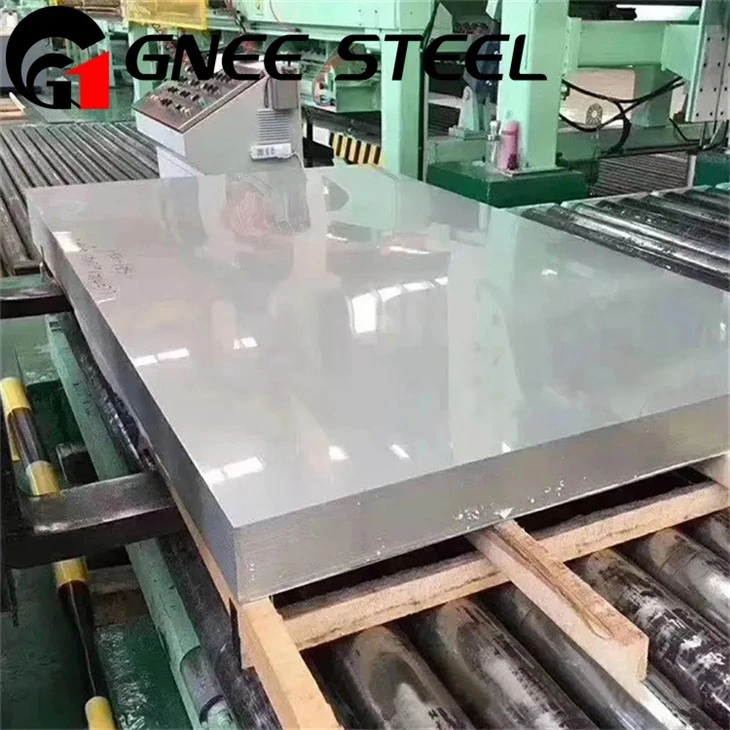

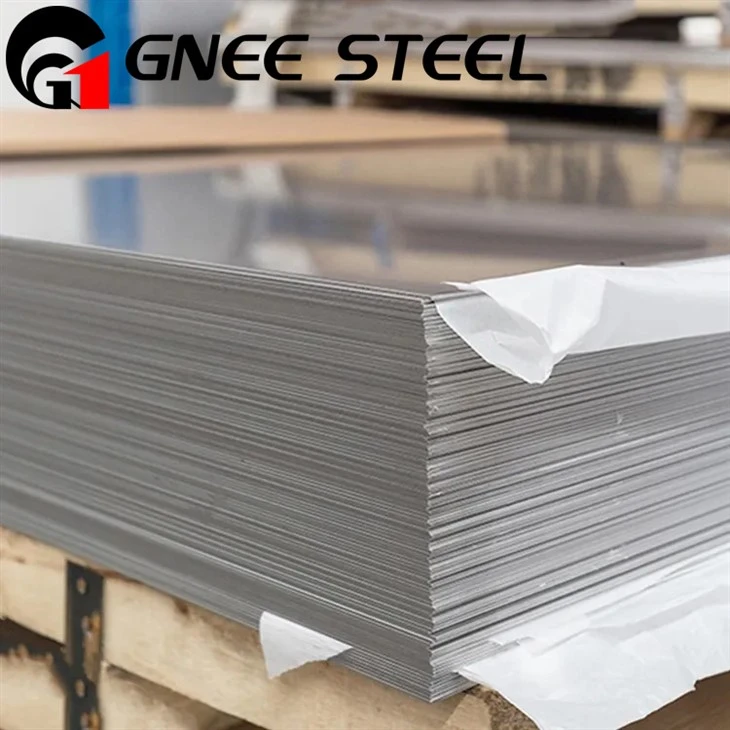

GH2132 High-temperature Alloy Plate For Aircraft Blades

GH2132, also known as Inconel 713C, is a high-temperature alloy typically supplied in various forms, including plates and sheets. The properties of GH2132 plates and sheets are similar to those of the GH2132 tubing mentioned earlier, exhibiting excellent high-temperature strength, oxidation resistance, and creep resistance.



High-Temperature Strength: GH2132 plates and sheets maintain their strength and mechanical properties even at high temperatures, making them suitable for applications requiring resistance to thermal stress.



Oxidation Resistance: GH2132 possesses excellent oxidation and corrosion resistance, which is crucial in high-temperature environments where it is frequently exposed to gases and combustion products.



GH2132 Production Execution Standards

Standard Type	Chemical Composition	Bar Stock	Forging	Plate/Sheet	Wire	Pipe/Tube
National Standard (China)	GB/T 14992	GB/T 14994 GB/T 14993	GB/T 14997 GB/T 14998	GB/T 14995 GB/T 14996	-	GB/T 15062
Aviation Industry Standards	-	HB 5189	-	-	-	-
Military Standards (China)	-	GJB 2611 GJB 3165	GJB 3020 GJB 3782	-	GJB 2612 GJB 3167	-





Grade	GH2132
Standard	ASTM B463 / ASME SB463
Thickness	0.1mm To 100 mm
Size	1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Applications	Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry





GH2132 - UNS S66286 High Temperature Alloy Chemical Composition

Cr	Ni	Mo	Co	Va	Al	Ti	B	C	Fe	Mn	Si	P	S
Min	13.5	24	1	–	0.1	–	1.9	0.003	–	–	–	–	–	–
Max	16	27	1.5	1	0.5	0.35	2.35	0.01	0.08	Balance	2	1	0.025	0.025



GH2132 - UNS S66286 High Temperature Alloy Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
GH2132/ A-286	1.4980	S66286	–	–	–	–	–	–



GH2132 - UNS S66286 High Temperature Alloy Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1430 °C (2600 °F)	550-1300Mpa	350-750Mpa2	25%





The GH2132 is specifically designed for high-temperature bearing components in aero engines, suitable for components operating at medium to high temperatures (below 650°C - 700°C):

Rotors and turbine blades

Turbine disks and compressor disks

Fasteners and structural components

Afterburner components



Gnee Steel provides the following heat treatments for High-temperature GH2132 alloy tubing for aero engines: annealing, solution + aging. In addition, Gnee Steel also provides hot working and cold working, which are hot rolling and cold drawing.





1. Packaging is crucial, especially in international shipping, where goods undergo multiple stages to reach their final destination; therefore, we place great emphasis on packaging.

2. Gnee Steel employs various packaging methods depending on the product. For example, we use multiple packaging methods...
