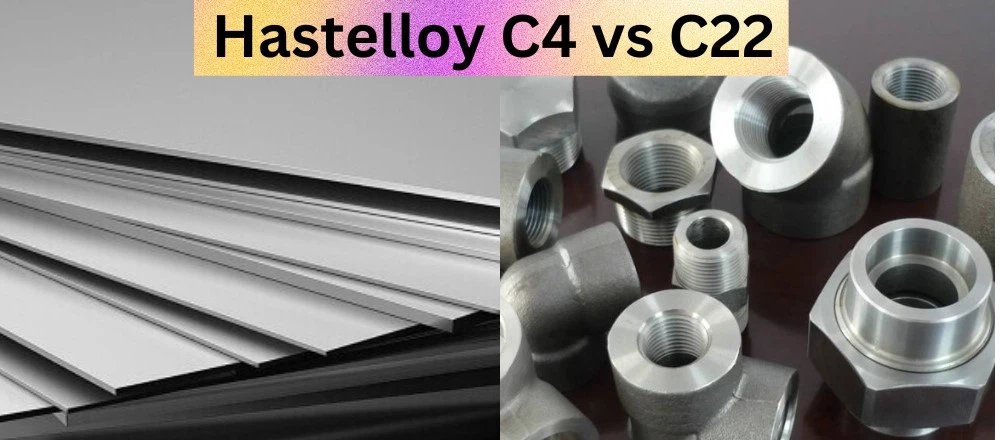

Hastelloy C4 and C22 Alloy
What is the difference between Hastelloy C4 and C22?
The main difference between Hastelloy C4 and C22 is their corrosion resistance properties and application areas. Hastelloy C4 performs well in specific sour environments and has good mechanical properties for a variety of industrial applications.
What is Hastelloy C4?
Hastelloy C-4 is a nickel-chromium-molybdenum alloy with excellent high temperature stability. It has high ductility and corrosion resistance. Its high temperature resistance up to 1900 °F (1038 °C) makes it suitable for most chemical process applications in the welded state.
What is the temperature limit for Hastelloy C22?
Alloy C-22 should not be used at service temperatures above 1250°F because deleterious phases will form above this temperature.
What is the tensile strength of Hastelloy C22?
According to the manufacturer, typical tensile properties of solution heat treated Hastelloy C-22 sheet (0.71-3.2 mm): At 20°C: Yield strength: 407 MPa. Tensile strength: 800 MPa.
Difference Between Hastelloy C4 and C22
Chemical Composition
The chemical composition of Hastelloy C4 is 65% nickel, 16% chromium, 16% molybdenum and 2% iron. Whereas the chemical composition of Hastelloy C22 is 56% nickel, 22% chromium, 13% molybdenum and 3% tungsten, with small amounts of iron, cobalt and manganese. This difference in composition determines their resistance to various corrosive media, including sulfuric acid, hydrochloric acid and acetic acid. Due to the addition of tungsten, Hastelloy C22 is more resistant to these media than Hastelloy C4.
Temperature Resistance
Hastelloy C4 has a high temperature limit of 1900°F (1038°C), while Hastelloy C22 has a high temperature limit of 2200°F (1204°C). Therefore, if your industrial application needs to withstand extreme temperatures, C22 is a better choice.

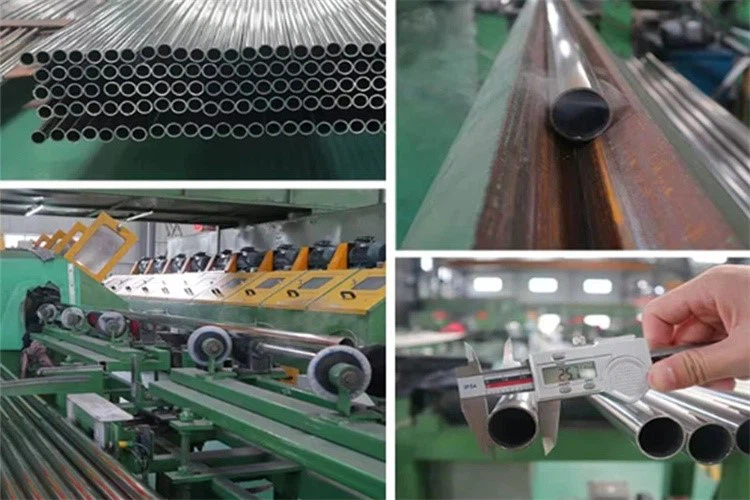

Gnee Steel is a supplier of Hastelloy C4 And C22 Alloy, covering tubes: Seamless tubes: Size: 4 - 219 mm; Thickness: 0.5 - 20 mm; Welded tubes: Size: 5.0 - 1219.2 mm; Thickness: 0.5 - 20 mm, Plates: Plate thickness 0.1 to 100 mm; Plate width 10-2500 mm, Strips, Alloy round bar sizes: diameter 3-800 mm;, Flat bar sizes: thickness 2-100 mm; Width: 10-500 mm, Hexagonal bar sizes: 2-100 mm;, Wire and extruded profiles. We work with steel mills to provide customers with 625 alloy, and its products meet or exceed many leading industry standards, including ASTM, ASME, SAE, AMS, ISO, DIN, EN and BS standards.
Gnee Steel stocks and sells Hastelloy C4 And C22 Alloy, Tubes, Pipes, Plates, Strips, Plates, Round Bars, Flat Bars, Forged Billets, Hexagons, Wires and Extruded Profiles. Feel free to contact us for a quote at ss@gneesteel.com
