Inconel 625 Polished Cold Drawn Plate Property Information Encyclopedia
Inconel 625 plate is a high-temperature alloy known for its high strength, excellent corrosion resistance (particularly to chloride, pitting, and crevice corrosion), and good fatigue strength over a wide temperature range. Cold-drawn, polished steel plate offers improved surface finish and dimensional accuracy compared to hot-rolled products. Key properties include a density of approximately 8.44 g/cm³, a melting range of 1290–1350°C, an elastic modulus of approximately 207.5 GPa, and high tensile strength.

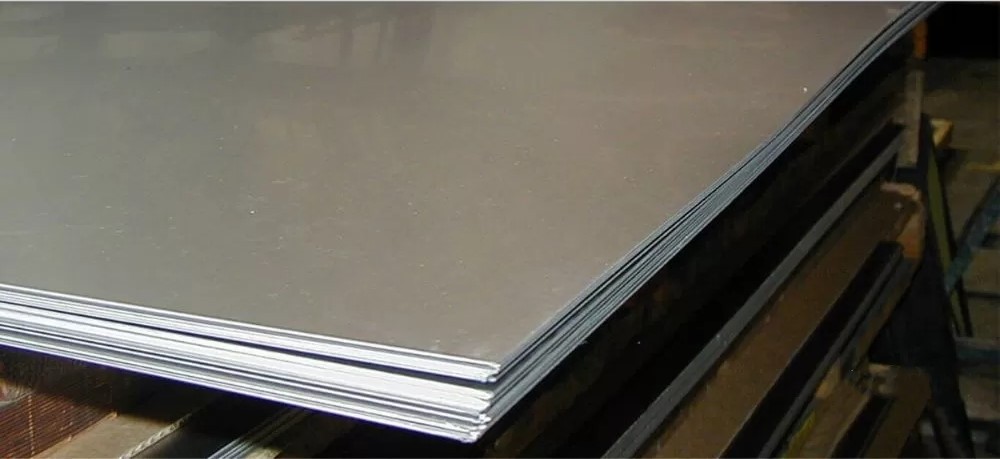

What is Inconel 625 plate?
Inconel alloy 625 (UNS number N06625) is a nickel-based superalloy with high strength and high-temperature resistance. It also offers excellent corrosion and oxidation resistance.
Specification List of Inconel 625 Sheet / Plate
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
Inconel 625 Cold Rolled Sheets Chemical Composition
| Grade | C | Mn | Si | P | S | Ni | Cr | Fe | Mo | Co | Al | Ti | Nb + Ta |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.015 max | 58.0 min | 20.0 – 23.0 | 5.0 max | 8.0 – 10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15 – 4.15 |
Alloy 625 Polished Cold Drawn Plates Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 135,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Inconel 625 Plate Typical Properties (Plate)
Density: 8.44 g/cm³
Melting Range: 1290–1350°C
Elastic Modulus: ~207.5 GPa
Tensile Strength (Room Temperature): 827–1034 MPa
0.2% Yield Strength (Room Temperature): 414–655 MPa
Elongation (Room Temperature): 30–60%
Advantages of Cold-Drawn Plate
Surface Finish: Polished cold-drawn plate produces a smoother, brighter surface finish compared to hot-rolled plate.
Dimensional Accuracy: Cold drawing improves dimensional tolerances and produces more precise shapes.
Strength: Cold drawing also increases the material's yield strength and hardness.
Applications
Due to its unique properties, Inconel 625 alloy plate is widely used in harsh environments across numerous industries, including:
Aerospace
Marine and seawater applications
Chemical processing
Nuclear power
Oil and gas extraction and refining
Waste-to-energy plants
Gnee Steel specializes in the production and sale of various nickel-based alloys, including Nickel 201, Nickel 202, Hastelloy C-276, Hastelloy C-22, Hastelloy B, Hastelloy C-4, Inconel Alloy 600, Inconel 625, Inconel 718, Inconel X-750, Incoloy Alloy 800, Incoloy 800H/HT, Incoloy 825, Monel Alloy 400, Monel K500, and high-temperature alloys. Gnee Steel's products are widely used in aerospace, chemical, electric power, automotive, and nuclear energy applications, and we can provide customized alloy solutions tailored to customer needs. For alloy pricing inquiries or customized alloy solutions, please contact us for a quote at ss@gneemetal.com.
