1. The Foundation: What are Nickel Alloy Pipes, and Why are They Chosen Over Standard Stainless Steels?

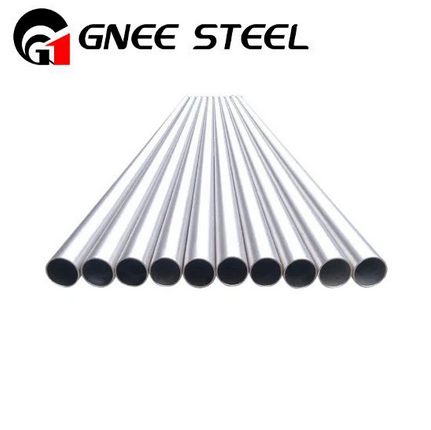

Nickel alloy pipes are tubular components manufactured from metals where nickel is the primary element (typically exceeding 50% by weight). They are engineered to overcome the limitations of standard stainless steels (like 304 or 316) in extremely demanding environments. The choice to use a nickel alloy pipe is fundamentally driven by the need for enhanced performance in one or more of the following areas:
Corrosion Resistance: This is the most common reason. While stainless steels rely on a passive chromium oxide layer for protection, which can break down in harsh conditions (e.g., chlorides), nickel alloys offer superior resistance. They excel in:
Reducing Environments: Such as hydrochloric acid, sulfuric acid, and phosphoric acid, where stainless steels perform poorly.
Localized Corrosion: They are highly resistant to pitting and crevice corrosion, especially in chloride-containing environments like seawater and chemical process streams.
Oxidizing Environments: Certain nickel-chromium alloys (like Alloy 625) form a stable oxide layer even in highly oxidizing conditions.
High-Temperature Strength: Nickel alloys retain their mechanical strength at temperatures where carbon and stainless steels would weaken significantly (creep strength). This is crucial for applications in furnaces, heat treatment equipment, and power generation turbines.
Low-Temperature Toughness: Many nickel alloys, particularly commercially pure nickel like UNS N02200, remain ductile and tough at cryogenic temperatures, preventing brittle fracture in applications like LNG processing.
Specialized Properties: Some alloys are designed for specific resistances, such as against corrosion in caustic environments (e.g., Nickel 200) or against wet corrosion (e.g., Hastelloy alloys).
In essence, nickel alloy pipes are a premium solution selected when the operational conditions are too aggressive, too hot, or too critical for standard materials, ensuring long-term reliability and safety despite a higher initial cost.
2. Can You Compare the Key Characteristics and Applications of Popular Nickel Alloy Pipes like Alloy 625, Alloy C-276, and Alloy 825?
Understanding the differences between common nickel alloys is key to proper material selection. Each is optimized for a specific set of challenges.
| Alloy / Common Name | Key Alloying Elements | Primary Characteristics | Typical Pipe Applications |
|---|---|---|---|
| Alloy 625 (UNS N06625) | Nickel-Chromium with Niobium | Excellent Fatigue & Vibration Resistance. High strength over a wide temperature range (-450°F to 1200°F). Outstanding resistance to pitting and crevice corrosion. Good oxidation resistance. | Aerospace: Engine exhaust systems, thrust-reverser systems. Marine: Seawater pipes, propeller blades. Chemical Processing: High-strength components in aggressive environments. |
| Hastelloy C-276 (UNS N10276) | Nickel-Chromium-Molybdenum with Tungsten | Versatile Corrosion Resistance. The "workhorse" for the most severe corrosive conditions, particularly against reducing acids like HCl and H₂SO₄. Exceptionally resistant to chloride-induced stress corrosion cracking (Cl-SCC). | Chemical Processing: Reactor pipes, liners, and internals handling harsh acids and halogens. Pollution Control: Flue gas desulfurization (FGD) systems. Pharmaceutical: Process piping requiring high purity and cleanability. |
| Alloy 825 (UNS N08825) | Nickel-Iron-Chromium with Molybdenum & Copper | Resistance to Reducing & Oxidizing Acids. The iron content makes it more cost-effective than C-276. Excellent resistance to sulfuric and phosphoric acids. Good resistance to Cl-SCC. | Oil & Gas: Downhole and surface piping, especially in sour service (H₂S-containing) environments. Chemical Processing: Acid production, pickling tanks. Nuclear Fuel Reprocessing. |
Selection Insight: Choose Alloy 625 for high strength and fatigue; C-276 for the most universally aggressive chemical environments; and Alloy 825 for a cost-effective solution for sulfuric/phosphoric acids and sour service in oil and gas.
3. What are the Critical Manufacturing Processes for Nickel Alloy Pipes, and How Do They Impact Quality?
The manufacturing method significantly influences the mechanical properties, corrosion resistance, and pressure integrity of the final pipe. The two primary processes are Seamless and Welded.
Seamless Pipe (SMLS) Manufacturing:
Process: A solid billet of nickel alloy is heated and pierced through the center by a mandrel to create a hollow shell. It is then elongated and rolled to the final size and wall thickness.
Advantages:
Homogeneity: No weld seam, meaning uniform grain structure and mechanical properties around the circumference.
Higher Pressure Rating: Generally stronger and more reliable for high-pressure applications.
Superior Corrosion Resistance: Eliminates the risk of weld seam corrosion, which can be a weak point if the weld and base metal are not perfectly matched.
Disadvantages: Higher cost, longer lead times, and size limitations (especially for large diameters).
Welded Pipe (ERW or CW) Manufacturing:
Process: A flat plate or sheet of nickel alloy is rolled into a cylindrical shape, and the longitudinal seam is welded. For high-quality alloys, this is typically done using Automatic TIG (GTAW) or Laser Welding without filler metal. The weld is often heat-treated and cold-worked.
Advantages:
Cost-Effective: More economical, especially for large diameters and thin walls.
Dimensional Consistency: Tighter control on wall thickness and ovality.
Availability: Easier to produce in large sizes.
Disadvantages: The weld seam is a potential area of heterogeneity. It must be meticulously controlled and inspected to ensure it matches the base metal's properties.
Quality Impact: For critical services in oil and gas, chemical, and aerospace, seamless pipes are often specified due to their inherent reliability. However, modern welded pipe manufacturing, followed by full-body heat treatment and 100% non-destructive testing (NDT) like radiography or ultrasonic testing, can produce pipes suitable for many demanding applications.
4. What are the Essential Considerations for Welding and Fabricating Nickel Alloy Piping Systems?
Welding nickel alloys is more challenging than welding carbon or stainless steels and requires strict procedures to avoid defects. Key considerations include:
Cleanliness is Non-Negotiable: Contamination is the number one cause of welding problems. Nickel alloys are susceptible to cracking from sulfur, phosphorus, lead, and other low-melting-point elements. All surfaces (base metal, filler metal) must be thoroughly cleaned of oil, grease, paint, and marking inks.
Joint Design and Fit-Up: Gaps must be minimized. Poor fit-up can lead to burn-through or inadequate penetration. A tight, square butt joint is ideal.
Heat Input Control: Use lower heat input compared to steel welding. Excessive heat can cause:
Carbide Precipitation: Loss of corrosion resistance in the Heat-Affected Zone (HAZ).
Hot Cracking: Solidification cracking in the weld metal.
Distortion: Warping of the pipe.
Interpass Temperature: This must be strictly controlled, typically to a maximum of 150°C (300°F). Using a temperature-indicating crayon is essential. Allowing the weld to cool between passes prevents excessive grain growth and maintains corrosion resistance.
Filler Metal Selection: The filler metal must generally match the base alloy's corrosion resistance. Using an under-matched filler can create a galvanic cell where the weld corrodes preferentially. Common standards are AWS A5.14 (e.g., ERNiCrMo-3 for Alloy 625, ERNiCrMo-4 for C-276).
Back Purging: When welding with processes like TIG, using an inert gas (argon) on the inside (root side) of the weld is critical to prevent oxidation (sugaring) on the backside bead, which would severely reduce corrosion resistance.
Properly trained welders and detailed Welding Procedure Specifications (WPS) are mandatory for a successful nickel alloy pipe installation.
5. How are Nickel Alloy Pipes Standardized and Certified to Ensure Quality and Safety?
To guarantee performance and interchangeability, nickel alloy pipes are governed by a comprehensive set of international standards that cover chemical composition, mechanical properties, dimensions, and testing.
Material and Manufacturing Standards:
ASTM B163: Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes.
ASTM B165: Standard Specification for Nickel-Copper Alloy (Alloy 400) Seamless Pipe and Tube.
ASTM B444: Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (Alloy 625) and Nickel-Chromium-Molybdenum-Silicon Alloy (Alloy 622) Pipe and Tube.
ASTM B619/B626: Standards for Welded Nickel and Nickel Alloy Pipe.
ASME SB-XXX: The ASME Boiler and Pressure Vessel Code versions of these ASTM standards, which are mandatory for pressurized systems in power plants and other regulated industries.
Dimensional Standards:
ASME B36.19M: Stainless Steel and Nickel Alloy Pipe. This standard defines the outer diameters and wall thicknesses (schedules) for nickel alloy pipes, ensuring they are dimensionally compatible with fittings and valves.
Certification and Traceability:
Material Test Report (MTR): Also known as a Mill Test Certificate, this is a crucial document provided by the manufacturer. A proper MTR for nickel alloy pipes includes:
Heat Number: A unique identifier tracing the pipe back to the specific melt of metal.
Chemical Analysis: Confirming the composition meets the standard requirements.
Mechanical Test Results: Tensile strength, yield strength, elongation.
Results of NDT: Such as hydrostatic test pressure or eddy current test results.
Heat Treatment Lot: Confirming the pipe underwent the proper annealing and quenching process.
Procuring pipes that conform to these standards and are supplied with full traceability via an MTR is essential for ensuring the quality, safety, and longevity of a high-performance piping system.
