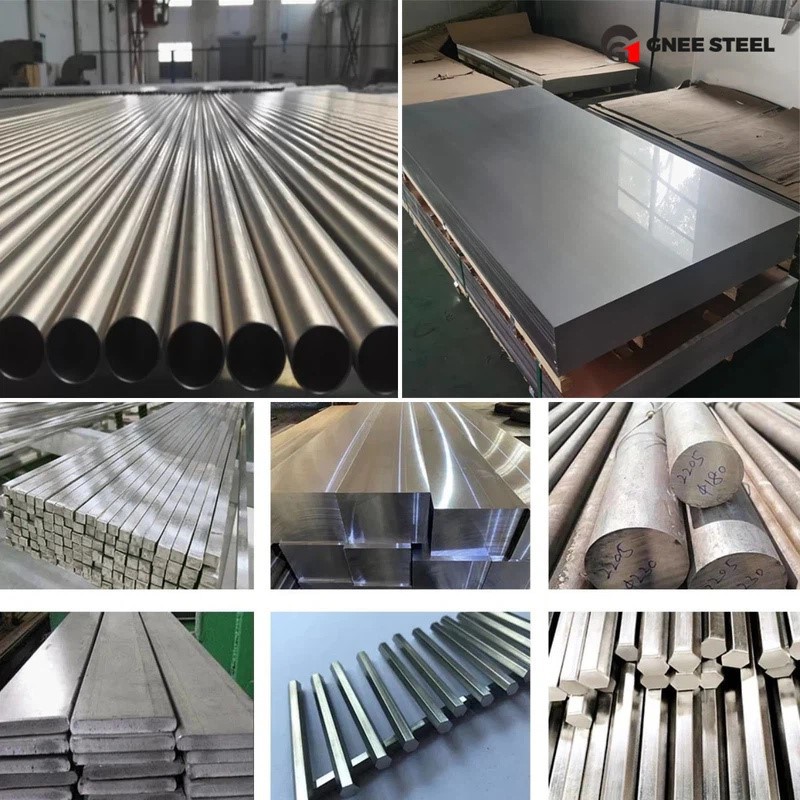

Inconel Welding 600 Metal Alloy Rod
Length: 0.5 - 6.0 meter
Diameter: 3 - 600 mm
Surface: Black, Polished, Bright, Pickled
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
GNEE Inconel welding 600 Metal Alloy Rod introduce
Inconel welding 600 Metal Alloy Rod
Inconel 600 welding rod is a nickel-chromium alloy (Ni-Cr-Fe) welding material, specially designed to match Inconel 600 substrate, in accordance with AWS A5.14 ERNiCrFe-7 standard. Its nickel content is ≥72%, chromium is 14-17%, and it has excellent high-temperature oxidation resistance (up to 1100℃), resistance to chloride ion stress corrosion and organic acid and alkali corrosion. The welding rod is available in two forms: straight bars (1.6-5.0mm) and coiled wires (0.8-2.0mm), suitable for TIG, MIG and SAW processes, with welded joint strength ≥550MPa and elongation ≥30%. It is typically used in chemical equipment repair, nuclear power evaporator pipeline welding, boiler high-temperature component maintenance and aerospace heat-resistant component manufacturing. No preheating is required after welding (normal working conditions), but it is recommended to perform 1010-1150℃ solid solution treatment on key components to optimize performance.
GNEE Inconel welding 600 Metal Alloy Rod Specification
Inconel 600 Welding Rod Specification Table
| Property Category | Technical Specifications |
|---|---|
| Standard | AWS A5.14 ERNiCrFe-7 / ENiCrFe-3 |
| Chemical Composition (%) | Ni≥72, Cr14-17, Fe6-10, C≤0.15, Mn≤1.0, Si≤0.5, Cu≤0.5, S≤0.015 |
| Mechanical Properties | Tensile Strength≥550MPa, Yield Strength≥240MPa, Elongation≥30%, Hardness HRB 65-85 |
| Deposited Metal Properties | Tensile Strength≥550MPa, Elongation≥30% (as-welded condition) |
| Welding Characteristics | 1. Suitable for TIG, MIG, SAW processes 2. Recommended polarity: DCEN (TIG) or DCEP (MIG) 3. Preheat: Not required (standard conditions) |
| Corrosion Resistance | Excellent high-temperature oxidation resistance (up to 1100°C), resists chloride stress corrosion, organic acids/alkalis |
| Heat Treatment | Post-weld solution annealing recommended: 1010-1150°C rapid cooling (service-dependent) |
| Packaging | Straight rods: 1.6-5.0mm, 350-1000mm length; Spool wire: 0.8-2.0mm, 5-15kg/spool |
| Typical Applications | Chemical equipment welding, nuclear evaporator repair, boiler pipe maintenance, aerospace component welding |
Alloy 600 Welding Rods Equivalent Grades
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Alloy 600 | N06600 | 2.4816 | NC15FE11M | NiCr15Fe | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | ЭИ868 |
Inconel Alloy 600 Welding Rods Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
GNEE Inconel welding 600 Metal Alloy Rod Schedule
The following is a table of common sizes of Inconel 600 welding rods (AWS A5.14 ERNiCrFe-7 / ENiCrFe-3):
| Form | Diameter (mm) | Standard Length (mm) | Packaging | Primary Applications |
|---|---|---|---|---|
| Straight Rod | 1.6, 2.0, 2.4 | 350, 450, 600 | Bundled (10-20 rods/bundle) | Manual TIG welding, small repairs |
| 3.2, 4.0, 5.0 | 600, 1000 | Boxed (50-100 rods) | Medium-thick plate TIG/MIG welding |
GNEE Group Factory Environment
GNEE Group Inconel welding 600 Metal Alloy Rod Factory Environment
GNEE Group Packaging
GNEE Group Inconel welding 600 Metal Alloy Rod Packaging
GNEE Group Testing
GNEE Group Inconel welding 600 Metal Alloy Rod Testing
FAQ
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
