Inconel 601 Bar
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Uns N06600 Alloy Bar description
GNEE Inconel 600 Bar
Gnee Steel supplies Inconel 601 round bars, also known as nickel-based alloy 601 bars. These bars have a nickel content of 58-63%. Inconel is a general-purpose nickel-chromium-iron alloy, widely popular as an engineering alloy. 601 round bars are particularly suitable for applications requiring high temperature and corrosion resistance. Due to their superior quality, most industrial companies choose these round bars. They are primarily used in harsh environments. Inconel is known for its strength under impact loads, resisting fracture. Furthermore, it can withstand high temperatures and resists stress cracking and pitting corrosion.
Gnee Steel offers a wide range of high-quality Inconel 601 bars in various sizes, and provides customization services and worldwide shipping to meet your specific project needs.
Contact us now to get an export quote for Inconel 601 Bar
Key Technology Comparison between Inconel 601 and Inconel 600
Why choose 601 over 600? While both are nickel-chromium alloys, Inconel 601 (Alloy 601) contains aluminum (Al).
Oxidation Resistance: Alloy 601 forms a strong, highly adhesive oxide film that is not easily peeled off. Therefore, its performance in cyclic heating environments is far superior to Alloy 600.
Operating Temperature: 601 is optimized for high-temperature strength, while 600 is preferred due to its superior resistance to chloride stress corrosion cracking in aqueous environments.
Inconel 601 Round Bar Specifications
| Bar Standard | ASTM B166 / ASME SB166, AMS 5665 |
| Hex Bar Size | 2-100mm A/F |
| Round Bar Size | Diameter: 3-~800mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square Bar Size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients' requirements |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Inconel 600 Bar Specification
ASTM B166 601 Inconel Bars Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 601 | N06601 | 2.4851 | NC23FeA | NiCr23Fe | NCF 601 | NA 49 | XH60BT | ЭИ868 |
Inconel UNS N06601 Round Bars Chemical Composition
| GRADE | Ni | C | Fe | Si | Mn | S | Cu | Cr |
| Inconel 601 | 58.0 – 63.0 | 0.10 max | Balance | 0.5 max | 1.0 max | 0.015 max | 1.0 max | 21.0 – 25.0 |
Inconel Alloy WERKSTOFF NR. 2.4851 Bars Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 30,000 , MPa – 205 | Psi – 80,000 , MPa – 550 | 30 % |
Inconel 601 Bar Sizes
Uns N06601 bar suppliers
Inconel 601 Round Bar Sizes
| colspan="2">US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| >Diameter(Inch) | Inconel 601 Bar Size | Diameter (millimeter) | Inconel 601 Bar Size | Diameter (millimeter) | Inconel 601 Bar Size | Diameter (millimeter2) | Inconel 601 Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
UNS 6601 Hexagon Rod Tolerance
| Diameter, Size or width across flats(mm) | Variation Permitted(mm) | ||||||
|---|---|---|---|---|---|---|---|
| Flat | Round | Square & Hexagon | Flat | Flat | Round | Square & Hexagon | Flat |
| Width | Thickness | Width | Thickness | ||||
| > 30 ≦ 50 | + 0 to – 0.0160 | + 0 to – 0.0100 | + 0 to – 0.0130 | + 0 to – 0.0250 | |||
| < 18 | ≥6 ≦ 18 | ≥ 6 ≦ 18 | < 18 | + 0 to – 0.0110 | + 0 to – 0.0070 | + 0 to – 0.0090 | + 0 to – 0.0110 |
| > 50 ≦ 80 | + 0 to – 0.0190 | + 0 to – 0.0120 | + 0 to – 0.0160 | + 0 to – 0.0350 | |||
| > 18 ≦ 30 | + 0 to – 0.0130 | + 0 to – 0.0085 | + 0 to – 0.0110 | + 0 to – 0.0130 | |||
| > 80 ≦ 100 | > 80 ≦ 105 | – | + 0 to – 0.0220 | + 0 to – 0.0140 | + 0 to – 0.0250 | – | |
Inconel 601 Square Bar Sizes
| Size (mm) | Weight per metre (Kg) |
|---|---|
| 12 x 12 | 1.14 |
| 16 x 16 | 2.02 |
| 20 x 20 | 3.16 |
| 25 x 25 | 4.94 |
| 30x30 | 7.11 |
| 40 x 40 | 12.60 |
| 50 x 50 | 19.80 |
Gnee Steel offers the full range of Inconel 601 products.
You may be looking for Inconel 601 bars, but most industrial projects require comprehensive material solutions. We offer a one-stop shop for the Inconel 601 product range:

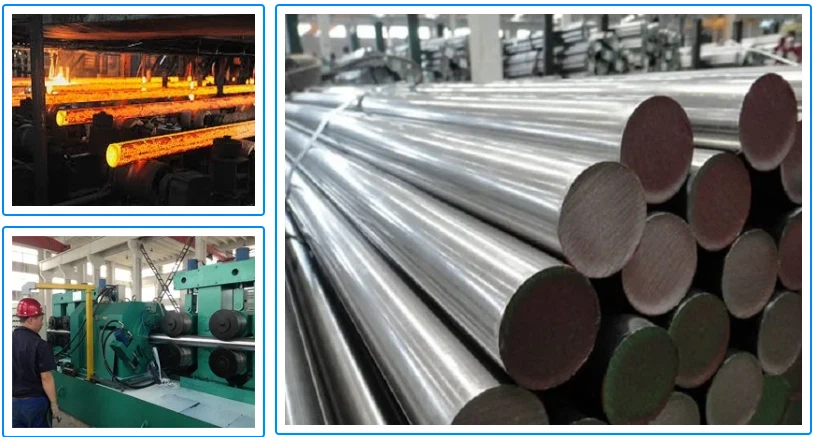

Inconel 601 Bar Stock Available in a Full Range
As a professional nickel alloy manufacturer, we offer a wide variety of Inconel 601 bars in various shapes (round, hexagonal, flat, square) and finishes:
GNEE Supply Range and Details
Diameter Range: 3mm to 400mm (3-100mm cold drawn; 100-400mm hot forged/peeled)
Length Options: Random lengths (3-6m) or fixed lengths (e.g., 5.8m to optimize loading into a 20-foot container)
Tolerances: ISO h8, h9, h10, h11 or custom high-precision tolerances
Available Shapes: Round bars, hexagonal bars, square bars, flat bars
Surface Finish Options:
Cold drawn bright: High precision, smooth surface, ideal for direct CNC machining.
Hot rolled pickled/peeled: Economical, suitable for further hot forging or heavy machining.
Smooth turning: Our high-end product. Removing all surface microcracks and decarburized layers-the preferred choice for high-end aerospace and gas turbine customers.
GNEE Quality Certification: What Makes Our 601 Alloy Different?
For Inconel 601 bars, internal structure is just as important as surface.
Strict Grain Size Control: We ensure a uniform grain structure (typically grade 5 or finer) to maximize creep rupture life in furnace environments.
100% Inspection Process:
PMI Testing: Verifies the chemical composition of each bar.
Ultrasonic Testing (UT): Detects internal voids or inclusions according to ASTM A388 standards.
Hardness Testing: Ensures consistent machinability throughout the batch.
Inconel 601 Bar Price List
| Inconel 601 Round Bar Product Description | Inconel 601 Bar Price in India (INR) | Inconel 601 Round Bar Price in USD |
|---|---|---|
| Alloy 601 Rod Price Per Kg | ₹1400 | $23.10 USD |
| ASTM B166 UNS N06601 Round Bar Price | ₹5000 | $64.17 USD |
| Inconel 601 Material Round Rod Price | ₹6150 | $74.20 USD |
| Inconel® 601 Round Bar Price Per Kg | Rs. 1990 | $49.04 USD |
| Price of ASTM B166 N06601 Bar 10.0mm dia x 500mm long | ₹2308 | $27.02 USD |
| Price of Inconel 2.4851 Square Bar | ₹6022 | $19.23 USD |
| UNS N06601 Flat Bar Price List | ₹1900 | $33.23 USD |
| AMS 5715 Inconel 601 Bar | ₹1701 | $29.0 USD |
| Inconel 601 Rod Price Per Kg | ₹3000 | $41.17 USD |
| Inconel 601 Alloy Hex Bar / Rod 10mm (A/F) x 2000mm Price | ₹2008 | $61.07 USD |
Location and Delivery Time of DIN 2.4851 Rectangular Bar
| Export to | Price changes and the expected delivery |
|---|---|
| France | 5 % extra | 28 days |
| Italy | 5 % extra | 28 days |
| Uk | 5 % extra | 30 days |
| Spain | 5 % extra | 30 days |
| Ukraine | 5 % extra | 60 days |
Products and services offered by Gnee Steel
Applications of Inconel 601 Bar
Aerospace: Jet engine components, gas turbine parts, rocket engines, and fasteners.
Oil and Gas: Downhole drill pipes, wellhead components, valves, and pump assemblies.
Chemical Industry: High-temperature reactors and pipelines.
Marine: Submarine components and high-strength shafts.
Nuclear Energy: Reactor core and control rod components.
Packaging method for Alloy 601 Bar
We understand the critical importance of protecting your high-value Inconel 601 bright bars.
Packaging: Each bar is wrapped in rust-proof paper/plastic and packed into reinforced wooden crates or steel bundles conforming to IPPC standards for sea freight.
Logistics: We offer flexible sea freight (FCL/LCL), air freight, or rail transport options to Europe and Central Asia.
About Gnee Steel
Request the latest Inconel 601 Bar price list. Please call +8615824687445 or email ss@gneesteel.com for information on available stock and the latest price list for Nickel 601 Bar.
Please contact us to get a quick quote for the inconel 601 Bar you need
We supply these Inconel 601 Bar according to DIN, ISO, JIS, or ANSI/ASME standards.
"We provide DDP/CIF shipping services to Germany and Italy."
FAQ
Q：What is Inconel 601?
A：Inconel 601 is a nickel-chromium alloy with extremely strong oxidation resistance, with a maximum temperature resistance of 2200°F (1200°C). A tightly adhering oxide layer forms on the surface of the 601 alloy, preventing peeling even under harsh thermal cycling conditions. This alloy has good high-temperature strength and maintains good ductility even after long-term use.
Q：How machinable is Inconel 601?
A：A notable characteristic of Inconel 601 alloy is its excellent resistance to high-temperature oxidation. In addition, this alloy has good resistance to water corrosion, high mechanical strength, and is easy to form, machine, and weld.
Q：Is Inconel 601 magnetic?
A：Inconel 601 is a nickel-based non-magnetic superalloy composed of nickel-chromium-iron alloys. It possesses excellent heat resistance, oxidation resistance, corrosion resistance (including organic and inorganic compound corrosion), and alkali resistance (making it virtually unaffected by chloride ion stress corrosion cracking).
Q：Why is Inconel so expensive?
A：Yes, Inconel is generally more expensive than titanium, primarily due to its more complex manufacturing process and higher nickel content. However, titanium is lighter, while Inconel is stronger and has better heat resistance, making them suitable for different applications.
Q：Is Inconel stronger than stainless steel?
A：Yes, Inconel is generally stronger than stainless steel, especially at high temperatures. It maintains its mechanical strength and resists deformation even at extreme temperatures, making it suitable for aerospace and industrial applications where stainless steel may fail.
Q: What is the current price of Inconel 601 bars?
A: Prices fluctuate with the London Metal Exchange (LME) nickel price. Please contact us for a real-time quote. We offer highly competitive factory direct prices.
Q: Can you supply 601 alloy hexagonal bars for fasteners?
A: Yes, we supply cold-drawn Inconel 601 hexagonal bars in both metric and imperial sizes, with excellent thread properties.
Q: Do you support third-party inspection?
A: Absolutely. We welcome inspections of our materials by SGS, TUV, BV, or any institution designated by the buyer.
