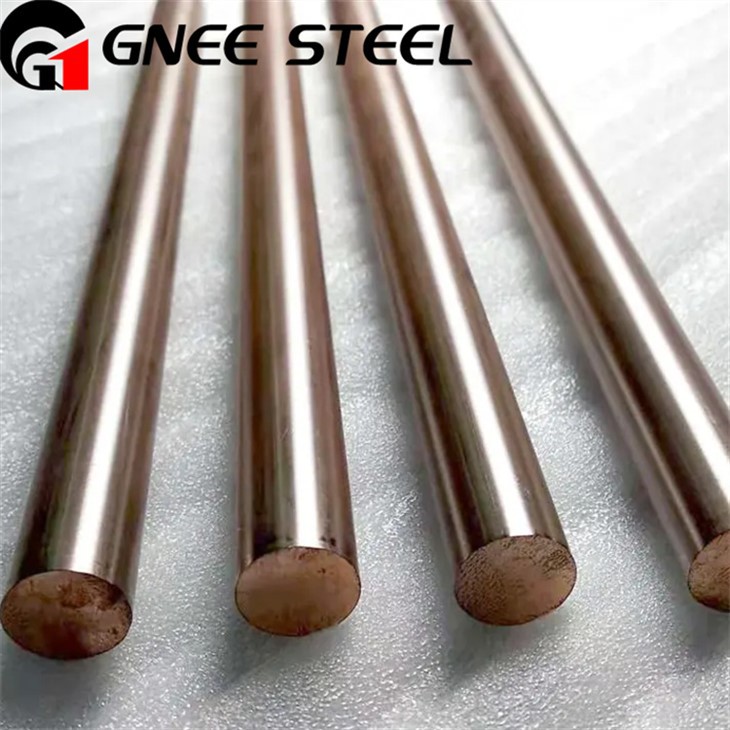

ASTM B760 Tungsten Alloy
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Tungsten Products Application
ASTM B760 Tungsten Alloy video
Tungsten wafers have properties that make them ideal for use in a variety of industrial products, including heat shields, heating elements, and supports for high-temperature furnaces, CT scanners, ion implanters, and evaporation boats.
heat shield
hot body
Furnace support frame
Tungsten boat for sapphire crystal furnace and vacuum furnace
Tungsten sputtering targets for vacuum coating and evaporation coating
Ion source for ion implantation equipment
Tungsten Material Specification
|
Thickness |
Thickness Tolerance |
Width |
Width Tolerance |
Length |
Length Tolerance |
|
|
I |
II |
|||||
|
0.10-0.20 |
±0.02 |
±0.03 |
30-150 |
±3 |
50-400 |
±3 |
|
>0.20-0.30 |
±0.03 |
±0.04 |
50-200 |
±3 |
50-400 |
±3 |
|
>0.30-0.40 |
±0.04 |
±0.05 |
50-200 |
±3 |
50-400 |
±3 |
|
>0.40-0.60 |
±0.05 |
±0.06 |
50-200 |
±4 |
50-400 |
±4 |
|
>0.60-0.80 |
±0.07 |
±0.08 |
50-200 |
±4 |
50-400 |
±4 |
|
>0.8-1.0 |
±0.08 |
±0.10 |
50-200 |
±4 |
50-400 |
±4 |
|
>1.0-2.0 |
±0.12 |
±0.20 |
50-200 |
±5 |
50-400 |
±5 |
|
>2.0-3.0 |
±0.20 |
±0.30 |
50-200 |
±5 |
50-400 |
±5 |
|
>3.0-4.0 |
±0.30 |
±0.40 |
50-200 |
±5 |
50-400 |
±5 |
|
>4.0-6.0 |
±0.40 |
±0.50 |
50-150 |
±5 |
50-400 |
±5 |
ASTM B760 Tungsten Alloy
Pure tungsten metal has the highest melting point of all metals and the highest tensile strength at temperatures above 1650°C. Its thermal expansion rate is similar to that of borosilicate glass and silicon.
Tungsten's good thermal and electrical conductivity makes it an excellent choice for microprocessor applications. It is also used in electron emitters, heating coils, cathode ray tubes, electrical contacts, and various high temperature applications such as vacuum furnaces and fusion reactor chambers.
Pure tungsten metal (99.95%) is available in all product formats including foil, coil, sheet and plate. Because the material is relatively brittle and prone to edge chipping and abrasive characteristics on tools, this particular material can be machined, formed, and ground with care. All pure tungsten products start as pressed and sintered powder and are then further processed into their final form using traditional grinding techniques.
Customer Case
customer visit
FAQ
Q: Can you provide us samples, is it free or does it require payment?
A: If you don't need to print your logo or other artwork on the product, we won't charge any fee, just tell us your freight collect account, such as Fedex, DHL, TNT. If you don't have it, we need to charge the express fee appropriately.
Q: Can I get your best price?
A: Our goal is to provide you with the best price and excellent quality assurance in the long run. Please leave your contact information to get the best quote, we will provide you with the best solution as soon as possible.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or if the goods are not in stock, it is 15-20 days, depending on the quantity.
Q: About the product price of ASTM B760 Tungsten Alloy?
A: Due to cyclical changes in raw material prices, prices vary in different periods.
