GH3039 Nickel-Based Solid Solution Superalloy
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Gnee Alloy GH3039 Alloy: Key Global Export Markets
We maintain a stable base of repeat customers across all major regions with demand for high-temperature alloys. The following market demand characteristics may assist you in material selection:
| Region / Country | Procurement Characteristics |
|---|---|
| Kazakhstan & CIS Countries (Largest export market for GH3039) | Bulk orders involving military aviation MRO (Maintenance, Repair & Overhaul) and local gas turbine power plant construction; priority procurement of aviation-grade bars and sheets produced by VIM+ESR dual-refining process; complete dual-use export license documentation required. |
| India & Pakistan (Fast-growing repeat-purchase market) | Combination of small trial orders and annual framework bulk contracts; primary demand for industrial-grade GH3039 sheets and pipes for local aerospace fleets and thermal equipment OEMs; relatively price-sensitive. |
| Middle East (UAE, Saudi Arabia, Saudi Arabia) | MRO emergency replenishment orders; mainly procure GH3039 seamless pipes and sheets for high-temperature furnace equipment in offshore petrochemical industry; strict requirement for MTC 3.2 full-item test certificates. |
| Southeast Asia (Vietnam, Thailand) | Mainly local component processing factories; procure rough bars and 2B-finish sheets for secondary processing; focus on fast delivery lead times and low MOQ (Minimum Order Quantity) support. |
| Western Europe (Germany, France) | High-end semiconductor and industrial furnace OEM customers; demand BA bright-finish ultra-thin GH3039 sheets; each batch must comply with strict SGS/TUV third-party audit standards. |
Contact us to create a tailored solution for your project
GH3039 Alloy Description
Gnee Alloy GH3039 Nickel-Based Solid Solution Superalloy Description
GH3039 is a single-phase austenitic, solid-solution strengthened nickel-based superalloy (non-precipitation hardening type). It relies solely on solid-solution strengthening to achieve long-term microstructural stability at high temperatures. With nickel as the matrix, the alloy utilizes chromium (approx. 19.0–22.0%) for oxidation and corrosion resistance, while molybdenum (approx. 1.8–2.3%) and niobium (approx. 0.4–0.9%) serve as solid-solution strengthening elements; it also contains iron (≤3.0%) and titanium (0.30–0.60%).
Regarding its service temperature range, the alloy maintains moderate thermal strength below 850°C and exhibits excellent oxidation resistance during long-term use at temperatures up to 1000°C. It possesses excellent cold-forming and welding capabilities and can be processed into forms such as sheets, bars, wires, tubes, and forgings. Furthermore, surface treatments-including laser shock peening (LSP), boron-chromium co-diffusion, or aluminizing-can be applied to further enhance fatigue life, surface hardness, and oxidation resistance.
Material grades for GH3039
| Standard No. | Title | Application Range |
|---|---|---|
| GJB 1952-1994 | Specification for Superalloy Cold-Rolled Thin Sheets for Aviation | Cold-rolled sheets |
| GJB 2297-1995 | Specification for Superalloy Cold-Drawn (Rolled) Seamless Tubes for Aviation | Seamless tubes |
| GJB 2612-1996 | Specification for Superalloy Cold-Drawn Wire for Aviation | Cold-drawn wire |
| GJB 3165-1998 | Specification for Superalloy Hot-Rolled and Forged Bars for Aviation Load-Bearing Parts | Hot-rolled/forged bars |
| GJB 3317-1998 | Specification for Superalloy Hot-Rolled Sheets for Aviation | Hot-rolled sheets |
| GJB 3318-1998 | Specification for Superalloy Cold-Rolled Strips for Aviation | Cold-rolled strips |
| GB/T15062-1994 | Superalloy Tubes for General Use | General-purpose tubes |

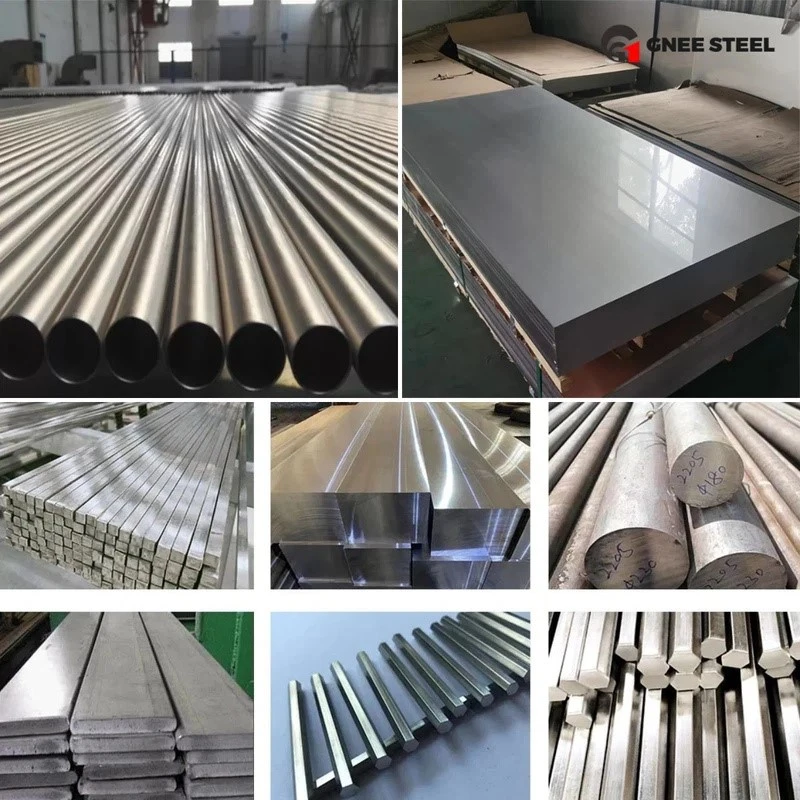

Available forms of GH3039
GH3039 Supply Specifications
| Product Form | Dimension Range |
|---|---|
| Sheets (Cold-rolled) | Thickness: 0.5–6.0 mm; Width: 500–1500 mm |
| Sheets (Hot-rolled) | Thickness: 4–14 mm |
| Bars (Round) | Diameter: 6–500 mm; Length: 0.5–30 m |
| Tubes (Seamless) | OD: 6–530 mm; Wall Thickness: 0.5–50 mm; Length: 1–12 m |
| Strips | Thickness: 0.1–5 mm; Width: 20–1000 mm |
| Forgings | Custom manufacturing available |
Contact our experts to recommend the right alloy for your project
high temperature GH3039 Alloy Specification
| Parameter | GH3039 (GH39) |
|---|---|
| Material Type | Ni-Cr based solid-solution strengthened wrought superalloy (single-phase austenitic) |
| Similar Grades | ЭИ602, ХН75МБТЮ (Kazakhstan) |
| Product Forms | Plate, sheet, strip, bar, wire, tube, forgings |
| Typical Applications | Aero-engine combustion chambers, afterburner components, heat shields, flame stabilizers, guide vanes |
| Service Temperature | Long-term service up to 850°C; oxidation resistance below 1000°C |
| Strengthening Mechanism | Solid-solution strengthening (Mo, Nb, Cr, with minor Al and Ti) |
| Cold Formability | Excellent (elongation ≥ 40% in solution-treated condition) |
| Weldability | TIG, spot, seam, brazing; low crack sensitivity; weldable to GH3030, GH3044, GH1140 |
| Magnetic Properties | Non-magnetic |
| Applicable Standards | GJB 1952, GJB 2297, GJB 2612, GJB 3165, GJB 3317, GJB 3318, GB/T 14992, GB/T 15062 |
Key Properties of GH3039 Alloy
Chemical composition of GH3039 alloy (wt%)
| Element | Ni Base | Cr | Fe | Al | Ti | Mn | Si | C | S / P Impurity Limit |
|---|---|---|---|---|---|---|---|---|---|
| Standard Range | Remainder | 19.0~22.0 | ≤3.0 | 0.35~0.75 | 0.35~0.75 | ≤0.40 | ≤0.80 | ≤0.08 | S≤0.012, P≤0.020 |
Physical Properties of GH3039 Alloy
| Property | Value |
|---|---|
| Density | 8.3 g/cm³ |
| Melting Range | Approx. 1300–1350°C |
| Electrical Resistivity (RT) | 1.18 μΩ·m |
| Magnetic Property | Non-magnetic |
Click to download the GH3039 alloy PDF file now
Key High-Temperature Mechanical Properties of GH3039
Test state: 1080℃ solution annealing, air cooling
| Test Temperature | Tensile Strength Rm (MPa) | Yield Strength Rp0.2 (MPa) | Elongation A (%) | Main Service Scenario Matching |
|---|---|---|---|---|
| Room Temperature ≥ | 735 | 315 | 40 | Cold stamping, room temp processing parts |
| 800℃ Long Cycle ≥ | 345 | 140 | 45 | Gas turbine medium-temperature shielding plates |
| 900℃ Long Cycle ≥ | 245 | 110 | 50 | Vacuum furnace continuous lining plates |
| 1000℃ Short Term ≥ | 130 | 60 | 60 | Intermittent heating petrochemical liners |
Critical advantage over GH3044: GH3039 has 10% higher elongation under 800-1000℃ cyclic heating, far less cracking risk after repeated heating & cooling, which is the core reason most furnace OEMs choose GH3039 for mass production instead of GH3044.
Maximum stable operating temperature of GH3039
Continuous long-term stable working temperature: 800℃ ~ 1000℃
Short-term peak temperature tolerance: Up to 1050℃
Oxidation resistance comparison: Inferior to GH3044 above 1050℃, but far better forming performance and lower unit cost for 800-1000℃ working conditions
Contact us for information on our GH3039 production process
GH3039 heat treatment process
| Product Form | Heat Treatment Regime |
|---|---|
| Hot-rolled & Cold-rolled Sheets | 1050–1090°C, Air Cool |
| Bars & Tubes | 1050–1080°C, Air Cool or Water Quench |
Click to view the GH3039 heat treatment process curve
Full GH3039 Product Series, Production Flow & Exact Export Specification Range

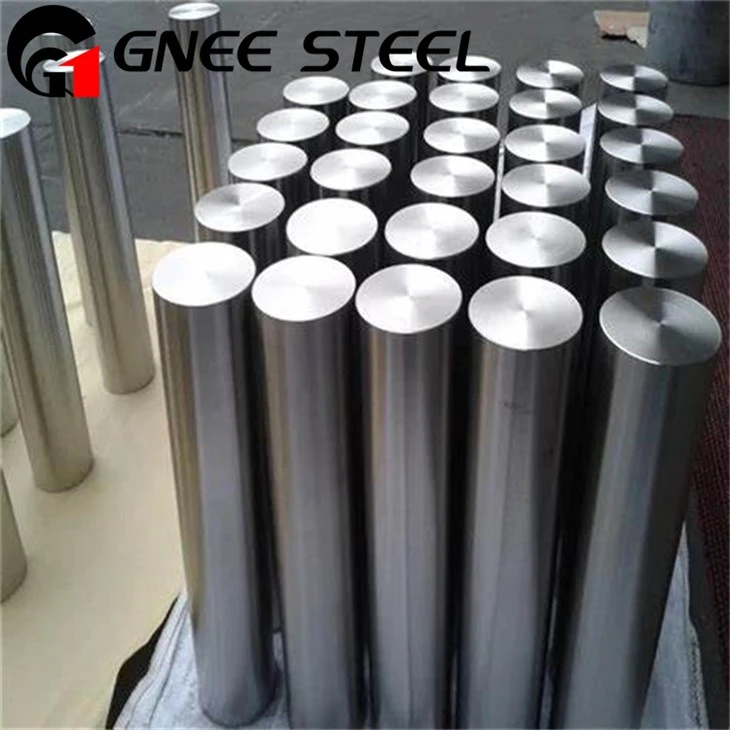

GH3039 Round Bar
Standard Production Process
Industrial Grade (General Furnace & Petrochemical Equipment): Single VIM vacuum induction melting → hot rolling/hot forging → 1080℃ solution heat treatment → straightening → surface processing → conventional UT inspection
Aviation MRO Grade (Aero Engine Afterburner Parts Mandatory): VIM+ESR double vacuum melting → hot forming → solution annealing → 100% UT + MT magnetic particle NDT full inspection, Class A internal flaw standard
Surface Conditions of GH3039 Bars and Corresponding Procurement Scenarios
| Surface Finish | Key Features / Specifications | Target Buyers / Applications |
|---|---|---|
| Black Hot Rolled / Forged | Lowest procurement cost; retains original hot-forming oxide scale | Machinery processing factories purchasing blank raw materials for secondary CNC deep machining |
| Centerless Peeled Bright (Ra ≤ 1.6 μm) | Removes surface decarburization layer; uniform bright surface; easy visual inspection for internal defects | Mass-production gas turbine auxiliary structural parts (most popular export finish); saves customer one peeling process |
| Precision Centerless Ground / Polished (h8/h9 tolerance, Ra ≤ 0.8 μm) | Strict dimensional tolerance; ultra-smooth surface | Aerospace precision fastener manufacturers; rotating small shaft component factories with high-precision drawing requirements |
GH3039 Bar Specifications (In-stock; global rapid MRO delivery available)
| Parameter | Specification |
|---|---|
| Diameter Series | Small bar: Φ10 mm ~ Φ35 mm; Medium bar: Φ40 mm ~ Φ120 mm; Large forged billet: Φ130 mm ~ Φ500 mm (customized) |
| Length | Random length: 2000 mm ~ 5000 mm (standard stock); Fixed cut length: 500 mm ~ 3000 mm per customer drawing |
| Tolerance Benchmark | Hot rolled blank: h10 / h11; Ground / polished precision bar: h8 / h9 |
Main Export Application of GH3039 Bar
Aerospace & Military MRO: Afterburner support brackets, flame stabilizer connecting rods, medium-temperature aircraft fasteners
Power Gas Turbine Manufacturers: Combustion chamber small support shafts, 800-1000℃ circulating thermal load structural blanks
Industrial Furnace Equipment Factory: Furnace roller support frames, heat treatment fixture bearing rods
Petrochemical Plant: High-temperature reactor internal fixed support shafts, anti-oxidation pipeline brackets

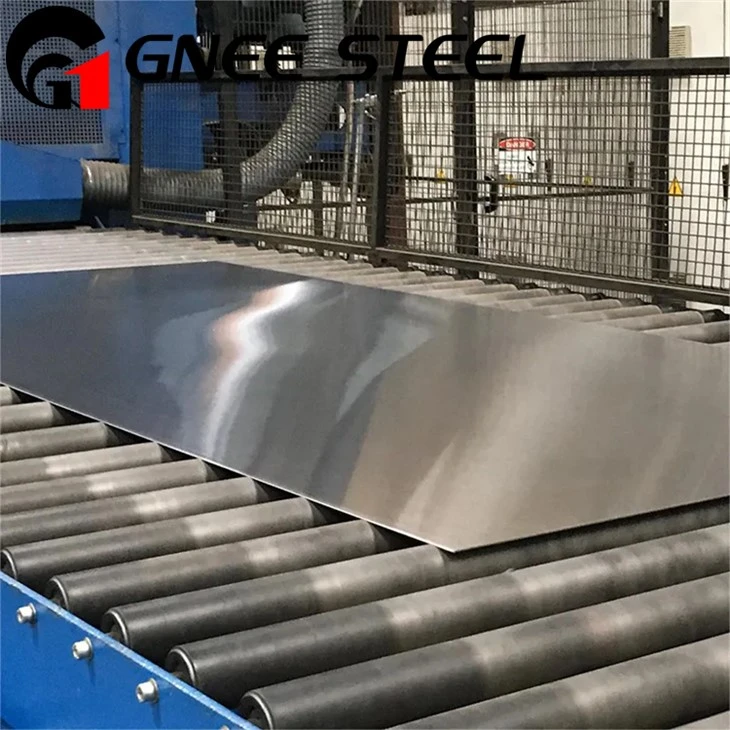

GH3039 Cold Rolled Sheet & Hot Rolled Plate
Manufacturing Process Control for GH3039 Cold-Rolled Sheet
VIM/VIM+ESR smelting ingot → multi-pass cold rolling + intermediate stress relief annealing → 1080℃ solution treatment + rapid water cooling → high-precision leveling to guarantee flatness export standard → laser cutting blank service → full metallurgical & surface inspection
GH3039 Plate/Sheet - Four Standard Export Surface Finishes
| Surface Finish | Surface Description | Key Features | Target Buyers / Applications |
|---|---|---|---|
| 2B Cold Rolled Annealed Pickled (No.1 Export Grade) | Matte grey uniform pickled surface | Balanced cost and forming performance; excellent stamping & welding property | 70% of overseas furnace & aerospace liner buyers choose this for mass orders |
| BA Bright Annealed Mirror | Mirror finish; zero surface oxide layer; ultra-high cleanliness | Annealed under inert protective gas | Semiconductor thermal equipment manufacturers; high-standard aerospace sealing thin sheet processing factories |
| No.1 Hot Rolled Annealed Pickled Plate | Dark matte oxide-free surface | Only for plates over 4mm thickness | Large industrial furnace lining mass production OEMs with low surface precision requirements |
| Sand Blasted / Shot Peened | Uniform rough matte surface | Used as base material for thermal barrier coating (TBC) | Gas turbine hot section component coating processing factories |
Export Size Specifications for GH3039 Sheets/Plates
| Parameter | Specification |
|---|---|
| Thickness Classification | Cold rolled thin sheet: 0.05 mm ~ 3.0 mm; Hot rolled thick plate: 4.0 mm ~ 12.0 mm |
| Standard Export Width | 1000 mm / 1219 mm / 1500 mm; Customized slitting width available for special equipment |
| Compliance Standard | GB/T 14992; Third-party test reports provided to match overseas customer internal audit standards |
Core Export Application of GH3039 Sheet & Plate
Aerospace Afterburner Liner Manufacturers: Afterburner heat shielding baffles, engine medium-temperature partition plates
Gas Turbine OEMs: 800-1000℃ thermal cycle resistant compartment shielding plates
Vacuum Furnace Factories: Furnace lining plates, repeated heating cooling thermal shock resistant structural panels
Petrochemical High-Temperature Equipment: Reactor anti-oxidation lining plates, high-heat pipeline separation sheets

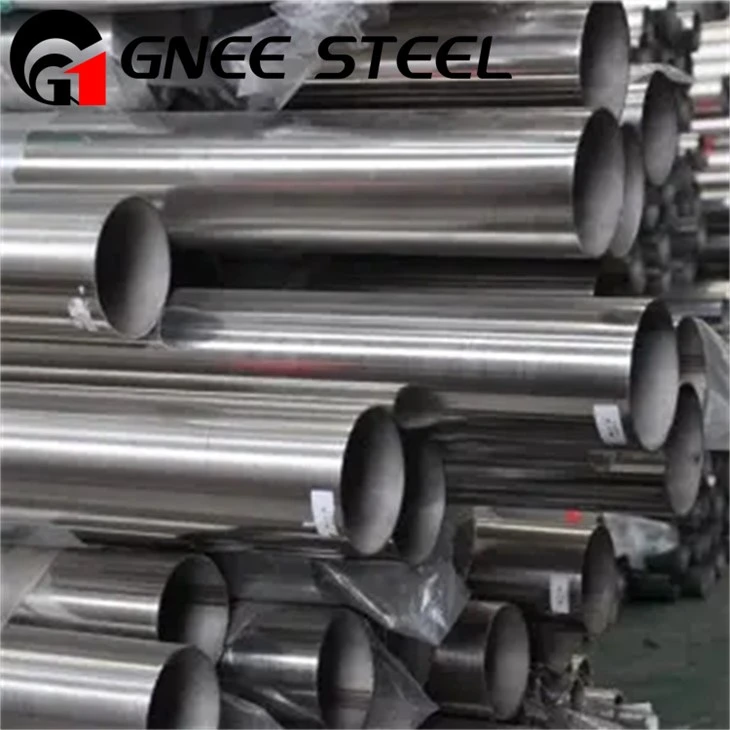

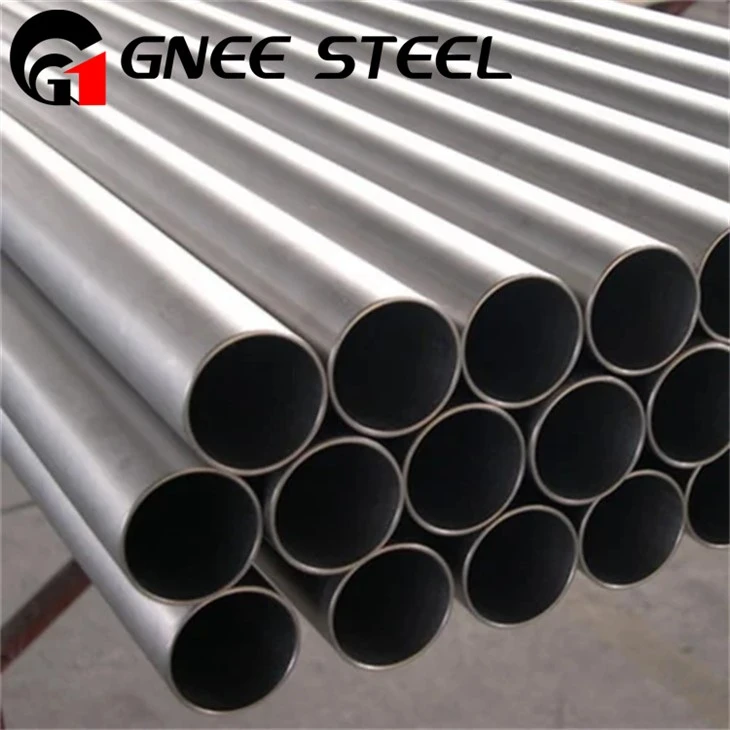

GH3039 Seamless Cold Drawn Tube
Complete Production Process for GH3039 Tubing
Vacuum melted GH3039 tube blank → cold pilger + multi-pass cold drawing to control wall thickness deviation → solution heat treatment to eliminate cold working residual stress → 100% eddy current + ultrasonic dual NDT inspection → surface finishing & customized end processing
Three surface delivery conditions for GH3039 tubing
| Tube Finish | Surface Description | Target Market / Typical Application |
|---|---|---|
| BA Bright Annealed | Mirror, oxide‑free, ultra‑clean surface | Exported to semiconductor diffusion furnace manufacturers |
| AP Pickled & Annealed | Matte grey, cost‑effective surface | Mainstream choice for global orders of furnace radiant tubes |
| 180~600 Grit Mirror Polished | Mirror‑polished surface | Dedicated tubing for precision instrument thermocouple protection sleeves |
GH3039 Tube Dimension Range
| Parameter | Specification |
|---|---|
| Outer Diameter | Capillary tube: Φ10 – 30 mm; Thin wall tube: Φ30 – 140 mm; Heavy wall tube: Φ140 – 320 mm (customized) |
| Wall Thickness | 0.5 mm – 25 mm; Ultra-thin wall and extra heavy wall customized per drawing |
| Custom Services | Fixed length cutting, tube end flanging, threading processing for overseas pipeline manufacturers |
Core Applications of GH3039 Tubing
Furnace & Thermal Equipment Factory: Furnace radiant heating tubes, heating element protection sleeves
Instrument & Sensor Manufacturers: High-temperature thermocouple protection tubes, high heat probe outer casings
Environmental Waste Treatment Equipment: High-temperature flue gas conveying pipeline liners
Semiconductor Manufacturing Plant: Ultra-clean high-temperature diffusion furnace process piping
Nickel Based Alloy GH3039 Packaging
GNEE Group Alloy GH3039 Product Packaging
Why Global Buyers Prefer GH3039 Over GH3044/GH4169
Superior Cold-Forming Performance (Key Procurement Advantage)
Actual procurement data from over 300 manufacturers shows that, under identical stamping processes, GH3039 yields a 40% lower scrap rate than GH3044, significantly reducing production waste costs for customers during large-scale sheet metal component fabrication.
Optimal Balance of Cost and Intermediate-Temperature Performance
For equipment operating stably between 800°C and 1000°C, GH3039 offers a unit price 12%–18% lower than GH3044 while maintaining excellent oxidation and thermal fatigue resistance, making it the most cost-effective choice for large-scale industrial applications involving intermediate-temperature components.
Outstanding Thermal Cycling Fatigue Resistance
For industrial furnace and gas turbine components subject to frequent thermal cycling, GH3039 offers double the service life of standard nickel-based alloys, effectively reducing equipment replacement frequency and after-sales maintenance costs.
Ease of Welding and Post-Processing
It exhibits a low tendency for weld cracking and is compatible with standard TIG (Tungsten Inert Gas) welding processes used by global equipment manufacturers; unlike age-hardening alloys such as GH4169, it requires no specialized welding parameter adjustments.
Contact us to customize a cost-effective solution for your project
About Gnee Alloy
To help us give you the most accurate factory direct price and matching material grade suggestion within 1 hour, please attach below information in your inquiry email:
1. Required product form: Round bar / sheet plate / seamless tube
2. Exact size data: Diameter/thickness × width × length, surface finish requirement
3. Target working temperature & service environment (aerospace MRO / gas turbine / furnace / petrochemical)
4. Order type: Small trial order / annual bulk framework contract / emergency MRO replenishment
5. Target delivery country & required certification documents (3.1 MTC / 3.2 third-party inspection / dual-use export permit)
Free lab small samples for material performance testing (customer only bear international courier cost)
Instant full GH3039 technical datasheet sent after inquiry submission
Custom drawing processing, laser cutting, special tolerance & surface customization service available
Gnee Alloy's capabilities are recognized by global procurement teams
As a 18-year integrated high-temperature alloy export manufacturer, we fully meet the strict supplier audit standards of global aerospace, power and petrochemical procurement departments:
Full closed-loop production line: Independent vacuum smelting, hot/cold rolling, heat treatment, precision processing workshops, full control of product quality and delivery timeline
Complete professional testing laboratory: Spectrometer, high-temperature tensile tester, ultrasonic flaw detector, eddy current tester, metallographic microscope, 100% full inspection before shipment
Complete international certification system: ISO9001, ISO14001, ISO45001, SGS, TUV Rheinland third-party certification, documents fully compliant with global factory supplier audit rules
Professional cross-border export team: 18 years GH3039 export experience, proficient in dual-use material export license processing, customs clearance, seaworthy export packaging, full logistics tracking service
Flexible order support: Small trial order MOQ-free, annual long-term framework bulk orders enjoy exclusive stable contract pricing, free sample supply for customer performance testing
Gnee Alloy GH3039 certificate
FAQ
Q1: What core property makes GH3039 stand out from other GH series high temp alloys? What is its stable working temperature range?
A: GH3039 is a single-phase austenite solid-solution nickel alloy optimized for 800℃–1000℃ cyclic thermal environments. Its biggest competitive advantage is outstanding thermal cycle fatigue resistance + superior cold stamping ductility. Compared with GH3044, GH3039 has 40% lower stamping scrap rate for mass liner production, with 12%-18% lower unit cost for medium-temperature working scenarios.
Long-term continuous stable service temperature: 800℃ ~ 1000℃
Short-term peak temperature tolerance: Up to 1050℃ It cannot be hardened by aging heat treatment; only single solution annealing is required for final performance.
Q2: What product forms of GH3039 can you supply? What dimensional ranges are in regular stock?
A: We fully produce 3 core finished forms for global export, all with standard inventory sizes for fast MRO delivery:
GH3039 Round Bar & Forged Billet Diameter: Φ10mm–Φ500mm; Random length 2000–5000mm, custom fixed cutting length available Surface options: Black hot forged, peeled bright, centerless ground polished (h8/h9 tolerance)
GH3039 Cold Rolled Sheet & Hot Rolled Plate Thickness: Thin sheet 0.05–3.0mm; thick plate 4.0–12mm Standard width: 1000/1219/1500mm, custom slitting supported Surface finishes: 2B, BA bright annealed, No.1 hot rolled pickled, sand blasted
GH3039 Seamless Cold Drawn Tube Outer diameter: Φ10–320mm; wall thickness 0.5–25mm Surface: BA bright tube, AP pickled tube, 180–600 grit mirror polished tube Custom laser cutting, forging blanks, tube end flanging/threading processing are all supported.
Q3: What's the difference between GH3039 and GH3044? How do I choose the right grade for my project?
A: Summarized from 20 years of procurement data, clear selection criteria for engineers & buyers:
GH3044
Max oxidation resistance up to 1200℃, higher tungsten content for ultra-high static temperature anti-oxidation
Poor cold forming performance, high stamping scrap rate, higher raw material cost
Best for static ultra-high temp shielding parts working above 1000℃ with low mechanical load
GH3039
Balanced performance for 800–1000℃ cyclic heating & cooling environments
Excellent cold stamping, bending & welding performance, low production scrap loss
Superior thermal cycle fatigue life for furnace, afterburner components with frequent temperature fluctuation
More cost-effective for mass medium-temperature production Selection Rule: If your equipment runs below 1000℃ with repeated heating cycles and needs stamping forming → Choose GH3039; If stable static service above 1050℃ with zero complex forming → Choose GH3044.
Q4: What two melting processes do you offer for GH3039? What's the difference for export audit?
A: We provide two melting grades matching different customer budgets & industry audit standards:
Industrial Grade (Single VIM Melting) Suitable for ordinary industrial furnace, petrochemical non-critical parts, cost-saving option, basic UT inspection provided.
Aviation MRO Grade (VIM+ESR Double Vacuum Melting) Mandatory for aerospace afterburner, gas turbine hot-section components. Eliminates element segregation, micro-shrinkage and harmful impurities (S/P locked below standard limit). Comes with 100% UT+MT full NDT inspection, Class A internal flaw report, meets global aviation supplier audit requirements, complete dual-use material export documents available for Kazakhstan, CIS, EU aerospace clients.
Q5: What surface finish of GH3039 sheet is most popular for global export orders?
A: The 2B cold rolled annealed & pickled matte finish accounts for 70% of our overseas bulk orders. It balances cost, stamping performance and weldability, ideal for furnace liners, aircraft afterburner shielding plates mass production. Other surface options for special demands:
BA Bright Annealed: Mirror oxide-free high-cleanliness surface, for semiconductor thermal equipment & aerospace sealing thin sheets
No.1 Hot Rolled Pickled Plate: For heavy furnace lining over 4mm thickness, low surface precision demand
Sand Blasted: Used as base material for thermal barrier coating (TBC) on gas turbine parts.
Hot Tags: GH3039 Nickel-Based Solid Solution Superalloy, China GH3039 Nickel-Based Solid Solution Superalloy suppliers, grain boundary alloy, alloy powder, alloy production, GH4169 Steel Grades, homogeneity alloy, ni based superalloy
You Might Also Like
Send Inquiry
