Tensile Strength of Titanium Grades: Grade 1 to Grade 23 Compared

What Sets the Tensile Strength of a Titanium Grade

Tensile strength is the maximum stress a material can carry under tension before it breaks. In titanium this value is controlled by two factors: whether the metal is commercially pure or alloyed, and which heat treatment it has received. Commercially pure grades rely on interstitial content, mainly oxygen, to set their strength, while alloyed grades use aluminium, vanadium, tin, zirconium or molybdenum to stabilise a stronger microstructure.

Grades 1 to 4 are unalloyed, with strength rising as oxygen content increases. Grades 5, 6 and 9 are alpha-beta or near-alpha alloys, and the beta alloys form a separate family that can be aged to much higher strength levels. The numbers quoted by suppliers normally refer to the annealed condition unless a specific heat treatment is stated, so the same grade can appear with two quite different strength values.

Typical Tensile Strength by Grade

The table below gives the usual annealed ranges for common commercial grades, based on the ASTM material specifications.

Grade Alloy designation Tensile strength (MPa) Tensile strength (ksi) Notes
Grade 1 Commercially pure titanium 240 - 370 35 - 54 Softest and most ductile pure grade
Grade 2 Commercially pure titanium 345 - 450 50 - 65 Most widely used pure grade, balanced strength and formability
Grade 3 Commercially pure titanium 485 - 620 70 - 90 Higher oxygen content, stronger but less ductile than Grades 1 and 2
Grade 4 Commercially pure titanium 620 - 795 90 - 115 Strongest of the unalloyed grades
Grade 5 Ti-6Al-4V 860 - 930 125 - 135 The workhorse alloy, strength from aluminium and vanadium
Grade 6 Ti-5Al-2.5Sn 760 - 895 110 - 130 Alpha alloy for elevated-temperature service
Grade 7 Commercially pure titanium with palladium 345 - 450 50 - 65 Same strength band as Grade 2 with much better corrosion resistance
Grade 9 Ti-3Al-2.5V 620 - 795 90 - 115 Alpha-beta alloy with good formability, lighter than Grade 5
Grade 12 Ti-0.3Mo-0.8Ni 485 - 655 70 - 95 Good corrosion resistance in acidic environments
Grade 23 Ti-6Al-4V ELI 860 - 930 125 - 135 Extra low interstitial version of Grade 5 with higher purity for medical implants

The pattern is clear: unalloyed grades sit between roughly 240 MPa and 795 MPa, alpha-beta alloys such as Grade 5 and Grade 9 sit between 620 MPa and 930 MPa, and the interstitial-controlled version of Grade 5 matches the strength of its standard counterpart while offering better toughness.

Heat Treatment Raises the Ceiling

Annealed values are not the upper limit for alloyed titanium. Grade 5 is routinely supplied in a solution-treated and aged condition, in which the part is heated to about 920 degrees C, quenched, and then aged at about 500 degrees C. That cycle lifts tensile strength into the 1,030 to 1,100 MPa band, equivalent to about 150 to 160 ksi, compared with the 860 to 930 MPa of the annealed condition.

Two practical consequences follow:

Strength and ductility trade off. Raising tensile strength by ageing reduces elongation, so forming and bending should be planned for the annealed or mill-annealed condition.

Specifications must state the condition. A purchase order that names only the grade can be satisfied by either condition, so the heat treatment and the required mechanical properties belong in the enquiry and on the test certificate.

Which Titanium Grade Is the Strongest

For standard industrial and commercial work, the strongest common grades are the high-strength alpha-beta alloys rather than the pure grades, and Grade 5, together with its extra low interstitial variant Grade 23, is the most widely used of them.

When strength requirements go beyond that level, beta alloys are the answer, because they respond strongly to ageing and can be processed to a fully beta microstructure:

Ti-10V-2Fe-3Al (Ti-10-2-3). A beta alloy used for aerospace structural parts and medical devices, capable of tensile strength up to about 1,200 MPa (174 ksi) after heat treatment.

Ti-5Al-5Mo-5V-3Cr (Ti-5553). A near-beta alloy whose tensile strength can exceed 1,300 MPa (188 ksi), making it one of the strongest titanium alloys available commercially.

Ti-6Al-2Sn-4Zr-2Mo. A high-temperature alpha-beta alloy used in engine compressors, with strength optimised for elevated-temperature service rather than for maximum room-temperature values.

The choice is therefore a balance of strength, toughness, temperature capability, weldability and cost, not simply the highest number on a data sheet.

Cost Drivers and Selection Notes

Strength and price track each other closely in titanium, for reasons that are easy to identify:

Alloying elements. Molybdenum, tantalum and niobium cost far more than the aluminium and vanadium used in Grade 5, and beta alloys depend on them.

Processing. Beta alloys typically need vacuum arc remelting and careful heat treatment to develop their microstructure, which adds conversion cost.

Purity control. Extra low interstitial grades such as Grade 23 limit oxygen, carbon, nitrogen and hydrogen, and the extra purification steps raise the price by roughly 15 to 30 percent over standard Grade 5.

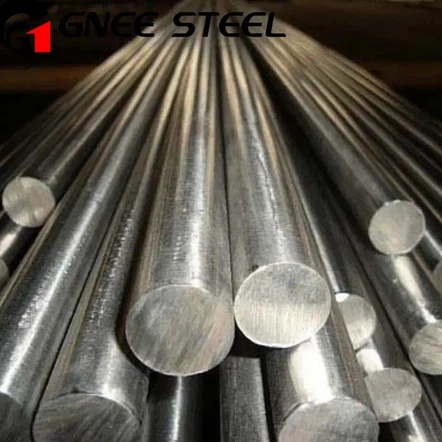

Product form and availability. Bar, plate, seamless tube and fastener stock are stocked in different grades, and a grade that is not held in the required form attracts mill minimums and longer lead times.

Indicative 2024 figures put standard Grade 5 stock at roughly 30 to 50 US dollars per pound, while a near-beta aerospace alloy such as Ti-5553 can exceed 100 US dollars per pound. Those figures move with mill capacity and market demand, so they are useful for comparing grades rather than for fixed budgeting.

Frequently Asked Questions

Q: What is the tensile strength of titanium grades?
Typical annealed ranges run from 240 to 370 MPa for Grade 1 through 620 to 795 MPa for Grade 4, 860 to 930 MPa for Grade 5 and Grade 23, and up to about 1,100 MPa for Grade 5 in the solution-treated and aged condition.

Q: Which grade of titanium is the strongest?
Among commercial grades, Grade 5 (Ti-6Al-4V) and Grade 23 are the strongest widely used options. For the highest values, beta alloys such as Ti-10V-2Fe-3Al and Ti-5Al-5Mo-5V-3Cr exceed 1,200 MPa after heat treatment.

Q: Why does heat treatment change the tensile strength?
Solution treating and ageing precipitates fine second-phase particles in the alpha-beta microstructure, which resist deformation and raise yield and tensile strength. The same treatment reduces elongation, so the condition must be stated on the order.

Q: What is the difference between Grade 5 and Grade 23?
Both are Ti-6Al-4V with a tensile strength of 860 to 930 MPa. Grade 23 is the extra low interstitial version, with tighter limits on oxygen, nitrogen and iron for better toughness, fatigue life and biocompatibility.

Q: Which titanium grades are the most expensive?
High-purity beta alloys containing molybdenum, tantalum or niobium, extra low interstitial grades for medical use, and high-temperature alloys containing zirconium. Their cost is typically two to five times that of standard Grade 5.

Q: Is the tensile strength of pure titanium enough for piping?
Yes for many duties. Grade 2 offers 345 to 450 MPa with excellent ductility and weldability, which is sufficient for chemical process piping and heat exchangers where corrosion resistance rather than load capacity governs the design.
