1. Q: What is UNS N02201 (Nickel 201), and how does it differ from UNS N02200 for polished plate applications?
A: UNS N02201, commonly known as Nickel 201 or Alloy 201, is a commercially pure wrought nickel alloy with a minimum nickel content of 99.0% . Its defining characteristic is an extremely low carbon content of 0.02% maximum, compared to Nickel 200 (UNS N02200) which allows up to 0.15% carbon.
Chemical Composition of UNS N02201:
| Element | Content (%) | Significance for Polished Plates |
|---|---|---|
| Nickel (Ni) + Cobalt (Co) | ≥ 99.0 | Base element; provides corrosion resistance and workability for polishing |
| Carbon (C) | ≤ 0.020 | Low carbon prevents sensitization; enables uniform polishing response |
| Iron (Fe) | ≤ 0.40 | Controlled to maintain purity; minimizes inclusions affecting finish |
| Manganese (Mn) | ≤ 0.35 | Deoxidizer; improves hot workability for plate production |
| Silicon (Si) | ≤ 0.35 | Enhances oxidation resistance; affects surface finish quality |
| Copper (Cu) | ≤ 0.25 | Controlled for specific corrosion environments |
| Sulfur (S) | ≤ 0.010 | Minimized to prevent hot cracking; low sulfur improves polishability |
Key Differences from Nickel 200 for Polished Plates:
| Property | UNS N02200 (Ni200) | UNS N02201 (Ni201) | Polishing Significance |
|---|---|---|---|
| Carbon Content | 0.15% max | 0.02% max | Lower carbon in Ni201 reduces carbide formation; provides more uniform polishing response |
| Grain Structure | Fine to medium | Fine to medium | Both achieve fine grain for polishing; Ni201 maintains stability |
| High-Temperature Stability | Graphitization risk above 600°F | No graphitization | Ni201 preferred for applications requiring polishing and elevated temperature service |
| Weldability | Good | Excellent | Ni201's low carbon reduces weld sensitization; maintains polished finish after welding |
Why Ni201 for Polished Plates:
For polished plate applications, UNS N02201 offers distinct advantages:
Uniform surface finish: Low carbon content ensures consistent grain structure, reducing the risk of "orange peel" effect during polishing
Weld zone consistency: When welded assemblies are polished, Ni201's low carbon prevents carbide precipitation at grain boundaries, maintaining uniform finish across weld and base metal
Thermal stability: For polished plates used in elevated temperature applications (such as caustic evaporators), Ni201 maintains its surface integrity without graphitization embrittlement
2. Q: What are the primary applications for polished UNS N02201 plate across different industries?
A: Polished UNS N02201 plate serves critical functions across multiple industries where corrosion resistance, surface cleanliness, and aesthetic appearance are required. The combination of pure nickel's corrosion properties and a refined surface finish makes it the material of choice for demanding applications.
Industry Applications:
| Industry | Application | Why Polished Ni201 |
|---|---|---|
| Food Processing | Mixing vessels, conveying equipment, food contact surfaces | Hygienic finish; easy cleaning; resistance to food acids; non-toxic |
| Pharmaceutical | Reaction vessels, storage tanks, clean room equipment | Ultra-clean surface; non-reactive; easy sterilization; smooth finish prevents bacterial adhesion |
| Chemical Processing | Caustic handling equipment, evaporators, heat exchangers | Smooth surface prevents buildup; eliminates crevice corrosion initiation sites |
| Electronics | Battery contact plates, electromagnetic shields, precision components | Low contact resistance; uniform surface for welding; controlled surface roughness |
| Semiconductor | Clean room equipment, wafer handling components | Particle-free surface; minimal outgassing; ultra-smooth finish |
| Architectural | Decorative panels, trim, building facades | Mirror finish; aesthetic appeal; corrosion resistance in marine environments |
| Medical | Surgical instruments, implantable device components | Biocompatible; sterilizable; smooth surface for tissue contact |
Polished Finish Types and Applications:
| Finish Designation | Surface Roughness (Ra) | Application |
|---|---|---|
| #4 (Brushed) | 15–35 microinches | General industrial; moderate reflectivity; food processing equipment |
| #6 (Satin) | 10–20 microinches | Semi-reflective; pharmaceutical; laboratory equipment |
| #7 (Buff) | 5–15 microinches | High reflectivity; architectural; decorative components |
| #8 (Mirror) | 2–8 microinches | Maximum reflectivity; semiconductor; medical instruments; high-end architectural |
| Superfinish | < 2 microinches | Critical applications; magnetic recording media; ultra-clean environments |
Specific Chemical Processing Applications:
In caustic handling equipment, polished Ni201 plates are used for:
Caustic evaporator bodies: Polished interior surfaces reduce fouling and improve heat transfer
Storage tanks: Smooth finish prevents product adhesion and simplifies cleaning
Heat exchanger plates: Polished surfaces improve heat transfer efficiency and reduce scaling
Specific Electronics Applications:
In battery manufacturing, polished Ni201 plates serve as:
Busbars: Low contact resistance ensures efficient current distribution
Contact plates: Uniform surface enables consistent weld quality for battery tab connections
Current collectors: Smooth surface minimizes contact resistance and improves battery performance
3. Q: What are the critical considerations for achieving a high-quality polished finish on UNS N02201 plate?
A: Achieving a high-quality polished finish on UNS N02201 plate requires careful attention to material condition, polishing sequence, and process parameters. Nickel's unique characteristics-softness, ductility, and work-hardening tendency-demand specialized approaches.
Material Condition Requirements:
| Factor | Requirement | Rationale |
|---|---|---|
| Heat Treatment | Annealed condition (1400–1920°F, rapid cool) | Uniform grain structure enables consistent polishing; hardness 45–75 HRB |
| Surface Starting Condition | Pickled or bright annealed | Removes heavy scale; provides consistent starting surface |
| Flatness | Within ASTM B162 tolerances | Prevents uneven polishing and surface distortion |
| Grain Size | ASTM 5–8 (fine to medium) | Finer grain yields smoother finish; reduces orange peel effect |
| Cleanliness | Free from surface contaminants | Oils, greases, and embedded particles interfere with polishing |
Polishing Sequence for Mirror Finish (#8):
| Step | Abrasive Grit | Process | Purpose |
|---|---|---|---|
| 1. Rough Grinding | 80–120 grit | Belt or wheel | Remove heavy scale; flatten surface; achieve flatness |
| 2. Intermediate | 180–240 grit | Belt or wheel | Refine scratches; prepare for finer polishing |
| 3. Fine Grinding | 320–400 grit | Belt or wheel | Remove previous scratches; achieve uniform surface |
| 4. Pre-Polish | 600–800 grit | Belt or cloth | Further refinement; approach reflective finish |
| 5. Final Polish | 1200–2000 grit or diamond paste (1–6 micron) | Cloth buffing | Achieve mirror finish; remove micro-scratches |
| 6. Superfinish (optional) | Diamond paste (<1 micron) | Cloth or felt | Ultra-smooth surface; minimal particle generation |
Critical Process Parameters:
| Parameter | Recommendation | Significance |
|---|---|---|
| Pressure | Light, consistent | Excessive pressure generates heat and causes work hardening |
| Speed | Moderate (1000–3000 SFPM) | High speeds cause overheating; low speeds reduce efficiency |
| Abrasive Selection | Aluminum oxide or silicon carbide for initial steps; diamond for final | Appropriate abrasive hardness prevents excessive cutting |
| Coolant/Lubricant | Water-soluble or petroleum-based | Prevents overheating; flushes removed material; improves finish |
| Grit Progression | Incremental; avoid grit jumps | Prevents deep scratches that require additional passes |
| Tool Condition | Fresh abrasives; replace regularly | Worn abrasives cause inconsistent finish and overheating |
Common Challenges and Solutions:
| Challenge | Cause | Solution |
|---|---|---|
| Overheating/Burning | Excessive pressure or speed | Reduce pressure; increase speed; use coolant; allow cooling between passes |
| Work Hardening | Excessive pressure; insufficient coolant | Use sharp abrasives; maintain light pressure; frequent coolant application |
| Orange Peel Effect | Coarse grain structure; over-polishing | Specify fine grain material; avoid excessive polishing passes |
| Surface Contamination | Cross-contamination from abrasives | Use dedicated polishing tools; thorough cleaning between steps |
| Non-Uniform Finish | Inconsistent pressure; worn abrasives | Maintain consistent technique; replace abrasives regularly |
| Carbide Pullout | Excessive carbon or inclusions | Specify low carbon Ni201; ensure proper base material quality |
Post-Polishing Treatment:
After polishing, UNS N02201 plates require:
Degreasing: Removal of polishing compounds and lubricants using alkaline or solvent cleaners
Passivation: Chemical treatment (typically nitric acid) to enhance corrosion resistance
Rinse and Dry: Deionized water rinse followed by clean air or nitrogen drying
Protective Coating: Temporary protective film or interleaving for shipping and storage
Inspection: Surface roughness verification per specification
4. Q: What are the quality standards and inspection methods for polished UNS N02201 plate?
A: Quality assurance for polished UNS N02201 plate involves multiple inspection methods to verify surface finish, dimensional accuracy, and material integrity. Adherence to recognized standards ensures consistency and suitability for critical applications.
Applicable Specifications:
| Standard | Title | Relevance |
|---|---|---|
| ASTM B162 | Standard Specification for Nickel Plate, Sheet, and Strip | Base material specification for UNS N02201 |
| ASME SB-162 | ASME Boiler and Pressure Vessel Code version | Pressure vessel applications |
| ASTM A480 | General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate | Surface finish definitions (commonly referenced) |
| ISO 4287 | Geometrical Product Specifications - Surface Texture | Surface roughness measurement methods |
| ASME B46.1 | Surface Texture (Surface Roughness, Waviness, and Lay) | US standard for surface finish characterization |
| ASTM B912 | Standard Specification for Passivation of Nickel Alloys | Passivation requirements for corrosion resistance |
Surface Finish Inspection:
| Inspection Method | Measurement | Acceptance Criteria |
|---|---|---|
| Contact Profilometer | Ra (average roughness); Rz (peak-to-valley); Rmax | Ra per specification (e.g., ≤ 8 microinches for #8 finish) |
| Non-Contact Optical Profilometer | 3D surface topography; areal roughness (Sa, Sq) | High-precision measurement for semiconductor and medical applications |
| Visual Comparison | Surface appearance; reflectivity | Comparison to standard samples (e.g., #4, #6, #8) |
| Gloss Meter | Light reflectivity at specified angles | Quantitative reflectivity for mirror finishes |
| Microscopic Inspection | Surface defects at magnification | Detection of micro-scratches, pits, inclusions |
Dimensional and Flatness Requirements:
| Parameter | Typical Tolerance | Measurement Method |
|---|---|---|
| Thickness | ±10% (or tighter per agreement) | Micrometer; ultrasonic gauge |
| Flatness | 0.010–0.060 inches per foot (varies by thickness and size) | Straightedge; feeler gauge; granite surface table |
| Length/Width | ±0.125 inches (or tighter per agreement) | Tape measure; laser measurement |
Surface Defect Classification:
| Defect Class | Defect Type | Acceptability | Inspection Method |
|---|---|---|---|
| Critical | Burns, cracks, pits exposing base metal | None acceptable | Visual; dye penetrant |
| Major | Scratches exceeding specified depth, non-uniform finish | None exceeding specification | Visual; profilometer |
| Minor | Fine scratches within tolerance, slight color variation | Acceptable per specification | Visual; comparison samples |
| Process | Orange peel, minor swirl marks | Acceptable per specification | Visual; grain structure assessment |
Material Verification:
| Verification | Method | Purpose |
|---|---|---|
| Positive Material Identification (PMI) | X-ray fluorescence (XRF) or optical emission spectroscopy | Verify nickel content; confirm grade; detect contamination |
| Carbon Content Verification | Combustion analysis | Ensure carbon ≤ 0.02% for Ni201 grade |
| Hardness Testing | Rockwell B or Brinell | Confirm annealed condition (45–75 HRB) |
| Thickness Verification | Ultrasonic or mechanical measurement | Confirm gauge throughout plate |
Documentation Requirements:
For polished UNS N02201 plate, quality documentation typically includes:
Mill Test Report (MTR): Base material certification with heat number, chemical analysis, mechanical properties
Surface Finish Certification: Documented Ra values; method of measurement; traceability to specification
Dimensional Report: Verified thickness, length, width, flatness
Inspection Log: Records of visual, dimensional, and nondestructive testing
Traceability Documentation: Heat number transferred through polishing process to final plate
Passivation Certificate: For applications requiring chemical treatment
For critical applications such as semiconductor manufacturing or pharmaceutical processing, additional cleanliness verification-such as particle count testing, surface contamination analysis (GC-MS), or ultra-pure water rinse testing-may be required.
5. Q: What are the procurement and cost considerations for polished UNS N02201 plate?
A: Procurement of polished UNS N02201 plate requires balancing material quality, surface finish requirements, and cost. Understanding the factors that influence pricing and lead times enables buyers to make informed purchasing decisions.
Cost Factors for Polished Ni201 Plate:
| Factor | Impact on Cost | Explanation |
|---|---|---|
| Base Material (Ni201) | Primary cost driver | Nickel content 99.0% minimum; LME nickel price influences base cost; Ni201 typically carries premium over Ni200 |
| Thickness | Inverse relationship | Thin gauges (0.010–0.032 inches) carry premium due to processing complexity and risk of distortion |
| Surface Finish | Progressive premium | #4 (brushed): base; #6 (satin): +10–20%; #8 (mirror): +25–50%; superfinish: +50–100% |
| Plate Size | Size-related premium | Large plates (>48 inches wide) require specialized equipment; small precision cuts carry per-piece premiums |
| Quantity | Volume discounts | Larger orders (2,000+ lbs) achieve lower per-pound pricing; smaller orders (under 500 lbs) carry premium |
| Certification | Additional cost | ASME Code, NACE, or special certifications add 5–15% |
| Lead Time | Premium for expediting | Stock material: 1–2 weeks; custom polished: 4–8 weeks |
| Traceability | Documentation cost | Full heat traceability through polishing adds 5–10% |
Thickness vs. Polishing Cost Relationship:
| Thickness Range | Polishing Complexity | Relative Cost |
|---|---|---|
| 0.010–0.032 inches (thin sheet) | High; risk of distortion; requires specialized fixturing | Highest per lb |
| 0.032–0.125 inches (sheet) | Standard; good stability | Moderate |
| 0.125–0.500 inches (plate) | Standard; heavier equipment required | Lower per lb (base material) |
| >0.500 inches (heavy plate) | Higher; specialized equipment; multiple passes | Higher per lb for polishing |
Procurement Strategies for Cost Optimization:
| Strategy | Approach | Potential Savings |
|---|---|---|
| Specify Minimum Required Finish | Select #4 or #6 when mirror finish not required | 10–30% vs. #8 finish |
| Consolidate Orders | Combine multiple plates into single purchase order | 5–15% volume discount |
| Standard Plate Sizes | Purchase standard 48×96 inch plates rather than custom sizes | 10–20% |
| Pickled Base Material | Start with pickled finish rather than hot-rolled black | Reduced polishing passes; 10–25% savings |
| Stock Availability | Purchase from distributor stock rather than mill direct | Reduced lead time; no MOQ; often competitive pricing |
| Long-Term Agreement | Commit to annual volume for price stability | 5–10% discount; priority allocation |
| Off-Grade Material | Slightly off-spec material for non-critical applications | 10–30% (verify suitability) |
Supplier Selection Criteria:
| Factor | What to Look For |
|---|---|
| Mill or Distributor | Established suppliers with documented quality systems (ISO 9001, AS9100) |
| Polishing Capability | In-house polishing equipment; ability to achieve specified finishes; experience with nickel alloys |
| Quality Assurance | Surface finish measurement equipment; documented inspection processes; certified technicians |
| Traceability | Ability to maintain heat number traceability through polishing process |
| Lead Time | Stock availability; realistic polishing lead times; expediting options |
| Industry Experience | Track record in target industry (food, pharma, semiconductor, chemical) |
| Certifications | ASME Code, NACE, or industry-specific approvals as required |
Critical Procurement Checklist:
When purchasing polished UNS N02201 plate:
Specify Complete Standard: ASTM B162 UNS N02201, annealed condition
Define Finish: Surface finish designation (e.g., #8 mirror) and Ra value
State Dimensions: Thickness, width, length, tolerances (flatness, straightness)
Require MTR: Base material certification with heat number traceability
Specify Inspection: Surface finish verification method; flatness requirements; acceptance criteria
Define Packaging: Protective interleaving or film to prevent scratching; appropriate crating for shipment
Maintain Traceability: Heat number must be transferred through polishing and marked on final product
Additional Certifications: ASME SB-162, NACE MR0175, or other as required
Value vs. Cost Consideration:

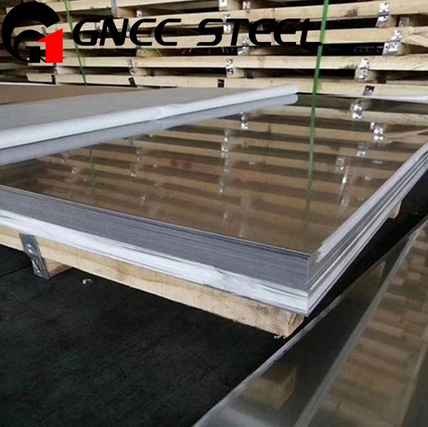

While polished UNS N02201 plate commands a significant premium over standard mill finish material, the investment is justified when:
Corrosion resistance requires a smooth, crevice-free surface that eliminates corrosion initiation sites
Cleanability is critical for food, pharmaceutical, or semiconductor applications where contamination must be avoided
Aesthetic appearance is required for architectural or consumer-facing applications
Weld quality benefits from consistent surface condition and reduced contamination
Process efficiency improves with reduced fouling and easier cleaning
By understanding the factors that influence cost and implementing strategic procurement practices, buyers can achieve competitive pricing on polished UNS N02201 plate while ensuring the material meets the stringent surface finish, corrosion resistance, and traceability requirements of their applications.
