In high-risk industrial environments, the material you choose is your only line of defense against catastrophic failure. Inconel 625 alloy (UNS N06625) is designed for environments where standard stainless steel and even some high-temperature alloys would fail immediately.
At Gnee Alloy, we eliminate these risks. As a specialized manufacturer, we refine 625 using a dual VIM (vacuum induction melting) + VAR (vacuum arc remelting) process to ensure absolutely zero-defect quality and superior industrial durability.
Click here for an Inconel 625 product quote

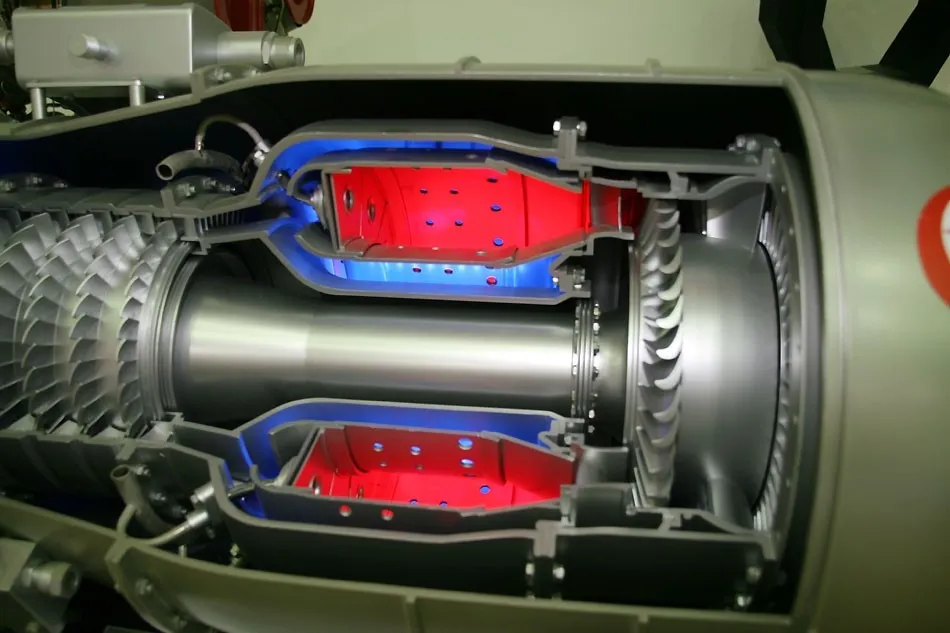

Performance of Inconel 625 alloy in marine and aerospace applications
Performance of Inconel 625 alloy in marine and aerospace applications
Inconel 625 is a high-quality nickel-chromium superalloy renowned for its high mechanical strength over extreme temperature ranges and excellent resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking. Its main advantage lies in its solid solution strengthening using molybdenum and niobium, eliminating the need for complex hardening processes.
What are the disadvantages of Inconel 625?
Disadvantages: High cost: Due to its complex composition and high production costs, Inconel 625 is significantly more expensive than many other materials. Difficult to process: The toughness of Inconel 625 makes it more difficult to process, requiring specialized tools and techniques.
1. Inconel 625 alloy chemical composition (wt%)
| Element | Content (%) | Function |
|---|---|---|
| Nickel (Ni) | ≥ 58.0 (Balance) | Matrix element; corrosion resistance and high-temperature stability |
| Chromium (Cr) | 20.0 – 23.0 | Oxidation and corrosion resistance |
| Molybdenum (Mo) | 8.0 – 10.0 | Core solid-solution strengthening; pitting and crevice corrosion resistance |
| Niobium (Nb) | 3.15 – 4.15 | Solid-solution strengthening; carbide stabilizer |
| Iron (Fe) | ≤ 5.0 | Residual element |
| Titanium (Ti) | ≤ 0.40 | Supplementary strengthening |
| Aluminum (Al) | ≤ 0.40 | Supplementary strengthening |
| Carbon (C) | ≤ 0.10 | Low carbon for weldability and toughness |
| Manganese (Mn) | ≤ 0.50 | Deoxidizer |
| Silicon (Si) | ≤ 0.50 | Deoxidizer |
| Phosphorus (P) | ≤ 0.015 | Ensures toughness |
| Sulfur (S) | ≤ 0.015 | Ensures hot workability |
| Cobalt (Co) | ≤ 1.0 | Residual element |
2. High-temperature mechanical properties of Inconel 625 alloy
| Temp (°C) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Strength Retention (%) |
|---|---|---|---|---|
| 20 (RT) | ≥ 830 | ≥ 415 | ≥ 30 | 100% |
| 300 | ~750 | ~380 | ~35 | 90% |
| 400 | ~720 | ~370 | ~38 | 87% |
| 500 | ~680 | ~360 | ~40 | 82% |
| 550 | ~650 | ~350 | ~42 | 78% |
| 600 | ~600 | ~330 | ~45 | 72% |
| 650 | ~550 | ~300 | ~48 | 66% |
| 700 | ~500 | ~270 | ~50 | 60% |
| 800 | ~400 | ~220 | ~55 | 48% |
Click here to download the Inconel 625 alloy PDF file
3. Inconel 625 Marine and Aerospace Applications
🌊 Inconel 625 Marine Applications
In marine and nearshore environments, Inconel 625 is highly favored for its resistance to seawater corrosion, high flow rates, and localized corrosion.
Key Applications: Submarine propulsion motors, drive shafts, propellers, propeller blades, steam turbine lining bellows, and submarine communication cable sheaths.
Performance Advantages: High tensile strength and creep rupture strength, with a pitting equivalent (PREN) exceeding 45, making it more durable than super duplex stainless steel under highly acidic or high-salinity conditions.
✈️ Inconel 625 Aerospace Applications
In the aerospace field, this alloy's exceptional heat resistance and surface stability at temperatures exceeding 650°C (1200°F) make it a critical material for handling harsh flight conditions.
Key Applications: Aircraft engine exhaust systems, turbine shroud rings, seals, thrust reversers, and high-altitude ducts.
Performance Advantages: This alloy exhibits excellent oxidation resistance and zero toughness loss at sub-zero/low temperatures. This reliability prevents structural fatigue and cracking under dynamic loads in jet engines.
Why Choose Gnee as Your Nickel-Based Alloy Supplier
✅️Direct Factory Price: Eliminate middleman markups and secure the best rates for bulk infrastructure projects.
✅️100% NDT Integrity: Every meter of material undergoes Ultrasonic (UT) and Eddy Current (ET) testing to ensure zero surface or internal defects.
✅️Global Logistics: We provide Fast Global Shipping to Europe, USA, and Southeast Asia within 5-7 business days for stock items.
✅️Total Traceability: Every kg of metal is documented with a full Mill Test Certificate from original heat analysis to final dispatch.
Gnee Alloy 625 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Alloy 625 Product Packing
⚒️Gnee Alloy Production Line Equipment and Product Testing
Contact us for the latest export price quote for inconel 625 Alloy
FAQ
Q1: Does Inconel 625 suffer from "Stress Corrosion Cracking"?
A: No. Due to its high nickel content (>58%) and solid-solution strengthening, Inconel 625 is virtually immune to chloride-ion SCC, making it vastly superior to 316L or Duplex steels.
Q2: Is Inconel 625 harder to machine than 316L?
A: Yes. It work-hardens rapidly. However, as a specialist manufacturer, we supply bars in an optimized Solution Annealed state to maximize your CNC tool life and reduce processing costs.
Q3: Can you provide bright annealed 625 tubing for fuel sensors?
A: Absolutely. We offer Bright Annealed (BA) finish with a mirror ID (Ra ≤ 0.4μm), essential for zero-contamination fluid transport.
Q4: Do you support small trial orders for material validation?
A: Yes. We support Innovation and R&D projects with Flexible MOQs for certified specimens and test coupons.
