1. What are the fundamental compositional differences between Incoloy 800, 800H, 800HT, and Incoloy 825, and how do these differences dictate their primary application sectors in the oil & gas and chemical processing industries?
While all are nickel-iron-chromium alloys, their specific compositions and resulting properties target distinct service environments.
Incoloy 800 series is designed for high-temperature strength and oxidation resistance. Its basic composition is approximately 32.5% Ni, 21% Cr, and balanced Fe, with controlled additions of titanium and aluminum.
Incoloy 800: The base grade with standard carbon content.
Incoloy 800H: The "H" stands for high temperature. It has a higher carbon content (0.05-0.10%) and is annealed to produce a coarse grain structure, providing superior creep-rupture strength at temperatures above 540°C (1000°F).
Incoloy 800HT: Similar to 800H but with even tighter controls on aluminum and titanium (Al+Ti ≥ 0.85%) for even better high-temperature stability and strength.
Primary Applications (800H/HT): Their niche is in high-temperature, corrosive process environments. In oil & gas, this includes pyrolysis tubes, heater tubes, and radiant tubes in ethylene cracking furnaces, where they withstand temperatures from 850°C to 1100°C in carburizing and oxidizing atmospheres. In chemical processing, they are used in steam methane reformer assemblies, hydrogen plants, and waste incineration systems.
Incoloy 825, in contrast, is optimized for exceptional aqueous corrosion resistance, particularly against reducing acids. Its composition (approx. 42% Ni, 21.5% Cr, 3% Mo, 2.2% Cu, balanced Fe) is distinctly different. The high nickel content provides resistance to chloride-ion stress-corrosion cracking (SCC). Molybdenum confers resistance to pitting and crevice corrosion in chloride environments, while copper enhances resistance to sulfuric and phosphoric acids.
Primary Applications (825): Its domain is aggressive, wet, and often lower-temperature chemistry. In oil & gas, it is critical for downhole tubing, sour service components, and process piping handling produced water containing chlorides, H₂S, and CO₂. In chemical processing, it is the standard for sulfuric and phosphoric acid pickling systems, seawater cooling piping, nuclear fuel reprocessing, and offshore saltwater piping. The seamless pipe form is essential for high-pressure, critical service where weld integrity in welded tubing could be a liability.
2. Why is the "seamless" manufacturing process particularly critical for Incoloy 800/825 pipes intended for high-pressure, high-temperature, or corrosive service?
The seamless process, where the pipe is extruded or pierced from a solid billet, is non-negotiable for demanding applications due to three core advantages over welded (seamed) pipe:
Homogeneous Structure & Superior Integrity: A seamless pipe has a continuous, uniform grain structure around its entire circumference. This eliminates the inherent weakness of a longitudinal weld seam, which is a potential site for:
Corrosion Initiation: Weld zones can have minor variations in microstructure (heat-affected zones) that are more susceptible to pitting, crevice corrosion, or stress corrosion cracking in aggressive media like chlorides or wet H₂S.
Flaws: Despite advancements, welds can contain inclusions, porosity, or incomplete fusion, which are stress concentrators and initiation points for failure under cyclic pressure (fatigue) or creep at high temperatures.

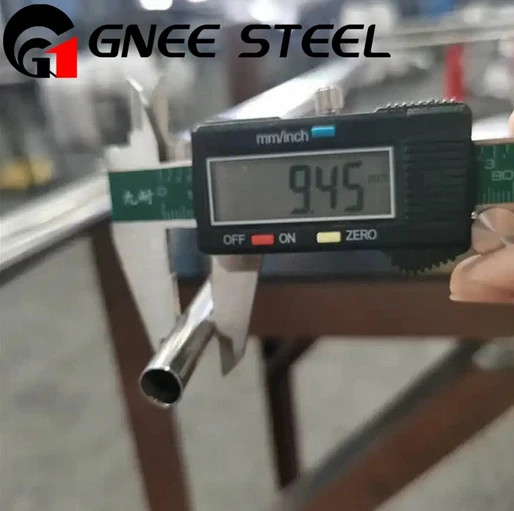

Enhanced Pressure Containment: The absence of a weld seam means the pipe has consistent mechanical properties throughout. This allows for higher safety margins and reliable performance in high-pressure systems like downhole tubing, hydraulic lines, or high-pressure heat exchanger tubing. The wall thickness is also more uniform.
Improved High-Temperature Performance: For grades like 800H/HT used in creep regimes, a uniform, controlled microstructure is paramount. The seamless process, followed by proper solution annealing and (for 800H/HT) grain-coarsening heat treatment, ensures predictable and optimal creep-rupture strength. A weld seam could be a localized area of fine grains or altered precipitate structure, leading to premature failure under long-term stress at temperature.
In essence, seamless pipe is chosen for the most critical services where failure is not an option, justifying its higher cost compared to welded alternatives.
3. What are the key corrosion mechanisms that Incoloy 825 seamless pipe is specifically designed to combat, and how does its composition address each one?
Incoloy 825 is a versatile "chemical warrior" designed to handle a cocktail of corrosive agents. Its composition is a direct response to specific failure mechanisms:
Chloride-Induced Stress Corrosion Cracking (Cl-SCC): This is a brittle failure of normally ductile material under tensile stress in the presence of chlorides and oxygen. The high nickel content (≥42%) is the primary defense, making the alloy immune to Cl-SCC for all practical purposes in most process environments. This is crucial for seawater cooling, offshore applications, and salt-containing process streams.
Pitting and Crevice Corrosion: Localized attack in stagnant chloride solutions or under deposits/gaskets. The addition of 3% Molybdenum significantly elevates the alloy's critical pitting temperature (CPT) and resistance to crevice corrosion, making it suitable for brackish water, seawater, and chloride-laden process liquors.
Reducing Acids (Sulfuric, Phosphoric): Resistance to sulfuric acid is a key strength. The combination of nickel and copper provides excellent resistance to dilute sulfuric acid and good resistance to phosphoric acid. This makes 825 ideal for acid pickling lines, acid mine drainage systems, and phosphate fertilizer processing equipment.
Oxidizing Environments & Polythionic Acid SCC: The 21.5% Chromium forms a stable, protective chromium oxide (Cr₂O₃) passive film, providing resistance to nitric acid, nitrates, and oxidizing salts. This chromium level also allows the alloy to be effectively stabilized against polythionic acid stress corrosion cracking (PASCC) during shutdowns in refinery/ petrochemical service through proper passivation procedures.
Sulfidic and Sour Corrosion: In oil & gas environments containing H₂S (sour service), the alloy's high nickel and chromium content provides good resistance to sulfide scaling and cracking, especially when temperatures and chloride levels are also elevated.
4. In fabrication, what are the critical considerations for welding and post-weld heat treatment (PWHT) of Incoloy 800/825 seamless piping systems?
Improper fabrication can completely undermine the inherent corrosion and high-temperature properties of these premium alloys.
Welding Considerations:
Filler Metal Selection: Matching or over-alloyed filler metals must be used.
Incoloy 800/800H/800HT: Typically welded with Inconel 82 (ERNiCr-3) or Incoloy 800HT filler (ERNiFeCr-1). These fillers match the base metal's high-temperature strength and oxidation resistance.
Incoloy 825: Welded with INCO-Weld 825/INCO-Filler 825 (ERNiCrMo-3). Using a stainless steel filler (like 309) would create a low-molybdenum, crack-sensitive weld unable to resist pitting.
Process & Technique: Low heat input processes like Gas Tungsten Arc Welding (GTAW/TIG) are preferred for root and hot passes to maintain corrosion resistance. Shielded Metal Arc (SMAW/Stick) can be used for fill and cap. Stringent cleaning to remove oil, grease, and any sulfur/lead contaminants is vital. The "butter and weld" technique is often used for dissimilar joints to carbon steel.
Post-Weld Heat Treatment (PWHT):
Incoloy 800H/HT: PWHT is generally required for service above 540°C (1000°F). The standard is a solution anneal at 1100-1175°C (2012-2147°F) followed by rapid cooling (water quenching). This redissolves chromium carbides that precipitate in the weld HAZ, restores ductility, and for 800H/HT, allows for the development of the necessary coarse grain structure. Stress relief at lower temperatures (e.g., 850°C) is not recommended as it can lead to sensitization.
Incoloy 825: PWHT is typically NOT required or recommended for standard corrosion service. The alloy is used in the solution-annealed condition. If PWHT is deemed necessary for stress relaxation after severe fabrication, it must be a full solution anneal (900-925°C followed by rapid quench) to avoid sensitization in the critical 425-870°C range where harmful chromium carbides and intermetallic phases form, destroying corrosion resistance.
5. When specifying Incoloy 800H/HT or 825 seamless pipe for a project, what are the essential ASTM/ASME material and testing standards that must be referenced to ensure quality and fitness-for-purpose?
Precise standardization is key to reliability. The following are core standards:
For Incoloy 800/800H/800HT Seamless Pipe:
Material Standard: ASTM B407 / ASME SB407 - Standard Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube. This standard covers the chemical composition, mechanical properties, and general requirements.
Grade Differentiation: The specific UNS number must be called out:
Incoloy 800: UNS N08800
Incoloy 800H: UNS N08810 (with carbon ≥0.05%, Al+Ti ≥0.85%)
Incoloy 800HT: UNS N08811 (with carbon ≥0.05%, Al+Ti ≥0.85%)
Testing Standards:
ASTM A999 / ASME SA999: General requirements for alloy steel pipe. Often invoked for supplementary requirements like hydrostatic testing, non-destructive electric testing (NDE), and certification.
Hydrostatic Test: Per ASTM B407, usually tested to a pressure calculated by the standard formula.
Non-Destructive Examination (NDE): ASTM E213 (Ultrasonic Testing) or ASTM E709 (Magnetic Particle Testing - for ferromagnetic materials, less common for these) may be specified for flaw detection.
Grain Size Check for 800H/HT: ASTM E112 is used to verify the coarse grain size (typically ASTM No. 5 or coarser) required for optimal creep resistance.
For Incoloy 825 Seamless Pipe:
Material Standard: ASTM B423 / ASME SB423 - Standard Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy (UNS N08825) Seamless Pipe and Tube.
Testing Standards:
ASTM A999 / ASME SA999 again applies for general pipe requirements.
Corrosion Testing (if specified): While not always a mandatory delivery condition, intergranular corrosion tests per ASTM G28 Method A (for detecting chromium depletion) can be specified for critical service to ensure the material is in the properly solution-annealed, non-sensitized condition.
Hydrostatic and NDE: Similar requirements as above, with UT being the primary NDE method.
For all projects, the applicable ASME B31.3 Process Piping Code governs design, fabrication, inspection, and testing of the installed piping system, referencing these material standards.
