1. How is Ti-6Al-4V made?

Ti-6Al-4V, a titanium alloy composed of 90% titanium, 6% aluminum, and 4% vanadium, is produced through a multi-step process that ensures precise control over its composition and microstructure. Here's a detailed breakdown:

Ore Extraction: Titanium is primarily sourced from ores like ilmenite (FeTiO₃) and rutile (TiO₂). These ores are mined and then processed to remove impurities.

Titanium Sponge Production: The ore is converted to titanium tetrachloride (TiCl₄) via chlorination. TiCl₄ is then reduced using magnesium (Kroll process) or sodium (Hunter process) in an inert atmosphere (argon) to produce porous "titanium sponge"-a pure form of titanium.

Alloying: The titanium sponge is combined with aluminum and vanadium in precise proportions (6% Al, 4% V by weight) in a vacuum arc remelting (VAR) furnace or electron beam melting (EBM) furnace. This melting step ensures uniform distribution of alloying elements and removes gases (e.g., oxygen, nitrogen) that could weaken the material.

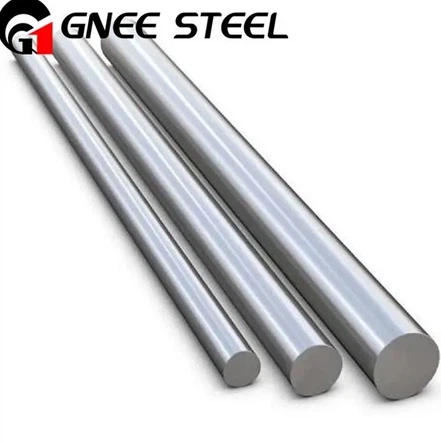

Processing: The solidified alloy ingot is hot-worked (forged, rolled, or extruded) at high temperatures (typically 800–1000°C) to shape it into desired forms (sheets, bars, tubes) and refine its grain structure, enhancing mechanical properties.

Heat Treatment: Final heat treatments (e.g., annealing at 700–900°C followed by cooling) are applied to optimize strength, ductility, and fatigue resistance by controlling the alloy's microstructure (e.g., forming a mixture of α and β phases).

2. How strong is Ti-6Al-4V?

Ti-6Al-4V is renowned for its exceptional strength-to-weight ratio, making it a staple in high-performance applications. Its mechanical properties vary slightly based on processing (e.g., annealed vs. solution-treated and aged), but typical values include:

Tensile Strength: 860–930 MPa (125,000–135,000 psi) in the annealed condition. This can increase to ~1100 MPa (160,000 psi) with heat treatment (e.g., β-annealing).

Yield Strength: 800–850 MPa (116,000–123,000 psi) when annealed, rising to ~1000 MPa (145,000 psi) after strengthening heat treatments.

Elongation (Ductility): 10–15% in the annealed state, ensuring it can deform without fracturing under load.

Fatigue Strength: Approximately 400–500 MPa (58,000–72,000 psi) for long-term cyclic loading, critical for aerospace and medical implants.

To put this in context: Ti-6Al-4V is stronger than many steels (e.g., some carbon steels) while being about 40% lighter. It retains strength at elevated temperatures (up to ~400°C) and resists corrosion, further enhancing its utility.

3. Is Ti-6Al-4V expensive?

Yes, Ti-6Al-4V is relatively expensive compared to common metals like steel or aluminum, due to several factors:

Complex Production: Extracting titanium from ore and refining it into a pure sponge is energy-intensive and costly. The Kroll process, for example, is slow and requires high temperatures and inert atmospheres.

Alloying and Processing: Adding high-purity aluminum and vanadium (both costly metals) and specialized melting/working steps (e.g., vacuum processing) drive up production costs.

Scalability: Titanium production is less scalable than steel or aluminum, limiting supply and keeping prices high.

Despite its expense, its unique combination of strength, lightness, and corrosion resistance justifies its use in critical applications like aerospace (aircraft frames, engine components), medical implants (joint replacements), and high-performance sports equipment.
