1. Q: What is ASTM Grade 11 titanium alloy, and how does its composition and properties compare to other commercially pure and palladium-containing titanium grades?
A: ASTM Grade 11 (GR11) is a palladium-stabilized commercially pure titanium alloy, formally designated as Ti-0.15Pd (titanium with approximately 0.12% to 0.25% palladium). It is essentially ASTM Grade 1 (GR1) with the strategic addition of palladium, a noble metal from the platinum group. This small but critically important alloying addition transforms the corrosion performance of the material without significantly altering its mechanical characteristics.
In terms of mechanical properties, GR11 is nearly identical to GR1. It exhibits the lowest strength among titanium grades, with a minimum tensile strength of 240 MPa (35 ksi), a yield strength of approximately 170 MPa (25 ksi), and excellent ductility with elongation typically exceeding 24%. This places GR11 at the extreme end of formability and weldability within the titanium family.
The distinction lies in corrosion resistance. While GR1 offers excellent performance in oxidizing environments, it suffers from limitations in reducing acid conditions. The addition of 0.15% palladium shifts the corrosion potential of titanium to a more noble (cathodic) level, enabling the material to remain passive in reducing acid environments where standard commercially pure titanium would corrode rapidly. This is achieved through a mechanism known as cathodic modification-the palladium-rich regions on the surface act as efficient cathodic sites, promoting the repassivation of the titanium oxide film even in the absence of oxidizers.
Compared to other palladium-containing grades:
GR7 (Ti-0.15Pd) is based on GR2, offering higher strength (345 MPa minimum tensile) than GR11
GR11 is the low-oxygen, high-ductility version based on GR1
GR16 and GR17 are palladium-containing variants of GR4 and GR1 respectively, with varying oxygen limits
For applications requiring maximum formability combined with enhanced reducing acid resistance, GR11 is the preferred choice over GR7, as its lower oxygen content provides superior ductility for severe forming operations.
2. Q: What specific corrosion environments justify the selection of ASTM GR11 over standard GR1 or GR2, and what is the mechanism by which palladium enhances corrosion resistance?
A: The selection of ASTM GR11 is justified specifically in environments where standard commercially pure titanium (GR1 or GR2) exhibits marginal or inadequate corrosion resistance. The primary target environments are reducing acids, particularly hydrochloric acid (HCl) , sulfuric acid (H₂SO₄) , and formic acid, especially at elevated temperatures and in deaerated (oxygen-free) conditions.
In hydrochloric acid, for example, GR1 exhibits acceptable corrosion rates (typically <0.1 mm/year) only at concentrations below 3% and temperatures below 40°C. Beyond these limits, the passive oxide film breaks down, and corrosion accelerates rapidly. GR11, by contrast, can withstand up to approximately 10% HCl at boiling point and shows excellent resistance in higher concentrations at moderate temperatures. Similarly, in sulfuric acid, GR11 extends the useful service range from approximately 5% (for GR1) to 20% or higher at elevated temperatures.
The corrosion resistance mechanism involves cathodic modification through noble metal addition. Palladium particles, which are more noble than titanium, are distributed throughout the microstructure. When the surface is exposed to a corrosive electrolyte, these palladium-rich regions act as efficient cathodic sites for the hydrogen evolution reaction. This shifts the corrosion potential of the titanium matrix into the passive region, where the protective titanium dioxide (TiO₂) film can form and remain stable. In essence, the palladium addition enables the titanium to "self-passivate" even in environments lacking dissolved oxygen or other oxidizers.
Importantly, the palladium content is optimized at 0.12–0.25% to achieve this electrochemical effect without significantly increasing material cost. For extremely aggressive reducing environments, higher palladium grades such as GR12 (Ti-0.3Mo-0.8Ni) or GR17 (with higher palladium content) may be specified. However, for the vast majority of chemical processing applications where GR1 is marginal, GR11 provides the optimal balance of corrosion resistance, formability, and cost.

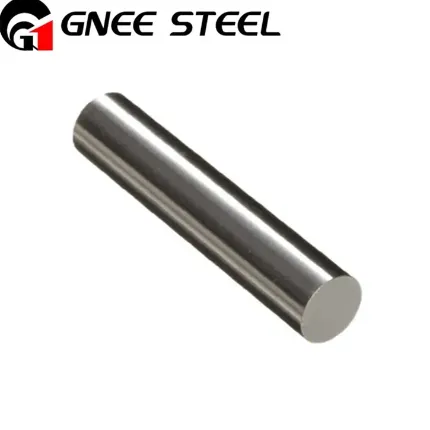

3. Q: What are the typical industrial applications for ASTM GR11 round bars, and why is the bar form particularly suited to these applications?
A: ASTM GR11 round bars are employed in a range of demanding chemical processing, pharmaceutical, and marine applications where the combination of corrosion resistance and formability is critical. The bar form is particularly valued for components that require machining, forging, or threading, as it provides the raw material geometry necessary for producing complex parts with precise tolerances.
Key applications include:
Heat exchanger tubing and tube sheets: GR11 is used for heat exchanger tubes and the tube sheets into which they are rolled or welded. In chemical plants handling hydrochloric or sulfuric acid streams, the palladium addition ensures long-term integrity. The bar form is essential for machining tube sheets, which require precise hole patterns and high-quality surface finishes for reliable tube-to-tubesheet joints.
Valve components: Valve stems, seats, and trim components are frequently manufactured from GR11 bar. These components are subjected to high localized stresses and erosive-corrosove conditions. The palladium addition provides the necessary corrosion resistance in reducing acid service, while the bar form allows for precision machining of threads, sealing surfaces, and complex internal geometries.
Fasteners and bolting: In aggressive chemical environments, standard stainless steel fasteners are inadequate. GR11 bar is machined into bolts, studs, and nuts for flange connections, pressure vessels, and piping systems. The material's excellent ductility ensures that fasteners can be properly torqued without risk of brittle fracture.
Pump shafts and impellers: For pumps handling corrosive fluids, GR11 bar provides the combination of strength, corrosion resistance, and fatigue performance required for rotating components. The bar form allows for the production of long, straight shafts with precise concentricity.
Pharmaceutical and bioprocessing equipment: In pharmaceutical manufacturing, where product purity is paramount, GR11 is used for components that contact corrosive cleaning agents or process fluids. The absence of toxic alloying elements (palladium is biologically inert) and the material's excellent cleanability make it suitable for hygienic applications.
The bar form is typically supplied in the annealed condition, ensuring uniform microstructure and consistent machinability. For critical applications, bars are often centerless ground to precise tolerances, eliminating surface defects and ensuring that machined components meet stringent dimensional requirements.
4. Q: What are the critical manufacturing considerations and quality control requirements for ASTM GR11 round bars intended for ASME Section VIII pressure vessel construction?
A: When ASTM GR11 round bars are specified for ASME Section VIII pressure vessel construction-such as for flange bolting, nozzle reinforcements, or internal supports-the manufacturing and quality control requirements are governed by a combination of ASTM B348 (the base specification) and the supplementary requirements of the ASME Boiler and Pressure Vessel Code.
Manufacturing considerations:
The palladium addition in GR11 requires careful control during melting to ensure homogeneous distribution. The alloy is typically produced using vacuum arc remelting (VAR) or plasma arc melting (PAM) processes, which provide the necessary control over chemistry and minimize the risk of segregation. Palladium, being a dense noble metal, must be uniformly distributed to avoid localized areas of either excessive or deficient palladium content.
Quality control requirements for ASME applications:
Material certification: The mill must hold an ASME Certificate of Authorization and maintain quality systems compliant with ASME Section II, Part A. Each bar shipment must include a certified Material Test Report (MTR) documenting compliance with both ASTM B348 and the applicable ASME material specification (typically SA-348).
Chemical analysis: Verification of palladium content is critical. The MTR must report the palladium analysis, typically 0.12–0.25%, and ensure that other elements meet the stringent limits of GR1 with the palladium addition. Oxygen content must be controlled to 0.18% maximum to maintain the ductility characteristics of GR1.
Non-destructive testing: For pressure-retaining applications, 100% ultrasonic testing (UT) is often mandated to detect internal flaws such as voids, inclusions, or laminations. Testing is performed per ASME Section V, with acceptance criteria typically based on a flat-bottom hole reference standard.
Heat treatment validation: GR11 bars are supplied in the annealed condition. The annealing process (typically 650–760°C followed by air cooling) must be documented and validated to ensure consistent microstructure and properties. Hardness testing is often performed to verify uniformity.
Traceability: Full traceability from the ingot melt to the finished bar is required. Each bar must be marked with the heat number, specification, and grade, allowing traceability back to the original mill certification.
For applications involving elevated temperatures, additional testing such as stress rupture testing or creep testing may be specified to verify performance under sustained loading conditions.
5. Q: How does the formability, weldability, and machinability of ASTM GR11 compare to other titanium grades, and what fabrication practices are recommended for producing high-quality components?
A: ASTM GR11 inherits the excellent formability and weldability characteristics of its base grade, GR1, while providing enhanced corrosion resistance. However, the presence of palladium introduces subtle considerations for fabrication that must be addressed to achieve optimal results.
Formability:
GR11 offers the highest ductility among palladium-stabilized titanium grades. With elongation typically exceeding 24% and a low yield-to-tensile ratio, it can be cold-formed into complex shapes without cracking. Recommended practices for forming include:
Using generous bend radii (typically 2–3 times material thickness)
Employing progressive forming operations for severe deformations
Performing intermediate stress-relief annealing if cold reduction exceeds 50%
Avoiding forming at temperatures below 10°C to prevent ductility reduction
Weldability:
GR11 exhibits excellent weldability, comparable to GR1. The palladium addition does not significantly affect the weldability characteristics. Key considerations include:
Shielding: Titanium's reactivity with oxygen, nitrogen, and hydrogen requires inert gas shielding (argon or helium) for both the weld pool and the heat-affected zone. Gas coverage must extend to the back side of the weld for full-penetration joints.
Filler metal selection: Matching filler metal (typically AWS ERTi-11) is recommended to maintain corrosion resistance in the weld zone. In less aggressive environments, ERTi-1 filler may be acceptable, but the enhanced reducing acid resistance of GR11 is best preserved with matching filler.
Weld color: Post-weld discoloration (blue, gold, or gray) indicates inadequate shielding and oxygen contamination. Such discoloration must be removed by mechanical or chemical methods before the component is placed in service.
Post-weld heat treatment: Generally not required for GR11, but may be specified for stress relief in complex weldments or to restore full ductility after significant cold work.
Machinability:
GR11's machinability is similar to GR1, which is considered fair to good among titanium grades. The material's low thermal conductivity and tendency to work harden require specific machining practices:
Tooling: Sharp, positive-rake carbide tools with wear-resistant coatings (AlTiN or TiAlN) are recommended
Coolant: High-pressure coolant (70–100 bar) is essential to evacuate chips and dissipate heat
Speeds and feeds: Lower cutting speeds (30–60 m/min for turning) with higher feed rates to avoid work hardening
Chip control: Continuous stringy chips are typical; chip breakers or interrupted cuts help manage chip formation.
