1. Q: What is Hastelloy C-276 (UNS N10276), and what makes it the preferred material for aerospace engineering heat exchangers?
A: Hastelloy C-276, designated as UNS N10276, is a nickel-molybdenum-chromium superalloy with the addition of tungsten, widely recognized as one of the most versatile corrosion-resistant alloys available. For aerospace engineering heat exchangers, it is the preferred material due to its exceptional resistance to a wide range of corrosive media, outstanding high-temperature stability, and excellent fabricability. Its unique combination of properties makes it indispensable in demanding aerospace applications where failure is not an option.
Chemical Composition: The carefully balanced composition of Hastelloy C-276 delivers its unique properties:
| Element | Composition Range | Function |
|---|---|---|
| Nickel (Ni) | Balance (approx. 57%) | Austenitic matrix; provides corrosion resistance base |
| Molybdenum (Mo) | 15.0% - 17.0% | Exceptional resistance to pitting, crevice corrosion, and reducing environments |
| Chromium (Cr) | 14.5% - 16.5% | Oxidation resistance; protection in oxidizing environments |
| Iron (Fe) | 4.0% - 7.0% | Solid-solution strengthening; cost-effectiveness |
| Tungsten (W) | 3.0% - 4.5% | Enhanced pitting resistance and high-temperature strength |
| Carbon (C) | 0.010% max | Ultra-low carbon prevents intergranular corrosion |
| Silicon (Si) | 0.08% max | Controlled to maintain thermal stability |
| Sulfur (S) | 0.030% max | Strictly limited for hot workability |
Why C-276 Excels in Aerospace Heat Exchangers:
| Property | Benefit for Aerospace Heat Exchangers |
|---|---|
| Exceptional corrosion resistance | Withstands aggressive coolants, hydraulic fluids, and combustion byproducts |
| High-temperature stability | Maintains mechanical properties from cryogenic to 540°C (1000°F) |
| Oxidation resistance | Forms protective chromium oxide scale at elevated temperatures |
| Weldability | No post-weld heat treatment required; simplifies fabrication |
| Thermal fatigue resistance | Withstands thermal cycling encountered in aerospace environments |
The Molybdenum-Chromium Synergy: The combination of molybdenum (15-17%) and chromium (14.5-16.5%) provides:
Reducing environment resistance: Molybdenum provides exceptional resistance to hydrochloric, sulfuric, and phosphoric acids
Oxidizing environment resistance: Chromium forms a stable oxide scale for protection in oxidizing conditions
Localized corrosion resistance: The high molybdenum content provides outstanding resistance to pitting and crevice corrosion
Stress corrosion cracking immunity: The nickel-rich matrix provides excellent resistance to chloride-induced stress corrosion cracking
Aerospace Heat Exchanger Applications:
| Application | Why C-276 is Selected |
|---|---|
| Fuel/oil coolers | Resists degradation from jet fuel and hydraulic fluids at elevated temperatures |
| Environmental control system (ECS) | Handles temperature extremes and corrosive condensates |
| Engine bleed air heat exchangers | Withstands high-temperature, oxidizing combustion gases |
| Hydraulic system coolers | Resists phosphate ester hydraulic fluid attack |
| Cryogenic heat exchangers | Maintains ductility at liquid hydrogen and liquid oxygen temperatures |
| Exhaust gas recirculation (EGR) | Resists sulfuric acid condensation and high-temperature corrosion |
Comparison with Other Heat Exchanger Materials:
| Property | Hastelloy C-276 | Stainless Steel 316 | Inconel 625 | Titanium |
|---|---|---|---|---|
| Pitting resistance | Excellent | Poor | Good | Excellent |
| Reducing acid resistance | Excellent | Poor | Good | Poor |
| Oxidizing acid resistance | Good | Good | Good | Excellent |
| High-temperature strength | Good | Poor | Excellent | Moderate |
| Weldability | Excellent | Excellent | Excellent | Fair |
| Cost | High | Low | High | High |
2. Q: What governing standards apply to Hastelloy C-276 plate for aerospace engineering applications, and what are the key requirements?
A: Hastelloy C-276 plate is governed by comprehensive ASTM, ASME, and AMS specifications that establish chemical composition, mechanical properties, and quality requirements for aerospace engineering applications. Understanding these standards is essential for ensuring material compliance and reliability.
Primary Material Specifications:
| Specification | Scope | Key Requirements |
|---|---|---|
| ASTM B575 | Standard specification for low-carbon nickel-chromium-molybdenum alloy plate, sheet, and strip | Chemical composition, mechanical properties, heat treatment, dimensional tolerances |
| ASME SB575 | ASME code-approved version | For pressure vessel and heat exchanger construction |
| AMS 5504 | Aerospace material specification for Hastelloy C-276 sheet and plate | Aerospace-grade requirements; stricter quality controls |
ASTM B575 Chemical Composition Requirements (UNS N10276):
| Element | Composition |
|---|---|
| Nickel | Balance (minimum 57%) |
| Molybdenum | 15.0% - 17.0% |
| Chromium | 14.5% - 16.5% |
| Iron | 4.0% - 7.0% |
| Tungsten | 3.0% - 4.5% |
| Carbon | 0.010% max |
| Silicon | 0.08% max |
| Manganese | 1.0% max |
| Sulfur | 0.030% max |
| Phosphorus | 0.040% max |
Mechanical Property Requirements (ASTM B575, Solution-Annealed):
| Property | Requirement |
|---|---|
| Tensile Strength | 100 ksi (690 MPa) minimum |
| Yield Strength (0.2% offset) | 41 ksi (283 MPa) minimum |
| Elongation | 40% minimum |
| Hardness | As agreed; typically 90-100 HRB |
Heat Treatment Requirements:
Condition: Solution-annealed
Temperature: 1120°C - 1200°C (2050°F - 2200°F)
Cooling: Rapid cooling (water quench or rapid air cool)
Purpose: Dissolve carbides and intermetallic phases; achieve optimal corrosion resistance
AMS 5504 Aerospace Requirements:
| Requirement | Details |
|---|---|
| Melting | Vacuum induction melting (VIM) or consumable electrode remelting (VAR) |
| Surface quality | Strict surface finish requirements for aerospace applications |
| Nondestructive examination | Ultrasonic or eddy current testing as specified |
| Traceability | Full heat number traceability |
| Certification | Aerospace-grade certification documentation |
Dimensional Tolerances per ASTM B575:
| Parameter | Tolerance |
|---|---|
| Thickness | Varies by width; typical ±0.005 in for sheet |
| Width | ±0.125 in |
| Length | ±0.125 in |
| Flatness | Maximum deviation per unit length |
Quality Assurance Documentation for Aerospace:
| Document | Information Provided |
|---|---|
| Mill test reports (MTRs) | Heat analysis, mechanical properties, heat treatment |
| AMS 5504 conformance | Statement of compliance with aerospace specification |
| Traceability | Heat number marking on each plate |
| NDE reports | Ultrasonic, eddy current, or other testing results |
| Third-party inspection | Independent verification (if required) |
3. Q: What are the critical heat transfer and thermal properties of Hastelloy C-276 that make it suitable for aerospace heat exchangers?
A: Hastelloy C-276 offers a unique combination of thermal properties that, combined with its exceptional corrosion resistance, make it highly suitable for aerospace heat exchanger applications. Understanding these properties is essential for optimizing heat exchanger design and performance.
Thermal Properties Summary:
| Property | Value | Significance |
|---|---|---|
| Thermal conductivity | 10.0 - 11.5 W/m·K (20°C to 400°C) | Moderate; lower than copper but comparable to stainless steels |
| Specific heat capacity | 410 - 460 J/kg·K | Determines thermal energy absorption capacity |
| Coefficient of thermal expansion (CTE) | 11.2 - 13.2 × 10⁻⁶ /°C (20°C to 400°C) | Compatible with other austenitic alloys; predictable thermal growth |
| Melting range | 1325°C - 1370°C (2417°F - 2500°F) | High melting point for high-temperature stability |
| Maximum service temperature | 540°C (1000°F) continuous; 815°C (1500°F) intermittent | Suitable for most aerospace heat exchanger applications |
Thermal Conductivity Comparison:
| Material | Thermal Conductivity (W/m·K) at 20°C | Application Consideration |
|---|---|---|
| Hastelloy C-276 | 10.0 - 11.5 | Good for high-temperature corrosion-resistant service |
| Stainless Steel 316 | 15.0 | Slightly better conductivity, lower corrosion resistance |
| Inconel 625 | 9.8 | Comparable to C-276 |
| Titanium Grade 2 | 16.0 | Better conductivity, lower high-temperature strength |
| Copper | 401 | Excellent conductivity, poor corrosion resistance |
CTE Compatibility with Aerospace Materials:
| Material | CTE (×10⁻⁶ /°C) | Compatibility with C-276 |
|---|---|---|
| Hastelloy C-276 | 11.2 - 13.2 | - |
| Stainless Steel 316 | 15.0 - 17.0 | Good - allows bimetallic joints |
| Inconel 625 | 12.8 | Excellent - similar expansion |
| Titanium | 8.6 | Moderate - requires careful joint design |
| Aluminum | 23.1 | Poor - requires expansion compensation |
Heat Exchanger Design Considerations:
| Factor | Consideration for C-276 |
|---|---|
| Wall thickness | Can be reduced due to high corrosion resistance; enhances heat transfer |
| Fouling resistance | Smooth, passive surface reduces fouling; maintains heat transfer efficiency |
| Tube diameter | Small-diameter tubes (6-25 mm) commonly used for compact heat exchangers |
| Fin attachment | Good weldability allows reliable fin attachment via welding or brazing |
| Flow distribution | Uniform corrosion resistance allows flexible flow path design |
Temperature-Dependent Properties:
| Temperature | Thermal Conductivity (W/m·K) | CTE (×10⁻⁶ /°C) |
|---|---|---|
| 20°C (68°F) | 10.0 | 11.2 |
| 200°C (392°F) | 10.8 | 12.0 |
| 400°C (752°F) | 11.5 | 12.8 |
| 600°C (1112°F) | 12.0 | 13.2 |
Aerospace Heat Exchanger Types Utilizing C-276:
| Heat Exchanger Type | C-276 Advantage |
|---|---|
| Plate-fin heat exchangers | Good weldability for fin attachment; corrosion resistance for aggressive coolants |
| Shell-and-tube heat exchangers | Excellent pitting resistance for tube bundles; high-temperature stability |
| Printed circuit heat exchangers (PCHE) | Good diffusion bonding characteristics; uniform corrosion resistance |
| Compact heat exchangers | Allows thin-wall construction for weight reduction |
| Regenerative heat exchangers | Thermal stability for cyclic operation |
4. Q: What are the critical fabrication and welding considerations for Hastelloy C-276 plate in aerospace heat exchanger construction?
A: The fabrication and welding of Hastelloy C-276 plate for aerospace heat exchangers require specialized techniques that reflect the alloy's unique metallurgical characteristics. Proper practices are essential to maintain the corrosion resistance, thermal stability, and mechanical integrity required for demanding aerospace applications.
Welding Considerations: Hastelloy C-276 exhibits excellent weldability, a key advantage for heat exchanger fabrication:
| Parameter | Recommendation |
|---|---|
| Welding processes | GTAW (TIG) preferred; GMAW for thicker sections; plasma arc for precision |
| Filler metal | ERNiCrMo-4 (matching C-276 composition) |
| Shielding gas | Argon or argon-helium mixtures; back purging essential |
| Heat input | Controlled to minimize distortion and grain growth |
| Interpass temperature | Maintain below 150°C (300°F) |
| Preheating | Not required |
| Post-weld heat treatment | Not required (unique advantage of C-276) |
No Post-Weld Heat Treatment – A Critical Advantage: Unlike many nickel alloys, Hastelloy C-276 does not require post-weld heat treatment to restore corrosion resistance. This is because:
Ultra-low carbon content (0.010% max) prevents carbide precipitation
Controlled chemistry maintains corrosion resistance in as-welded condition
Simplifies fabrication of large heat exchanger assemblies
Reduces cost and lead time
Filler Metal Selection:
| Filler Metal | Composition | Application |
|---|---|---|
| ERNiCrMo-4 | Matching C-276 | Standard for all C-276 welding |
| ERNiCrMo-10 | Alloy C-22 type | Alternative for specific applications |
| ERNiCrMo-3 | Alloy 625 | Not recommended; lower corrosion resistance |
Forming and Bending:
| Operation | Recommendation |
|---|---|
| Cold forming | Excellent formability in solution-annealed condition |
| Minimum bend radius | 2× to 4× thickness depending on forming method |
| Springback | Moderate; allowances required in tooling |
| Hot forming | 950°C - 1150°C (1740°F - 2100°F); requires subsequent solution annealing |
| Intermediate annealing | Required after significant cold work; 1120°C-1200°C with rapid cooling |
Machining Considerations:
| Parameter | Recommendation |
|---|---|
| Tooling | Carbide tooling (C-2 or C-3 grade) |
| Surface speed | 80-120 SFM (roughing); 100-150 SFM (finishing) |
| Feed rate | Aggressive feeds (0.005-0.015 in/rev) to cut below work-hardened layer |
| Coolant | Flood coolant essential for heat dissipation |
| Work hardening | Avoid light cuts; maintain constant engagement |
Heat Exchanger Fabrication Best Practices:
| Practice | Rationale |
|---|---|
| Tube-to-tubesheet welding | Use GTAW with ERNiCrMo-4; back purge with argon |
| Fin attachment | Weld, braze, or mechanically attach; ensure clean surfaces |
| Header fabrication | Formed or welded; inspect for contamination |
| Surface cleaning | Remove all oils, greases, and marking materials before service |
| Contamination prevention | Use dedicated tools; avoid carbon steel cross-contamination |
Inspection Requirements for Aerospace Heat Exchangers:
| Test | Purpose |
|---|---|
| Liquid penetrant (PT) | Surface crack detection on welds and critical areas |
| Radiographic (RT) | Internal weld integrity for pressure-containing welds |
| Hydrostatic testing | Pressure integrity verification |
| Helium leak testing | For aerospace applications requiring leak-tight integrity |
| Visual inspection | Surface condition, weld profile, and dimensional verification |
5. Q: What quality assurance, testing, and procurement considerations are essential for Hastelloy C-276 plate used in aerospace heat exchangers?
A: The procurement of Hastelloy C-276 plate for aerospace engineering heat exchangers requires rigorous attention to quality assurance, testing protocols, and supply chain reliability. The critical nature of aerospace applications-where failure can result in catastrophic system failure-demands that material quality meet the most stringent requirements.
Material Certification and Traceability: The foundation of quality assurance is comprehensive documentation:
| Documentation | Required Information |
|---|---|
| Mill test reports (MTRs) | Heat number, chemical analysis, mechanical properties, heat treatment |
| Heat treatment records | Solution annealing temperature and cooling method |
| Product marking | Heat number, specification, alloy, dimensions |
| Traceability | Full traceability from melt to finished product |
Chemical Composition Verification (UNS N10276):
| Element | Requirement | Verification Method |
|---|---|---|
| Molybdenum | 15.0% - 17.0% | Heat analysis + PMI |
| Chromium | 14.5% - 16.5% | Heat analysis + PMI |
| Carbon | 0.010% max | Critical for corrosion resistance |
| Tungsten | 3.0% - 4.5% | Essential for pitting resistance |
Mechanical Testing Requirements:
| Test | Requirement | Frequency |
|---|---|---|
| Tensile (room temp) | 100 ksi (690 MPa) min UTS; 41 ksi (283 MPa) min YS | Per heat/lot |
| Elongation | 40% min | Per heat/lot |
| Hardness | As agreed | Quality control |
| Bend test | No cracking | For sheet products |
Corrosion Testing for Aerospace Applications:
| Test | Standard | Purpose |
|---|---|---|
| Intergranular corrosion | ASTM G28 | Verify resistance to sensitization |
| Pitting resistance | ASTM G48 | Assess localized corrosion resistance |
| Simulated service | Custom | Validate for specific aerospace fluids |
Nondestructive Examination (NDE):
| Test | Applicability | Purpose |
|---|---|---|
| Ultrasonic testing (UT) | Plate over certain thickness | Internal defect detection (laminations, inclusions) |
| Eddy current testing (ET) | Sheet and thin plate | Surface and near-surface defect detection |
| Liquid penetrant (PT) | Critical areas | Surface crack detection |
| Visual examination | All products | Surface condition verification |
Aerospace-Specific Requirements:
| Requirement | Details |
|---|---|
| Melting process | Vacuum induction melting (VIM) or consumable electrode remelting (VAR) |
| Surface quality | Strict surface finish requirements; no laps, seams, or deep scratches |
| Flatness | Tighter tolerances than commercial grade |
| Cleanliness | Special cleaning for aerospace applications |
| Packaging | Protective packaging to maintain surface condition |
Supplier Qualification for Aerospace:
| Criterion | Requirement |
|---|---|
| Quality system | AS9100 (aerospace quality management) |
| Mill approval | Approved by major aerospace OEMs |
| Testing laboratory | ISO 17025 accreditation |
| Traceability systems | Full traceability capability |
| NDE qualifications | Certified NDE personnel and procedures |
Procurement Specification Checklist:
ASTM B575 or ASME SB575 specification
AMS 5504 (if aerospace-grade required)
Alloy UNS N10276 (Hastelloy C-276)
Product form (plate, sheet, strip)
Dimensions (thickness, width, length)
Condition (solution-annealed)
Melting process (VIM + VAR)
NDE requirements (UT, ET)
Corrosion testing requirements
Certification requirements
Third-party inspection (if required)
Receiving Inspection Checklist for Aerospace:
Verify markings match purchase order (heat number, alloy, specification)
Review MTRs for completeness and conformance to AMS 5504/ASTM B575
Confirm melting process documentation
Perform Positive Material Identification (PMI) testing
Inspect surface condition for defects (laps, seams, scale)
Verify dimensions (thickness, width, length, flatness)
Check packaging integrity
Verify corrosion test results (if specified)
Storage and Handling for Aerospace Applications:
| Practice | Rationale |
|---|---|
| Clean environment | Prevent contamination from carbon steel |

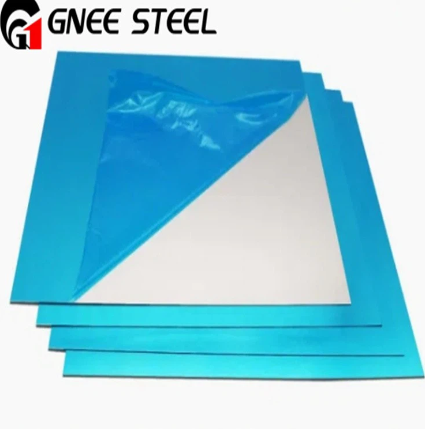

| Protective packaging | Maintain original packaging until fabrication |
| Traceability preservation | Ensure heat number markings remain legible |
| Separation | Segregate by heat number and specification |
| Contamination control | Handle with clean gloves; avoid direct contact |
Risk Mitigation for Aerospace Heat Exchangers:
| Strategy | Purpose |
|---|---|
| Qualified sources list | Restrict procurement to approved suppliers |
| Third-party inspection | Independent verification of material quality |
| Witnessed testing | Buyer presence during critical testing |
| Lot segregation | Prevent mixing of different heats |
| Change control | Any source changes require re-qualification |
By adhering to these quality assurance and procurement practices, aerospace manufacturers can ensure that Hastelloy C-276 plate meets the rigorous requirements of heat exchanger applications, providing the corrosion resistance, thermal stability, and mechanical integrity essential for reliable service in demanding aerospace environments.
