Are you struggling to choose between GH3030 and GH3044 for your next high-temperature project? In the field of high-temperature alloys, choosing the wrong grade can lead to catastrophic mechanical failures or significant waste of project budget.
One of the most common dilemmas engineers face is balancing cost and temperature: "Is GH3030 sufficient for my 800°C environment? Or should I pay the higher price for GH3044?" As a leading manufacturer with a large inventory of GH3030 and GH3044, Gnee Steel can provide you with the expert advice you need to find a cost-effective solution.
Click to contact us for recommendations of materials that suit your needs

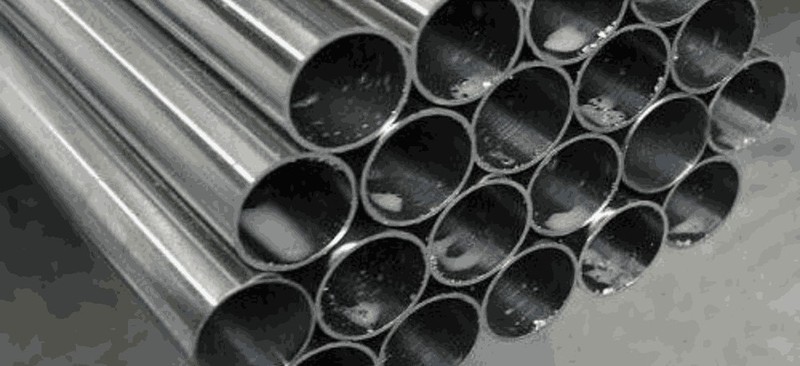

GH3030 vs. GH3044 Seamless Pipe: Finding the Best Heat-Resistant Alloy for 800°C+
GH3030 vs. GH3044 Seamless Pipe: Finding the Best Heat-Resistant Alloy for 800°C+
Both GH3030 and GH3044 are nickel-based solid solution strengthened seamless high-temperature alloy tubes, renowned for their excellent high-temperature oxidation resistance. GH3030 (~8ONi-20Cr) is suitable for low-load environments below 800°C and has excellent weldability; while GH3044 (Ni-Cr-W alloy) offers superior high-temperature strength and oxidation resistance at temperatures up to 900°C-1100°C.
What are the components of GH3030?
GH3030 is a solid solution strengthened superalloy, primarily composed of nickel (Ni) and chromium (Cr), typically with 80% Ni and 20% Cr. This simple yet efficient alloy system provides excellent mechanical and chemical stability even under harsh conditions.
Chemical Composition: GH3030 Alloy Tube vs GH3044 Alloy Tube
| Element | GH3030 Alloy Tube Content (%) | GH3044 Alloy Tube Content (%) |
|---|---|---|
| Nickel (Ni) | ≥ 75.0 (Balance) | Balance (≥ 65.0) |
| Chromium (Cr) | 19.0 – 22.0 | 23.5 – 26.5 |
| Tungsten (W) | – | 13.0 – 16.0 |
| Iron (Fe) | ≤ 1.0 – 1.5 | ≤ 4.0 |
| Titanium (Ti) | 0.15 – 0.35 | 0.3 – 0.7 |
| Molybdenum (Mo) | – | ≤ 1.5 |
| Carbon (C) | ≤ 0.12 | ≤ 0.10 |
| Manganese (Mn) | ≤ 0.70 | ≤ 0.50 – 0.70 |
| Silicon (Si) | ≤ 0.80 | ≤ 0.80 |
| Aluminum (Al) | ≤ 0.15 | 0.50 max |
| Phosphorus (P) | ≤ 0.015 – 0.030 | ≤ 0.013 – 0.015 |
| Sulfur (S) | ≤ 0.010 – 0.020 | ≤ 0.010 – 0.013 |
| Copper (Cu) | ≤ 0.20 – 0.007* | ≤ 0.07 |
Mechanical Properties: GH3030 Alloy Tube vs GH3044 Alloy Tube
| Property | GH3030 Alloy Tube (Annealed) | GH3044 Alloy Tube (Annealed/Solution Treated) |
|---|---|---|
| Tensile Strength, Ultimate (Room Temp) | ≥ 685 – 785 MPa | ≥ 685 – 750 MPa |
| Tensile Strength, Yield (0.2% Offset) (Room Temp) | ≥ 295 – 400 MPa | Not specified (typically no clear yield point) |
| Elongation at Break (Room Temp) | ≥ 30 – 35% | ≥ 40% |
| High-Temperature Tensile Strength (800-900°C) | 295 MPa at 700°C (≥ 295 MPa) | ≥ 190-200 MPa at 900°C |
| Density | 8.4 g/cm³ | 8.89 g/cm³ |
| Melting Range | 1374 – 1420°C | 1352 – 1375°C |
| Modulus of Elasticity | 210 GPa (approx.) | 203 GPa at 20°C |
| Thermal Conductivity (at 20-100°C) | 15.1 W/m·K | 11.7 W/m·K |
| Coefficient of Thermal Expansion (20-900°C) | Not specified | 15.6 × 10⁻⁶/°C |
| Oxidation Resistance | Excellent up to 800-900°C | Excellent up to 900°C |
| Maximum Continuous Service Temperature | ~800°C | ~900°C |
1. GH3030: The Reliable "Workhorse" for 800°C
GH3030 is an 80% Nickel, 20% Chromium solid-solution strengthened superalloy. It is the industry standard for components that require High Plasticity and excellent oxidation resistance below 800°C.
Best For: Aerospace combustion chamber liners, exhaust manifolds, and industrial furnace baffles.
Key Advantage: It offers superior cold/hot formability and is extremely easy to weld, making it a very Cost-Effective Solution for high-volume Industrial Supply.
Our Capability: We supply GH3030 seamless pipes in OD 6mm to 219mm, refined via VIM+ESR for ultra-high purity and longevity.
VIM+ESR Process
2. GH3044: Engineered for the 900°C+ Limit
When your operating temperatures push beyond 850°C, GH3044 becomes the necessary Material Selection. It is a nickel-based alloy reinforced with Tungsten (W) and Molybdenum (Mo), creating a more stable carbide-strengthened matrix.
Best For: Advanced turbine transition pieces, afterburner components, and heating elements operating up to 900°C-1000°C.
Key Advantage: Higher creep strength and structural stability under load at extreme temperatures compared to GH3030.
Our Capability: Our GH3044 pipes feature a Bright Annealed (BA) finish, ensuring an oxide-free surface for critical aerospace MRO.
Performance and cost comparison of GH3030 and GH3044
| Property | GH3030 (The Workhorse) | GH3044 (The High-Temp Specialist) |
| Max Service Temp | Up to 800°C | Up to 900°C - 1000°C |
| Strengthening | Solid Solution (Ni-Cr) | Solid Solution + Carbides (W, Mo) |
| Weldability | Exceptional (High Ductility) | Good (More complex due to W/Mo) |
| Relative Cost | Most Cost-Effective | Premium Price |
| Availability | In Stock (Huge Inventory) | In Stock (Specialty Sizes) |
Why Choose Gnee Steel?
Whether you choose GH3030 or GH3044, our precision manufacturing processes ensure that every seamless steel pipe exceeds international standards:
✅️VIM+ESR Refining: We employ vacuum induction melting (VIM) combined with electroslag remelting (ESR) processes to eliminate microsegregation, ensuring your steel pipes will not fail under thermal shock.
✅️Precise Tolerances: We utilize advanced cold rolling technology to achieve strict tolerance control within an outer diameter range of 6mm to 219mm, enabling our steel pipes to be directly used in your production lines and meet CNC machining requirements.
✅️Superior Surface Finish: Each steel pipe undergoes bright annealing (BA) treatment, resulting in a clean, mirror-like surface that effectively prevents localized corrosion and improves heat distribution.
Gnee Steel GH3030 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH3030 Pipe Packing
Contact us for the latest export price quote for GH3030 Alloy
FAQ
Q1: Which is better for complex welding and forming?
A: GH3030 is significantly more ductile. If your part requires complex bending or extensive seam welding (like combustion liners), GH3030 is much easier to work with. GH3044 is stronger but slightly more sensitive during fabrication.
Q2: Can I use GH3030 to replace GH3044 to save on budget?
A: Only if your working temperature never exceeds 800°C. If your environment reaches 900°C, GH3030 will warp and lose structural integrity. We recommend a Material Selection consultation to avoid "over-specifying" or "under-performing."
Q3: Do you provide certification for aerospace MRO projects?
A: Yes. We provide full Material Test Certificates (MTC) per EN 10204 3.1, cross-referencing equivalent grades like Nimonic 75 or XH78T for GH3030.
Q4: Is GH3044 available in small diameters like 6mm?
A: Yes. Our production lines cover the full 6mm to 219mm range for both grades, supporting everything from instrumentation tubes to heavy structural piping.
