C10100 and C10200 Copper Alloys - Knowledge

1. Chemical Composition (Primary Distinction)

Element	C10100 (Electrolytic Tough Pitch, ETP)	C10200 (Electrolytic Tough Pitch, ETP)	Key Difference
Copper (Cu)	≥99.99%	≥99.95%	C10100 has higher purity (ultra-high purity) vs. C10200's standard high purity.
Oxygen (O)	0.02–0.04%	0.02–0.05%	C10200 allows a slightly higher oxygen content (upper limit 0.05% vs. 0.04% for C10100).
Iron (Fe)	≤0.005%	≤0.05%	C10100 has stricter impurity control (Fe limit 1/10 of C10200).
Lead (Pb)	≤0.003%	≤0.005%	C10100 restricts lead content more tightly.
Sulfur (S)	≤0.004%	≤0.005%	Trace sulfur limits are slightly lower for C10100.
Other Total Impurities	≤0.01%	≤0.05%	C10100's total impurity limit is 1/5 of C10200's, reflecting its ultra-pure grade.

Key Note:

Both grades are "electrolytic tough pitch (ETP)" coppers, meaning oxygen is intentionally retained (not deoxidized) to remove impurities during smelting. However, C10100's higher purity and stricter impurity controls distinguish it as a premium grade.

2. Physical Properties

Property	C10100	C10200	Impact of Difference
Electrical Conductivity (IACS %)	101–103 (ultra-excellent)	98–100 (excellent)	C10100's higher purity minimizes electron scattering, delivering marginally better conductivity-critical for high-performance electrical applications.
Thermal Conductivity (W/m·K)	~403 (superior)	~401 (excellent)	Negligible difference for most industrial uses, but C10100 excels in precision thermal management.
Density (g/cm³)	~8.96	~8.96	Identical (pure copper density is consistent across high-purity grades).
Melting Point (°C)	~1085	~1085	Same (oxygen content does not significantly affect melting point in ETP coppers).
Color	Bright reddish-orange (polished); tarnishes to green patina	Bright reddish-orange (polished); identical tarnish behavior	No visual difference-color is a function of pure copper's inherent properties.

info-449-438 info-443-444

3. Mechanical Properties

Property	C10100 (Annealed Condition)	C10200 (Annealed Condition)	Practical Implication
Tensile Strength (MPa)	220–260	210–250	C10100 has slightly higher tensile strength due to purer grain structure (fewer impurities disrupting grain bonds).
Yield Strength (MPa)	70–90	65–85	Marginally higher yield strength for C10100, but difference is minimal for most forming processes.
Hardness (HB)	40–50	38–48	C10100 is slightly harder, but both are soft and highly ductile.
Ductility (% Elongation)	≥45	≥40	C10100's higher purity enhances ductility, making it easier to draw into ultra-fine wires or form complex shapes.
Cold Workability	Excellent (ideal for ultra-fine wire drawing)	Excellent (suitable for standard wire/sheet forming)	C10100 performs better in extreme cold working (e.g., micro-electronic components) due to reduced impurity-induced cracking risk.

4. Key Performance & Application Differences

C10100 (Ultra-High Purity ETP Copper)

Core Advantages: Highest conductivity among ETP coppers, exceptional ductility, minimal impurities, and consistent performance.

Limitations: Higher cost; not suitable for high-temperature hydrogen environments (oxygen reacts with hydrogen to form H₂O, causing "hydrogen embrittlement")-same as C10200.

Typical Applications:

Precision electrical components: Ultra-fine wires for microelectronics, semiconductor leads, and high-frequency connectors.

High-performance thermal management: Heat sinks for advanced electronics (e.g., aerospace sensors, medical devices).

Critical electrical systems: Voltage regulators, high-precision transformers, and low-resistance busbars.

C10200 (Standard High Purity ETP Copper)

Core Advantages: Balanced performance, cost-effectiveness, and wide availability-most commonly used ETP copper grade.

Limitations: Slightly lower conductivity and ductility than C10100; impurities may affect performance in ultra-precision applications.

Typical Applications:

General electrical: Power cables, motor windings, and standard connectors.

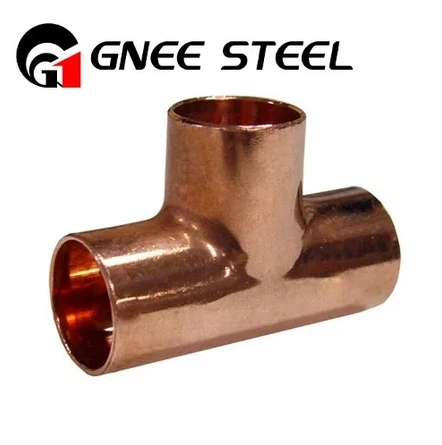

Industrial piping: Potable water pipes, plumbing fittings, and heat exchanger tubes (non-hydrogen environments).

Architectural & manufacturing: Decorative sheets, standard wire drawing, and brazed components.

5. Cost & Availability

C10100: Premium pricing due to stricter purification processes and impurity controls; limited availability in specialized forms (e.g., ultra-fine wire, thin foils).

C10200: Cost-effective and widely available in all standard forms (wire, sheet, plate, tube, bar); preferred for high-volume, non-critical applications.

6. Summary of Key Distinctions

Aspect	C10100	C10200
Purity	Ultra-high (≥99.99% Cu)	High (≥99.95% Cu)
Impurity Control	Strict (low Fe, Pb, S)	Moderate (higher impurity limits)
Electrical Conductivity	Superior (101–103 IACS)	Excellent (98–100 IACS)
Ductility & Cold Workability	Exceptional (ultra-fine wire forming)	Excellent (standard forming)
Cost	Higher	Lower (more economical)
Applications	Precision electronics, high-performance systems	General electrical, industrial, architectural
