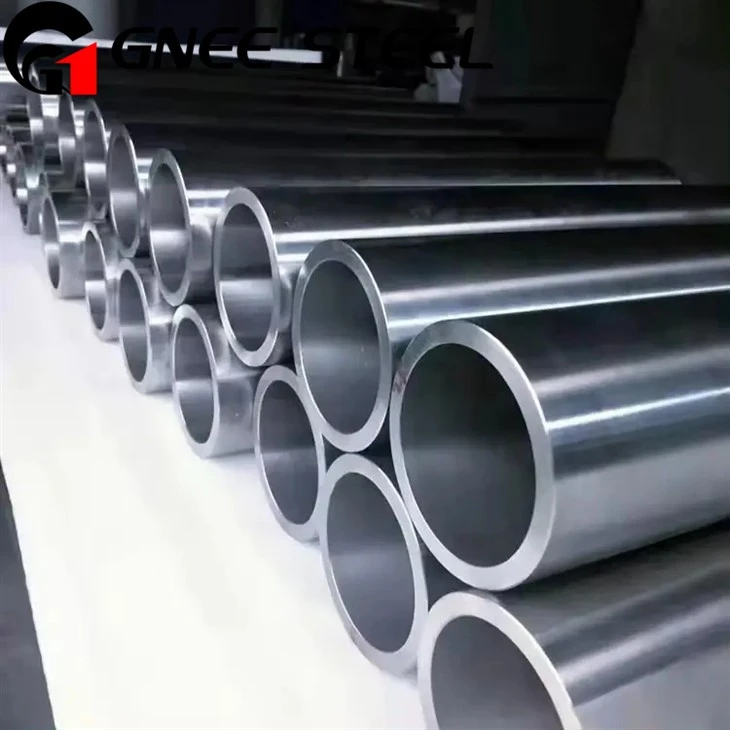

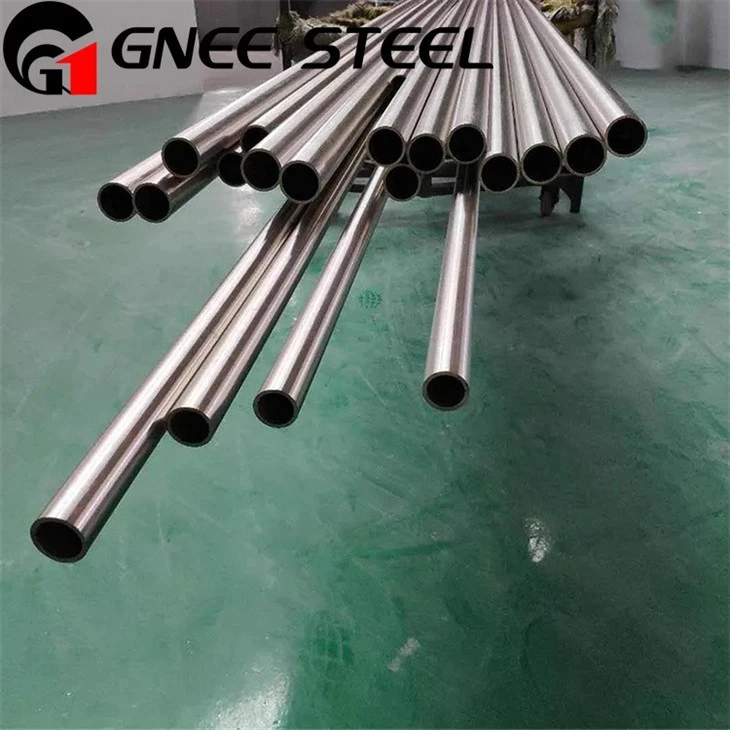

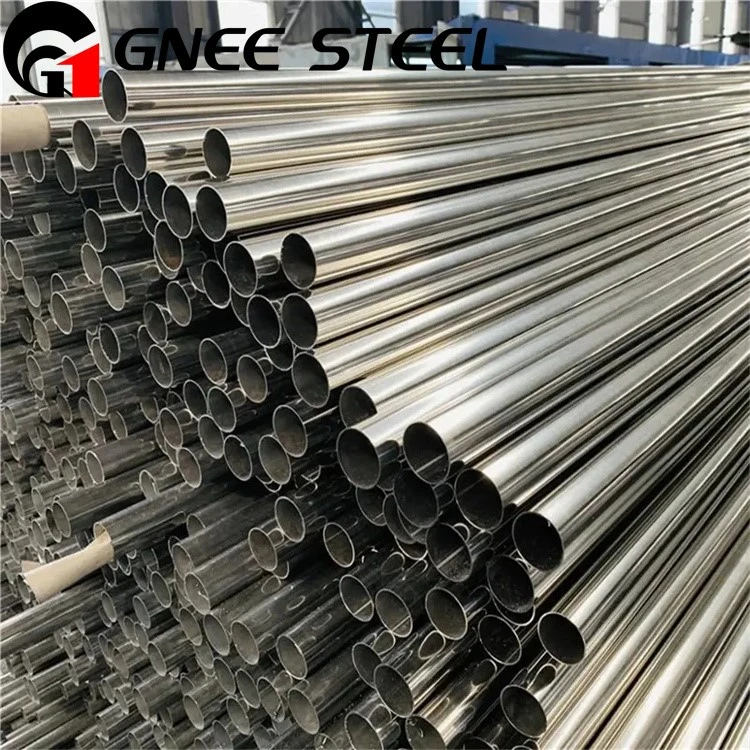

Inconel UNS N06600 Metal Alloy Polished Seamless Pipe

Inconel UNS N06600 Metal Polished Seamless Pipe

UNS N06600 (Inconel 600) polished seamless tube is a nickel-chromium-based high-temperature alloy precision tube. It is formed by hot extrusion or cold drawing and then mechanically polished or electrolytically polished. It has excellent heat resistance, mechanical strength and corrosion resistance. Its core characteristics include: maintaining a stable austenite structure in high temperature (up to 1150℃) and low temperature (-200℃) environments, and outstanding anti-oxidation and carburizing properties; relying on the synergistic effect of high nickel content (≥72%) and chromium (14-17%), it has excellent resistance to chloride stress corrosion, organic acids and strong alkaline media (such as caustic soda), especially in reducing atmospheres. It performs better than stainless steel; at the same time, it has good processability (weldable, cold forming) and surface finish (Ra≤0.4μm). This tube is typically used in harsh environments such as petrochemical cracking furnace tubes, nuclear power plant steam generator heat transfer tubes, heat treatment equipment radiation tubes and semiconductor manufacturing equipment. Its polished surface can also effectively reduce fluid resistance and prevent scaling deposition.

Below is the detailed property table of UNS N06600 (Inconel 600) Polished Seamless Pipe:

Category	Specifications
Material Standard	UNS N06600 / Inconel 600 / W.Nr. 2.4816
Manufacturing Process	Hot-extruded or Cold-drawn + Mechanically/Electropolished (Ra ≤0.4μm)
Key Composition (%)	Ni≥72, Cr 14-17, Fe 6-10, C≤0.15, Mn≤1.0, Si≤0.5, Cu≤0.5, S≤0.015
Mechanical Properties	- Tensile Strength: ≥550 MPa - Yield Strength: ≥240 MPa - Elongation: ≥30%
Temperature Resistance	- Continuous Service: -200°C to 1150°C - Oxidation Resistance: Up to 1100°C
Corrosion Resistance	Resists chloride stress corrosion, organic acids, hot alkalis (e.g., NaOH), and reducing atmospheres
Physical Properties	- Density: 8.47 g/cm³ - Melting Range: 1350-1410°C - Thermal Conductivity: 14.9 W/m·K (100°C)
Surface Finish	Polished (Ra ≤0.4μm), ideal for reducing fluid friction and preventing scaling
Typical Applications	Petrochemical cracking furnaces, nuclear steam generator tubes, heat treatment radiant tubes, semiconductor equipment

Inconel 625 Seamless Pipe Chemical Composition

Element	C	Mn	Si	Fe	S	Cr2	Al-Ti	Ni
min.	-	-	-	-	-	20.0	-	58.0
max.	0.10	0.50	0.50	5.0	0.015	23.0	0.40	-

The following are the market standard sizes of UNS N06600 (Inconel 600) polished seamless pipes:

OD (mm)	Standard WT (mm)	Typical Applications
3~12	0.5~2.0	Semiconductor equipment, precision instruments, medical catheters
13~38	1.0~3.0	Chemical instrument piping, heat exchanger tubing, electronic component sleeves
40~76	1.5~5.0	Petrochemical cracking furnace tubes, nuclear plant instrument sleeves, heat treatment radiant tubes
80~150	2.0~8.0	Large chemical reactor piping, power boiler tubes, industrial heating systems
152~250	3.0~12.0	Refinery high-temperature transfer lines, nuclear steam generator tubes, special industrial furnace components

GNEE Group UNS N06600 Metal Polished Seamless Pipe Factory Environment

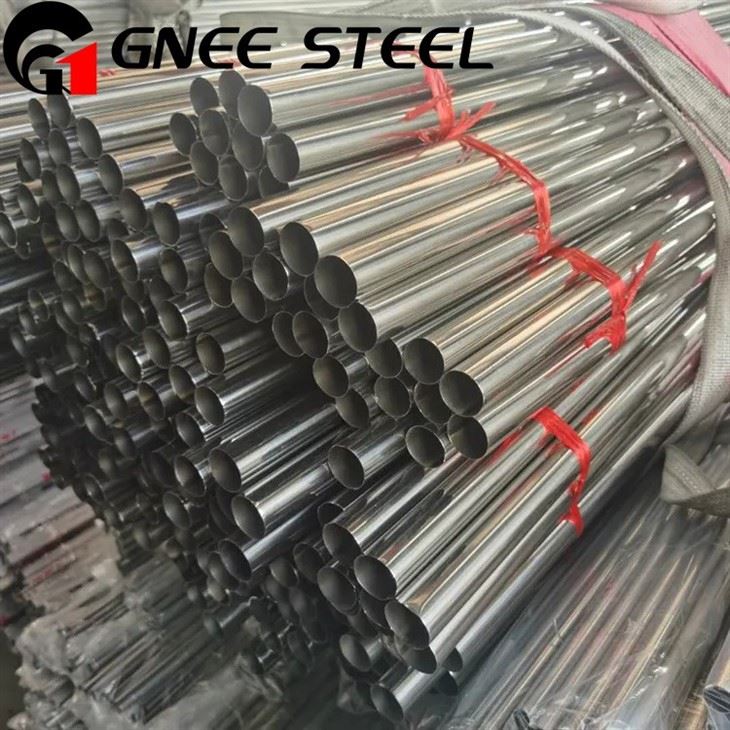

GNEE Group Inconel UNS N06600 Polished Seamless Pipe Packaging

GNEE Group Inconel UNS N06600 Polished ss Pipe Testing

What is the maximum size of nickel alloy 625 straight seam welded pipe?
8 inches
What is the melting point of nickel alloy 625 pipe?
1290-1350°C | 2350-2460°F
What are the typical manufacturing specifications for Inconel 625 welded pipe?
AMS 5581
ASTM B444
BS 3074
What is the temperature range of alloy 625 pipe?
538°C to 593°C.
What are the most common applications for WNR 2.4856 seamless pipe?
Heat exchangers
Natural gas pipeline control lines
Petroleum refining
