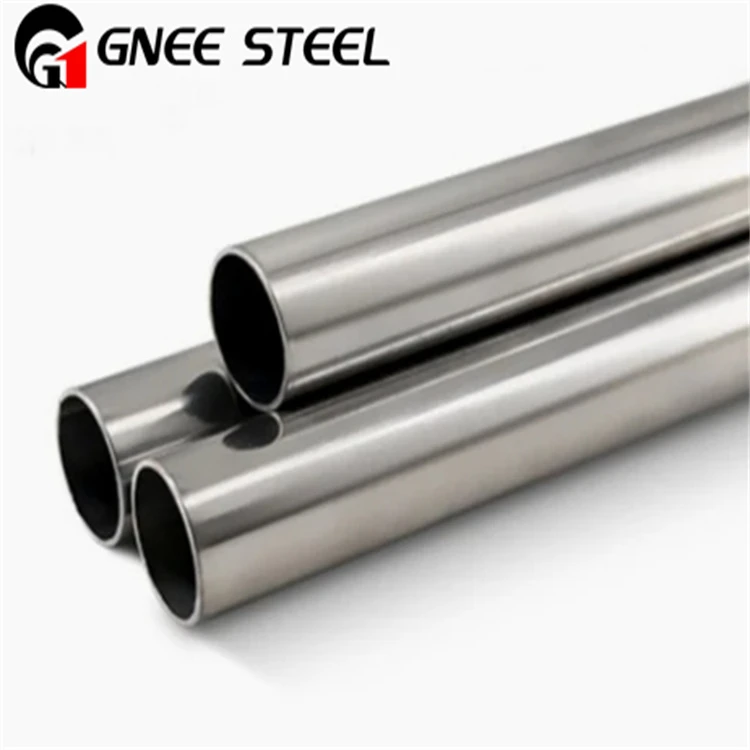

Inconel 617 Welded Pipe
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Inconel 617 Welded Pipe stands as a testament to advanced materials engineering, offering exceptional strength, corrosion resistance, and versatility across industries. Its robust chemical composition, coupled with superior mechanical properties and availability in various forms and sizes, makes it indispensable for critical applications requiring reliability and performance under extreme conditions.
Inconel 617 welded pipe Chemical Composition
|
UNS Designation |
N06617 |
|
Inconel Alloy |
617 |
|
Nickel |
44.5 min. |
|
Cromium |
20.0 - 24.0 |
|
Cobalt |
10.00 - 15.00 |
|
molybdenum |
8.0 -10.0 |
|
Aluminium |
0.8-1.5 |
|
Carbon |
0.05 -0.15 |
|
Iron |
3.0max |
|
manganese |
1.0 max. |
|
Silicon |
3.0max |
|
Sulfur |
0.015 max. |
|
Titanium |
0.6 max |
|
Copper |
0.5 max. |
|
Boron |
0.006max |
Limiting Chemical Composition, % by Weight.
Inconel 617 welded pipe Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 760 MPa (110 ksi) min |
| Yield Strength (0.2% offset) | 350 MPa (51 ksi) min |
| Elongation | 30% min |
| Hardness (Brinell) | 241 max (annealed condition) |
| Density | 8.42 g/cm³ |
