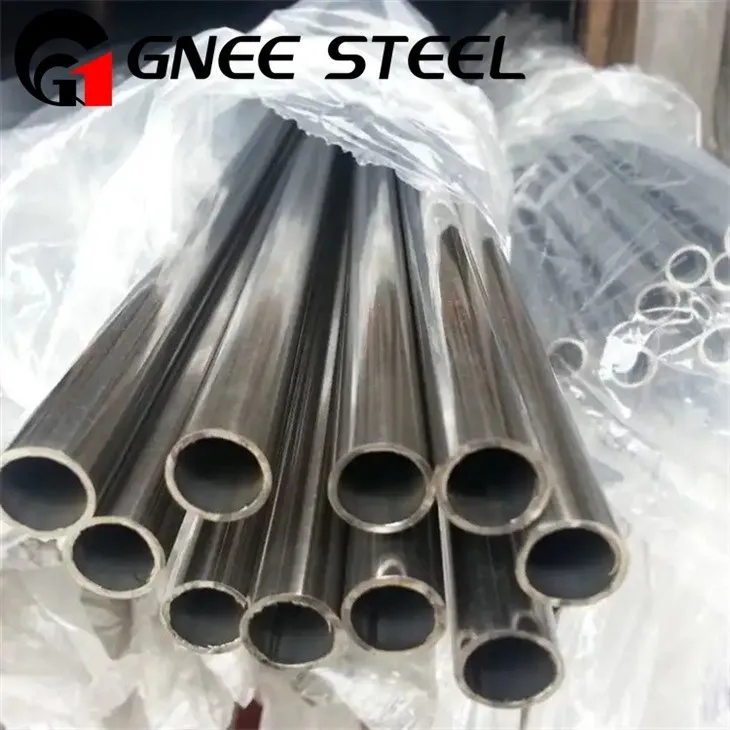

Inconel 690 706 Polished Pipe
Inconel Alloy 690 706 Pipe Applications in Various Application Industries
Food Processing Industry
Manufacturing Industry
Oil and Gas Industry
Chemical Industry
Pipeline
General Applications
Heating
Water Supply System
Power Plant
Paper and Pulp Industry
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Inconel 690 706 Polished Pipe Application
Inconel 690 706 Pipe video
Inconel 690 Pipe Specifications:
Specifications: ASTM B444, B705 / ASME SB444, SB705
Standards: ASTM, ASME and API
Pipe Sizes: 15 NB to 600 NB, SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 and XXS
Pipe Sizes: 1mm OD to 400mm OD, 0.2 to 20mm thickness.
Types: Seamless, ERW, Welded, Fabricated, LSAW.
Lengths: Single Random, Double Random and Required Length, Cut Length or as per customer requirements
Ends: Plain End, Bevel End, Threaded
Inconel 706 Pipe Specifications
Angle bar: 1mm to 1300mm
Steel Pipe: 1 - 1300mm, also can be customed.
Pipe fitting Size: 1/8 inch - 80 inch (DN6 - DN2000)
Flange Size: DN6 - DN2000
Lenth: Any lenth based on the customer's requirement.
Inconel 690 706 Polished Pipe Specification
690 Polished Pipe Chemical Composition & Equivalent Standards
| Grade | C | Mn | Mo | Co | Si | P | S | Ni | Cr | Fe | Al | Ti | Nb + Ta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inconel 690 | 0.10 max | 0.50 max | 8.0 – 10.0 | max | 0.50 max | 0.015 max | 0.015 max | 58.0 min | 20.0 – 23.0 | 5.0 max | 0.40 max | 0.40 max | 3.15 – 4.15 |
chemical composition table of Inconel 706 Pipe:
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.30 max |
| Manganese (Mn) | 0.35 max |
| Silicon (Si) | 0.35 max |
| Phosphorus (P) | 0.020 max |
| Sulfur (S) | 0.015 max |
| Chromium (Cr) | 14.5 - 17.5 |
| Copper (Cu) | 0.35 max |
| Aluminum (Al) | 0.060 max |
| Boron (B) | 0.0060 max |
| Titanium (Ti) | 0.40 max |
| Niobium (Nb) | 2.50 - 3.30 |
| Cobalt (Co) | 1.00 max |
| Nickel (Ni) | 39 - 44 |
| Iron (Fe) | Balance (Bal) |
Inconel 690 Polished Pipe
Alloy 690 Tube Inconel 690 Tube (UNS N06690) is a high chromium nickel-based alloy with excellent resistance to corrosion in a variety of aqueous media and high temperature atmospheres. It also has high strength, good metallurgical stability and excellent processing characteristics.
Alloy 690 Tube Inconel 690 Tube Applications
The alloy has the ability to resist sulfur-containing atmospheres and can be used as burner and furnace tubes for coal gasification units, sulfuric acid treatment, petrochemical furnaces, heat exchanger tubes, incinerators, and glass solidification equipment for handling radioactive waste. The alloy exhibits excellent low corrosion rate and stress corrosion resistance in various types of high temperature water, so it is widely used in steam generator heat transfer tubes, separators, tube sheets and nuclear power components.
Inconel 706 is a nickel-iron-chromium alloy that is a precipitation hardening alloy with high mechanical strength and good machinability. Its properties are similar to those of Inconel 718 alloy, except that it is easier to process, especially by machining. The large nickel and chromium contents provide good resistance to oxidation and corrosion. The main precipitation hardening components of this alloy are titanium and niobium. The aluminum element also provides a hardening reaction. The precipitation hardening system in it provides the useful characteristic of delaying the hardening reaction during precipitation temperature exposure. This characteristic provides the alloy with excellent resistance to post-weld strain-age cracking, and the high strength of the precipitation hardening is maintained at temperatures up to 1300'F. The excellent mechanical properties at the expected service temperature can be obtained by using one of two heat treatments.
GNEE Group Factory Environment
Inconel Polished Pipe
Gnee Product process & size
Inconel 706 Polished Pipe
Gnee product certificate
Gnee product certificate
Customer Case
customer visit
FAQ
Q: How do you make our business establish a long-term and good relationship?
A: We maintain good quality and competitive prices to ensure that our customers benefit; we respect every customer just like our friends and sincerely do business and make friends with them. No matter where they come from.
Q: What is your delivery time?
A: Our delivery time is about one week, based on the number of customers.
Q: How long is your delivery time?
A: This is based on quantity. Generally it is 30 days.
Q: About the product price of Inconel 690 706 Polished Pipe?
A: Due to cyclical changes in raw material prices, prices vary in different periods.
