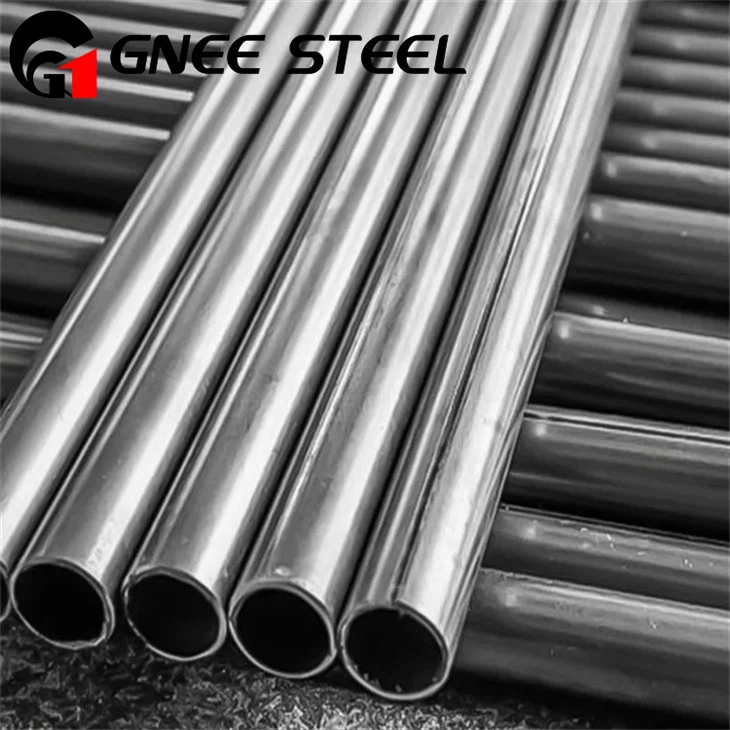

Inconel 601 Seamless Pipe
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Uns N06601 Alloy Pipe description
GNEE Inconel 601 Tube
Gnee Steel is currently dedicated to the production and supply of high-quality Inconel 601 pipe. This grade of pipe is crafted from premium alloys, significantly enhancing product strength. We are a customer-centric distributor, offering products in various sizes, ends, specifications, standards, types, lengths, and shapes to meet diverse customer needs. Product designs strictly adhere to multiple international product quality standards, such as ASME, ASTM, and API. Furthermore, we can provide services based on customized specifications and standards.
Gnee Steel offers high-quality Inconel 601 tubing in a variety of sizes, and provides customization services and worldwide shipping to meet your specific project needs.
Contact us now for an export quote on Inconel 601 pipes
Uns N06601 Alloy Pipe Specification
| Pipe Specifications | ASTM B167, B516 / ASME SB167, SB516 |
| Tube Specifications | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Dimensions | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Pipe & Tube Size | 1/2″ NB – 16″ NB |
| Welded Pipe & Tube Size | 1/8″NB TO 30″NB IN |
| EFW Pipe & Tube Size | 6″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness | 0.35 mm – 50 mm |
| Specialized in | Large Diameter Pipe Size |
| Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, SCH 80S, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS, SCH XS |
| Type | Seamless Pipes, ERW Pipes, Welded Pipe, Fabricated Pipes, Electropolished Pipe, Polished Pipe, Hollow Pipes |
| Form | Round, Square, Hydraulic, U Shape, Rectangular, Pan Cake Coils, Coiled, Hex, Honed, Etc |
| Length | Single Random, Double Random & Required Length. |
| End | Plain End, Beveled End, Treaded End |
Inconel 600 Pipe composition
Chemical Properties of Inconel 601 seamless tube
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Mechanical Characteristics of Alloy 601 Tube
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015max | 1.00 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Equivalent grades of Inconel 601 UNS N06601 Tube
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Inconel 601 ASTM B163 Tubing Size Range
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Tolerances Chart Of Nickel Alloy 601 Tube
| WALL THICKNESS INCHES | OD +/- INCHES | OD INCHES |
|---|---|---|
| 0.0025 - 0.0065 | 0.0005 | 1/2" - 1" incl0.0 |
| Over 0.0065 - 0.0134 | 0.0010 | |
| 0.0025 - 0.0065 | 0.0008 | 1 - 1-1/2" incl0.0 |
| Over 0.0065 - 0.0134 | 0.0010 | |
| 0.0025 - 0.0049 | 0.0010 | 1-1/2" - 2" incl0.0 |
| Over 0.0049 - 0.0083 | 0.0011 | |
| Over 0.0083 - 0.0148 | 0.0012 | |
| 0.0032 - 0.0065 | 0.0012 | 2" - 2-1/2" incl0.0 |
| Over 0.0065 - 0.0109 | 0.0013 | |
| Over 0.0109 - 0.0165 | 0.0014 | |
| 0.0032 - 0.0165 | 0.0014 | 2-1/2" - 3-1/2" incl0.0 |
| Over 0.0165 - 0.0220 | 0.0020 | |
| 0.0083 - 0.0165 | 0.0020 | 3-1/2" - 5" incl0.0 |
| Over 0.0165 - 0.0220 | 0.0025 |
Pressure Rating Of DIN 2.4851 Pipe And Tube
American standard for Process piping (ASME B31.3 : 2012)
Selected wall tolerance: ±10%
OUTSIDE DIAMETER AND WALL THICKNESS (MM): 1.59 x 0.36
|
Grade |
Maximum internal pressure, ksi |
|||||||||
|
|
100°F |
200°F |
300°F |
400°F |
500°F |
600°F |
700°F |
Comments |
||
|
N06601 :1 |
8.02 |
8.02 |
8.02 |
8.02 |
8.02 |
8.02 |
8.02 |
B167 OD>5″ and hotworked |
||
|
N06601 :2 |
9.6 |
9.6 |
9.6 |
9.6 |
9.6 |
9.6 |
9.6 |
B167 OD<=5″ and hotworked + OD>5″ and coldworked |
||
|
N06601 :3 |
11.19 |
11.19 |
11.19 |
11.19 |
11.19 |
11.19 |
11.19 |
B167 OD<=5″ and coldworked |
||
Selected wall tolerance: ±10%
Outside Diameter And Wall Thickness (MM): 6 x 1
|
Grade |
Maximum internal pressure, ksi |
|||||||||
|
|
100°F |
200°F |
300°F |
400°F |
500°F |
600°F |
700°F |
Comments |
||
|
N06601 :1 |
392 |
392 |
392 |
392 |
392 |
392 |
392 |
B167 OD>5″ and hotworked |
||
|
N06601 :2 |
470 |
470 |
470 |
470 |
470 |
470 |
470 |
B167 OD<=5″ and hotworked + OD>5″ and coldworked |
||
|
N06601 :3 |
547 |
547 |
547 |
547 |
547 |
547 |
547 |
B167 OD<=5″ and coldworked |
||
Selected wall tolerance: ±10%
Outside Diameter And Wall Thickness (MM): 8 x 1
|
Grade |
Maximum internal pressure, ksi |
|||||||||
|
|
100°F |
200°F |
300°F |
400°F |
500°F |
600°F |
700°F |
Comments |
||
|
N06601 :1 |
284 |
284 |
284 |
284 |
284 |
284 |
284 |
B167 OD>5″ and hotworked |
||
|
N06601 :2 |
340 |
340 |
340 |
340 |
340 |
340 |
340 |
B167 OD<=5″ and hotworked + OD>5″ and coldworked |
||
|
N06601 :3 |
397 |
397 |
397 |
397 |
397 |
397 |
397 |
B167 OD<=5″ and coldworked |
||
Inconel 601 Pipe Manufacturing Process
Inconel 601 Machining Data
| MACHINING DATA | |
|---|---|
| Machining Type | Suggested starting rates are: |
| Drilling : | 1/4" Diameter hole - 0.004"/rev feed - 60 SFM 1/2" Diameter hole - 0.007"/rev feed - 60 SFM 3/4" Diameter hole - 0.010"/rev feed - 60 SFM |
| Single Point turning : | Roughing - 0.15" depth, 0.015"/rev feed -175 SFM Finishing - 0.025" depth, 0.007"/rev feed - 200 SFM |
| Side and Slot Milling : | Roughing - 0.25" depth - 0.007"/tooth feed - 125SFM Finishing - 0.050" depth - 0.009"/tooth feed - 140SFM |
| Reaming : | Feed - same as drilling - 100 SFM |
Gnee Steel offers the full range of Inconel 601 products.
You may be looking for Inconel 601 tubing, but most industrial projects require a comprehensive materials solution. We offer a one-stop shop for the Inconel 601 product range:
Inconel 601 Plates (compliant with ASTM B168)
Inconel 601 Bar
Inconel 601 Fittings and Forged Flanges
Inconel 601 Fasteners
Inconel 601 Pipes And Tubes Price List
| Price List of Inconel 601 Pipes and Tubes | Inconel 601 Pipes and Tubes Price in India (INR) | Inconel Alloy 601 Pipes and Tubes Price in USD | Inconel 601 Pipes and Tubes Price in UAE (Dirham) |
|---|---|---|---|
| 2 inch Inconel Alloy 601 Pipe Price | ₹ 506 | $ 67.27 USD | 20.60 AED |
| Inconel 601 Tube Price | ₹ 167 | $ 6.09 USD | 9.60 AED |
| Inconel Alloy 601 Pipes Price List | ₹ 963 | $ 16.97 USD | 47.10 AED |
| Inconel Steel Pipe 601 Price Per Kg | ₹ 185 | $ 2.32 USD | 5.58 AED |
| Inconel 601 Pipe Price Per Kg | ₹ 480 | $ 5.26 USD | 25.44 AED |
| Inconel Alloy 601 Pipe Price | ₹ 174 | $ 3.50 USD | 8.77 AED |
| Price of Inconel 601 Seamless Pipes | ₹ 485 | $ 6.60 USD | 20.00 AED |
| Nickel Alloy 601 Price | ₹ 163 | $ 3.50 USD | 8.54 AED |
Inconel 601 Pipe Shipping Time As Per Location
| Cost Changes 5 % extra | |
|---|---|
| Export to | Delivery Time |
| UAE | 5 days |
| Kuwait | 10 |
| Qatar | 7 |
| Singapore | 8 |
| Bahrain | 9 |
| USA | 40-60 |
| Oman | 5 |
| Italy | 30 |
| South Africa | 25-30 |
| Malaysia | 10 |
| Philippines | 14 |
| France | 30 |
Products and services offered by Gnee Steel
Applications of Inconel 601 Tube
Aerospace: Jet engine components, gas turbine parts, rocket engines, and fasteners.
Oil and Gas: Downhole drill pipes, wellhead components, valves, and pump assemblies.
Chemical Industry: High-temperature reactors and pipelines.
Marine: Submarine components and high-strength shafts.
Nuclear Energy: Reactor core and control rod components.
Professional Packaging and Safe Shipping
We pay meticulous attention to detail to ensure your Inconel 601 seamless tubing arrives undamaged.
Tubing Ends: Sealed with plastic caps or wooden plugs to prevent debris from entering.
Protection: Wrapped in waterproof plastic and rust-proof paper.
Reinforcement: Packed in reinforced wooden or steel-framed crates that meet IPPC standards.
Logistics: Flexible shipping options are available, including sea freight (FCL/LCL), air freight, or express (DHL/FedEx) to meet your urgent repair needs.
About GNEE: Your Professional Nickel Alloy Partner
GNEE (Super Stainless Steel Alloy) is a globally renowned manufacturer of Inconel 601 tubing with over 15 years of industry experience. We are committed to providing global buyers with a "one-stop" material solution.
Production Capacity: A modern 35,000 square meter factory equipped with advanced cold drawing and cold rolling equipment.
Large Inventory: Over 5,000 tons of nickel alloy inventory (600, 601, 625, 718, C276), enabling 7-day fast delivery.
Global Export: Certified products are sold to over 120 countries and regions, including the USA, Germany, Brazil, and the Middle East.
Quality Assurance: ISO 9001:2015 certified. Each tubing comes with a factory test certificate (MTC) conforming to EN 10204 3.1. We support third-party inspections (SGS, TUV, BV).
Inconel 601 Pipe material certificate
About Gnee Steel
Request the latest Inconel 601 Pipe price list. Please call +8615824687445 or email ss@gneemetal.com for information on available stock and the latest price list for Nickel 600 Pipe.
Please contact us to get a quick quote for the inconel 601 Pipe you need
We supply these Inconel 601 Tube according to DIN, ISO, JIS, or ANSI/ASME standards.
"We provide DDP/CIF shipping services to Germany and Italy."
FAQ
Q：What are the applications of Inconel 601?
A：In industrial furnaces, this alloy is used to manufacture radiant tubes, muffle furnaces, distillation kettles, flame shields, steel strand annealing tubes, braided conveyor belts, chain curtains, burner nozzles, and resistance heating elements.
Q：What is the difference between Inconel 600 and 601?
A：Inconel 600 has excellent tensile strength and resistance to stress corrosion cracking, making it ideal for high-stress environments. Inconel 601 has slightly lower tensile strength, but due to its aluminum content, it has excellent oxidation resistance.
Q：What is Inconel 601?
A：Inconel 601 is a nickel-chromium alloy with extremely high oxidation resistance below 2200°F (1200°C). The 601 alloy forms a tightly adhering oxide layer that prevents peeling even under harsh thermal cycling conditions. This alloy has good high-temperature strength and maintains good ductility even after long-term use.
Q：What is Inconel 601 material?
A：Inconel 601 alloy is a nickel-based alloy with a high chromium content (approximately 25 wt%) and added aluminum, specifically designed to resist high-temperature oxidizing atmospheres during metal and material heat treatment.
Q：Why is 601 tubing commonly used in the heat treatment industry?
A：Because of its excellent resistance to carburizing. In carburizing furnaces, nitriding equipment, and carbonitriding environments, 601 effectively prevents the penetration of carbon atoms, preventing material embrittlement.
