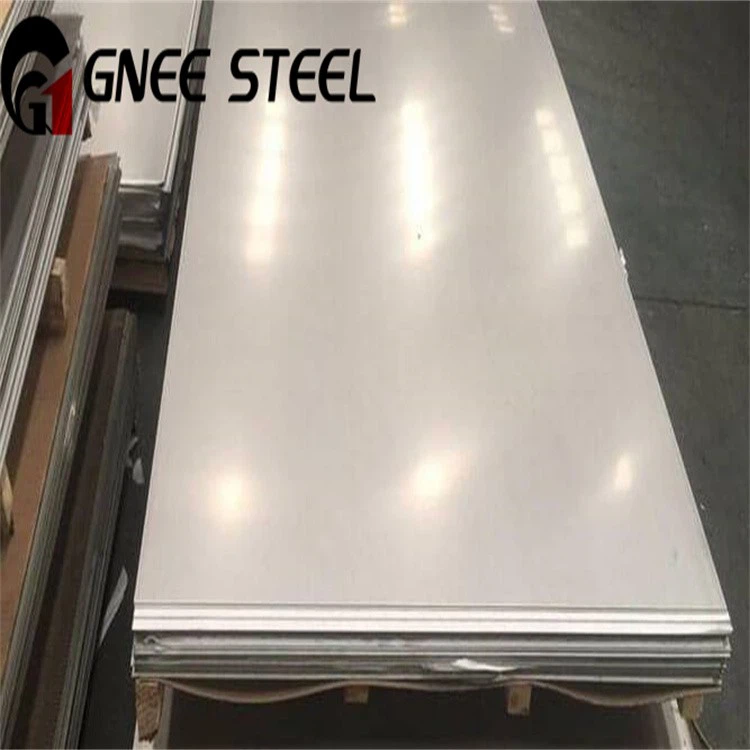

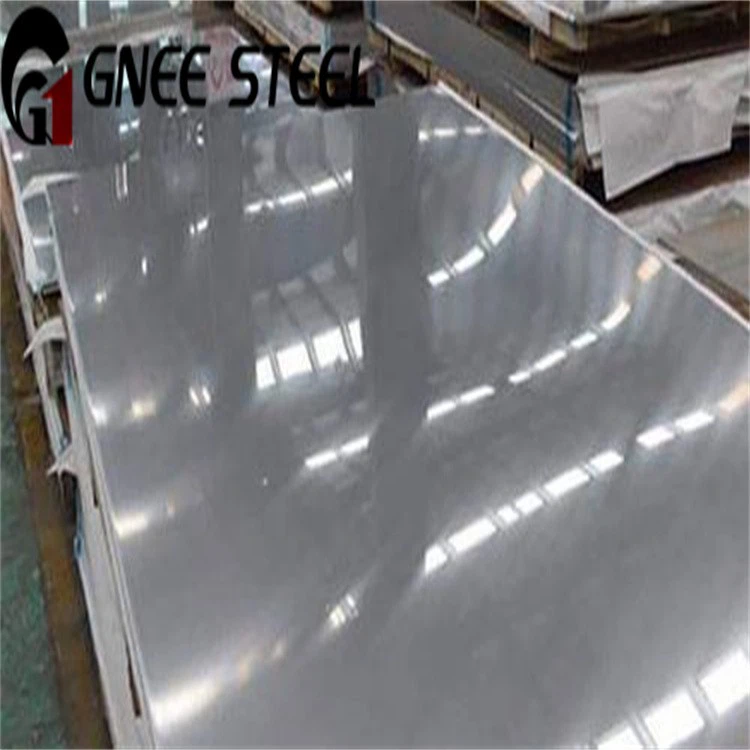

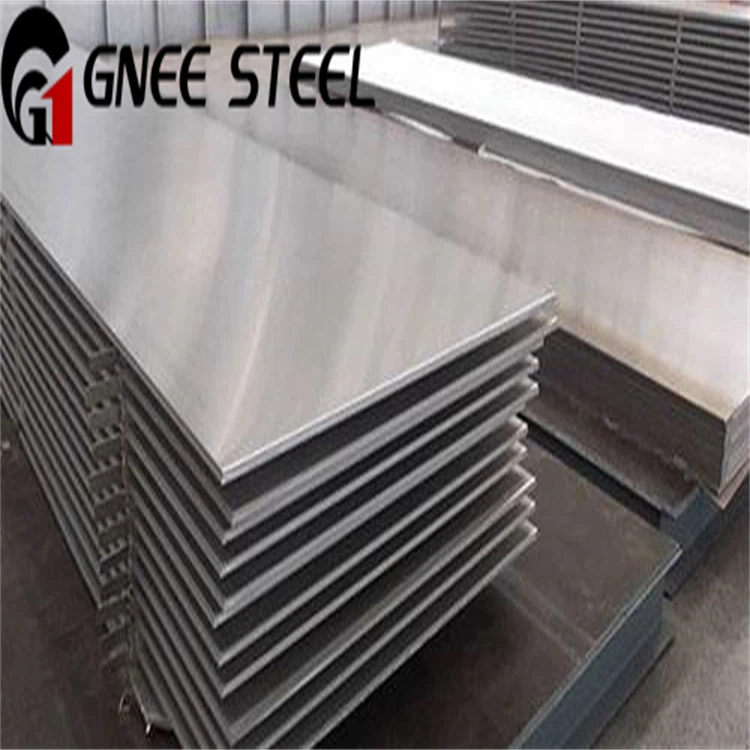

Hastelloy B-3 Plate
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Hastelloy B-3 hot-rolled plates are generally nickel alloy sheets & plates products with a thickness more than 3mm - 5mm. Hastelloy B-3 plate inherits the superior corrosion resistance, high temperature resistance and fatigue resistance of Hastelloy B-3. In terms of the manufacturing process, Hastelloy B-3 plate can be flattened and cut from coil, it also can be directly hot rolled from Hastelloy B-3 billet. Compared with sheets, Hastelloy B-3 plates have a whiter finish.
Physical Properties
| Density | g/cm3 | 9.22 | |
|---|---|---|---|
| lb/in.3 | 0.333 | ||
| Melting Range | °F | 2500 - 2585 | |
| °C | 1370 - 1418 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) |
Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell B, max | |
| All | 760 | 350 | 40 | ... | 100 |
*Mechanical Properties According to ASTM B333
