M36 Silicon Steel
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
CRNGO M36 Cold rolled non-grain oriented silicon steel coil is a special silicon steel coil material, made by cold rolling process, with non-grain oriented characteristics, used in the manufacture of efficient power equipment, such as transformers and motors, to improve energy conversion efficiency.
The M36 Silicon Steel Coil is designed to withstand extreme temperatures without losing its shape or structural integrity. This makes it an ideal choice for use in products that are exposed to high temperatures, such as electric motors and transformers.
The M36 Silicon Steel Coil is available in different sizes and thicknesses to meet the needs of different manufacturers. Our coil comes in a thickness range from 0.5mm to 1.0mm and is available in different widths depending on the customer's requirement.
|
tem |
value |
|
Type |
Non-oriented silicon steel |
|
Technique |
Cold Rolled |
|
Thickness |
0.1mm - 1.5mm |
|
Surface Treatment |
Coated |
|
Shape |
Steel Coil |
|
Standard |
GB |
|
Place of Origin |
China |
|
Model Number |
0.1-1.5mm |
|
Tolerance |
±1% |
|
Processing Service |
Bending, Welding, Decoiling, Cutting, Punching |
|
Grade |
M50W350 M50W400 B30P105 B27P090 B27P095 B27P100 |
|
Delivery Time |
8-14 days |
|
MOQ |
1Ton |
|
Application |
Transformer Core |

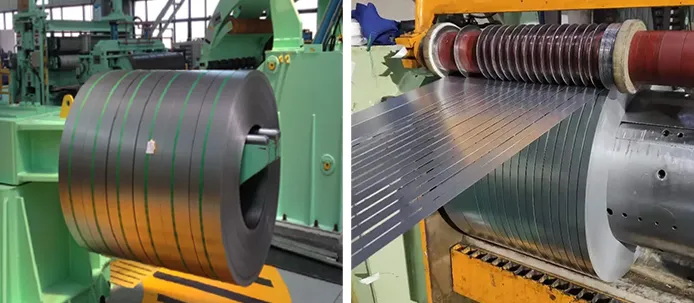

Grain Non oriented electrical steel
Dimensional and Shape Tolerances
| Nominal Thickness(mm) | Nominal Width(mm) | Flatness(%) | Camber Within 2m |
| 800~1000(0~+0.15) | 0.20(±0.02) | ≤2 | ≤1.0 |
| 800~1000(0~+0.15) | 0.35(±0.03) | ≤2 | ≤1.0 |
| 800~1000(0~+0.15) | 0.50,0.65(±0.04) | ≤2 | ≤1.0 |
| ＞1000(0~+0.15) | 0.20(±0.02) | ≤2 | ≤1.0 |
| ＞1000(0~+0.15) | 0.35,0.50(±0.03) | ≤2 | ≤1.0 |
| ＞1000(0~+0.15) | 0.65(±0.04) | ≤2 | ≤1.0 |
Non-Oriented Electrical Steel is manufactured as to render magnetic properties almost uniform in any direction of the coil. Used mainly for medium and large rotating machines, and small transformers.
● Exhibits almost uniform and excellent magnetic properties in all directions of a steel sheet.
● Typical applications: motors, generators, audio transformers, reactors, magnet switches, ballasts, magnetic fields, and electromagnets for accelerators

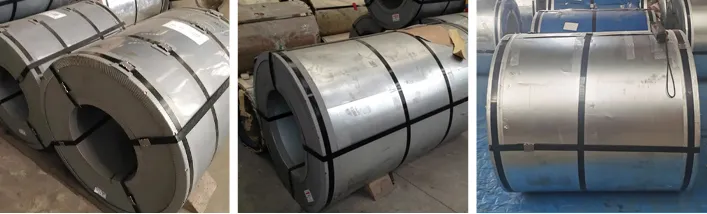

Cold rolled non oriented silicon steel packaging
Non Oriented Electrical Steel Feature
Low hysteresis loss
non-oriented silicon steel has a low hysteresis loss, which can reduce the energy loss in the energy conversion process and improve the efficiency of the equipment.
High saturation magnetic induction strength
non-oriented silicon steel has a high saturation magnetic induction strength, can achieve a high magnetization under a small magnetic field, improve the output capacity of the equipment.
Excellent high frequency characteristics
non-oriented silicon steel in the high frequency range shows good magnetic properties, suitable for high frequency transformers and motors and other applications.
Optimized magnetic circuit design
the characteristics of non-oriented silicon steel allow designers to optimize the magnetic circuit structure more freely, improve the compactness and efficiency of the equipment.
Cold rolled non oriented steel application case
