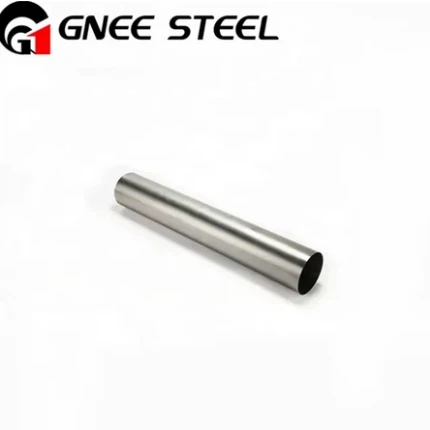

1. What are the defining chemical and mechanical properties of Inconel 617 that make it suitable for high-temperature seamless pipe applications?
Inconel 617 is a nickel-chromium-cobalt-molybdenum alloy specifically engineered for extreme environments. Its suitability for seamless pipes stems from a synergistic combination of its chemical composition and resultant mechanical properties.
Chemical Properties: The alloy's high nickel content provides inherent resistance to corrosion and oxidation, as well as a stable austenitic structure. A significant chromium content (around 22%) is crucial for forming a tenacious, self-healing chromium oxide (Cr₂O₃) layer on the surface, protecting against oxidation and sulfidation at high temperatures. The addition of cobalt and molybdenum provides solid solution strengthening, dramatically increasing the alloy's strength and creep resistance at elevated temperatures. A key differentiator is its ~1.2% aluminum content, which works with chromium to form an even more protective and stable alumina (Al₂O₃) scale at very high temperatures, offering superior oxidation resistance compared to many other alloys.
Mechanical Properties: This chemistry translates into exceptional mechanical strength and stability. At room temperature, Inconel 617 has a tensile strength of approximately 115 ksi (795 MPa) and a yield strength of 60 ksi (415 MPa). Crucially, it retains a significant portion of this strength at temperatures exceeding 1800°F (980°C). Its most celebrated mechanical property is its exceptional creep-rupture strength-the ability to withstand constant stress under high heat for extended periods without deforming or failing. This makes seamless pipes from Alloy 617 capable of handling high-pressure fluids and gases in the most demanding thermal conditions.

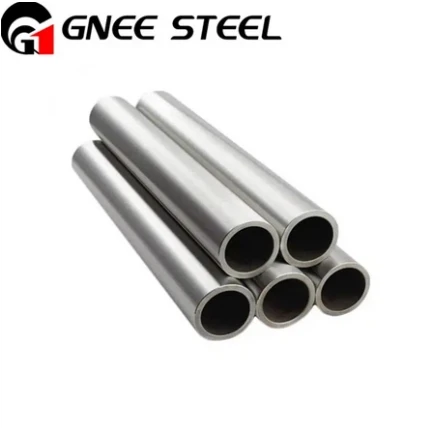

2. In which specific industries and applications is Inconel 617 Seamless Pipe most critically employed?
Inconel 617 Seamless Pipes are premium components used in applications where failure is not an option. They are found in the most critical high-temperature and high-pressure sections of advanced industrial systems.
Power Generation (Advanced Ultrasupercritical - A-USC plants): This is a primary application. A-USC power plants operate at steam temperatures above 700°C (1292°F) to achieve significantly higher thermal efficiencies (above 50%) and reduce emissions. Inconel 617 pipes are used for main steam and reheat steam lines, headers, and superheater tubes within the boiler, where they are the only materials capable of withstanding the extreme pressure-temperature conditions.
Aerospace and Gas Turbines: Used for combustion cans, transition ducts, and other hot-section components in industrial gas turbines and aero-engines. These parts experience intense heat from combustion gases and require excellent thermal fatigue resistance.
Chemical Processing and Petrochemical Industries: Employed in high-temperature pyrolysis furnaces, reformers, and heat exchangers where processes involve corrosive catalysts and atmospheres.
Nuclear Energy: Considered for intermediate heat exchangers in next-generation High-Temperature Gas-Cooled Reactors (HTGRs) and for helium piping due to its stability in inert atmospheres.
Heat Treating: Used for radiant tubes, muffles, and retorts in industrial furnaces.
3. Why is the "seamless" manufacturing process particularly important for Inconel 617 pipes in these demanding services?
The seamless manufacturing process, typically using extrusion or rotary piercing, is non-negotiable for high-performance applications for several key reasons:
Structural Integrity: A seamless pipe has a homogeneous, continuous grain structure around its entire circumference with no longitudinal weld seam. This eliminates the weld seam as a potential weak point, which is critical for containing high-pressure fluids at extreme temperatures.
Uniformity of Properties: The absence of a weld Heat-Affected Zone (HAZ) ensures consistent mechanical strength, corrosion resistance, and creep properties throughout the entire length of the pipe. A welded pipe would have variations in microstructure and properties along the weld line, making it a likely initiation site for failure under cyclic thermal and mechanical stress.
Superior Pressure Containment: The homogeneous structure of a seamless pipe can withstand higher internal and external pressures more reliably. For a plant operating at pressures exceeding 3500 psi, the integrity of every pipe is paramount to safety and operational reliability.
Resistance to Fatigue: Seamless pipes exhibit superior resistance to thermal and mechanical fatigue because there are no stress concentrators or microstructural heterogeneities associated with a weld. This is vital in systems with thermal cycling.
Using a welded pipe in these services would introduce an unacceptable risk of failure at the weld, leading to catastrophic leaks, unplanned shutdowns, and severe safety hazards.
4. What are the key considerations and challenges when welding and fabricating Inconel 617 Seamless Pipe?
Fabricating Inconel 617 requires specialized expertise due to its unique properties designed to resist degradation.
Welding Process Selection: Gas Tungsten Arc Welding (GTAW/TIG) is the predominant and preferred process due to the excellent control it offers over heat input and shielding gas. Some applications may use Shielded Metal Arc Welding (SMAW) for specific repairs or Gas Metal Arc Welding (GMAW/MIG) for productivity, but with greater care.
Filler Metal: Matching filler metal, such as ERNiCrCoMo-1, is typically used to maintain corrosion and strength properties in the weldment. In some cases, a solution-annealed post-weld heat treatment (PWHT) is recommended to relieve stresses and ensure optimum ductility and corrosion resistance in the HAZ.
Challenges:
Work Hardening: The alloy has a rapid work hardening rate. Machining and cold bending require powerful equipment, slow speeds, and positive feeds to overcome this and avoid causing excessive tool wear or inducing high residual stresses.
Heat Input Control: Excessive heat input during welding must be avoided to prevent cracking, excessive grain growth, and the formation of deleterious secondary phases.
Contamination: The alloy is highly susceptible to contamination by sulfur, phosphorus, lead, and other low-melting-point elements. These can originate from marking materials, lubricants, or shop debris and can cause severe embrittlement and cracking at high temperatures. Meticulous cleanliness is mandatory.
5. How does the performance and cost of Inconel 617 Seamless Pipe compare to other common high-temperature alloys like Inconel 625 or Hastelloy X?
The choice between these alloys is a balance of temperature requirements, environmental conditions, and project budget.
Vs. Inconel 625: Inconel 625 is strengthened by niobium and molybdenum and is superb for applications requiring exceptional corrosion resistance and good strength up to around 1200°F (650°C). However, its strength drops off more rapidly above this temperature compared to Inconel 617. Inconel 617 is superior for applications where the primary design criteria are creep strength and oxidation resistance above 1600°F (870°C). 625 is generally less expensive.
Vs. Hastelloy X: Hastelloy X is a nickel-chromium-iron-molybdenum alloy known for its outstanding oxidation resistance and good formability. It performs excellently in temperatures up to 2200°F (1200°C) in oxidizing atmospheres. However, Inconel 617 offers significantly higher creep-rupture strength at temperatures above 1500°F (815°C) due to its cobalt and solid solution strengthening mechanism. Hastelloy X may be chosen for very high-temperature, lower-stress applications, while 617 is chosen for high-temperature, high-stress, high-pressure applications.
Cost Consideration: Inconel 617 is one of the most advanced and expensive high-performance alloys. Its cost is justified only in the most critical applications where its superior high-temperature strength is a necessity for safety, efficiency, and reliability, such as in A-USC power plants. The high cost is driven by its significant content of expensive elements like nickel, cobalt, and chromium.
