The Inconel Alloy Family: Grades, UNS Numbers and High-Temperature Selection

What the Inconel Family Actually Covers

Inconel is the trade family name for a group of nickel-chromium and nickel-chromium-iron alloys that resist oxidation and corrosion at high temperature. In purchasing documents the useful identifier is the UNS number, because it fixes chemistry and acceptance requirements without ambiguity. The most frequently ordered grades in industrial supply are UNS N06600, N06601, N06625, N06690, N07718 and N07750, supplied as plate, sheet, strip, bar, seamless tube, welded pipe and forgings.

Grade UNS Key chemistry features Typical governing specification
Alloy 600 N06600 Ni 72.0 min, Cr 14.0-17.0, no Mo ASTM B168, B166, B167
Alloy 601 N06601 Cr 21.0-25.0, Al 1.0-1.7 ASTM B168, B166, B167
Alloy 625 N06625 Cr 20.0-23.0, Mo 8.0-10.0, Nb+Ta 3.15-4.15 ASTM B443, B444, B446
Alloy 690 N06690 Cr 27.0-31.0, Fe 7.0-11.0 ASTM B167, B168
Alloy 718 N07718 Nb+Ta 4.75-5.50, Mo 2.80-3.30, age hardenable ASTM B637, B670
Alloy X-750 N07750 Cr 14.0-17.0, Ti plus Al, age hardenable ASTM B637

Why Nickel-Chromium Chemistry Is Used at Temperature

Nickel provides an austenitic, inherently tough matrix with no ductile-to-brittle transition at low temperature and good tolerance of thermal cycling. Chromium forms the protective oxide that controls scaling. Where molybdenum is added, as in alloy 625, resistance to pitting and crevice corrosion in chloride media improves sharply. Where niobium, titanium or aluminium are added, as in alloy 718 and X-750, the alloy becomes precipitation hardenable and can reach yield strengths well above 1000 MPa after a controlled aging treatment.

This is the practical dividing line in selection: solid-solution grades such as N06600 and N06625 are chosen for corrosion and oxidation resistance with moderate strength, while age-hardenable grades such as N07718 and N07750 are chosen when the component must carry high mechanical load and still survive at 600-700 °C.

Forms, Tempers and Dimensional Standards

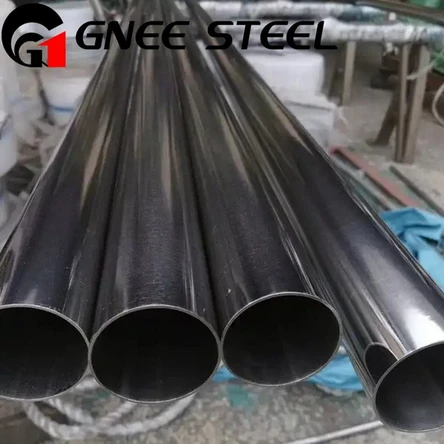

Flat product is ordered to ASTM B168 or B443, depending on grade, with general requirements taken from ASTM B906. Seamless tube and pipe follow ASTM B167, B163 or B444, while welded pipe is commonly supplied to ASTM B619 or B626. Bar and rod are governed by ASTM B166, B446 or B637, and forgings by ASTM B564. Fittings are covered by ASTM B366. Dimensions for stainless and nickel-alloy pipe are taken from ASME B36.19M, flanges from ASME B16.5 and butt-weld fittings from ASME B16.9.

Surface condition matters as much as chemistry in high-temperature service. Oxide scale, embedded iron and machining residues can act as initiation sites for corrosion, so pickled, descaled and passivated finishes are usually specified for corrosive duty.

Fabrication and Joining Notes

Nickel-base alloys work-harden quickly, so cold forming requires more power and more frequent annealing than austenitic stainless steel. Machining calls for positive rake tooling, heavy rigid set-ups, low surface speed and continuous cutting rather than dwelling. For welding, ERNiCr-3, ERNiCrMo-3 and ERNiCrMo-4 bare wires under AWS A5.14, and their covered electrode counterparts under AWS A5.11, cover the majority of GTAW, GMAW and SMAW work. Cleanliness is critical because sulphur and lead contamination causes cracking in the weld metal.

How to Specify an Inconel Grade Correctly

A workable purchase description names the grade and UNS number, the product form, the governing ASTM specification and the condition, for example annealed or solution treated plus aged. It then adds the mechanical test requirements, hardness or tensile, the corrosion or nondestructive examination requirements, and the documentation needed. Where the component operates in sour service, NACE MR0175 / ISO 15156 acceptance conditions must be stated as well. Omitting the condition is the most common cause of field failures, since the same chemistry in a cold-worked temper and in an annealed temper behaves completely differently in service.

Frequently Asked Questions

Q: Is Inconel a single alloy or a family of alloys?
A: It is a family. The name covers solid-solution grades such as alloy 600 and alloy 625 as well as precipitation-hardened grades such as alloy 718 and X-750, each with its own UNS number and specification.

Q: Which grades are age hardenable?
A: Alloy 718 (UNS N07718) and alloy X-750 (UNS N07750) are the main precipitation-hardened grades, strengthened by niobium, titanium and aluminium additions that form gamma-prime and gamma-double-prime phases during aging.

Q: What is the difference between alloy 625 and alloy 600?
A: Alloy 625 contains 8.0-10.0 % molybdenum and 3.15-4.15 % niobium, giving much higher strength and far better pitting and crevice corrosion resistance. Alloy 600 is the lower-cost grade used mainly where chloride stress corrosion cracking, not pitting, is the governing risk.

Q: Can these alloys be used at cryogenic temperatures?
A: Yes. The nickel-base austenitic grades retain ductility at very low temperature and are used in liquefied gas service. Impact testing to the applicable code requirement is normally requested for critical low-temperature components.

Q: How is welded pipe specified versus seamless pipe?
A: Seamless pipe is ordered to ASTM B167, B163 or B444 depending on grade. Welded pipe is ordered to ASTM B619 or B626, which specify the filler metal class, the weld joint type and the nondestructive examination that applies.

Q: What documents should accompany a mill shipment?
A: A certificate of compliance or test report listing heat number, chemistry, mechanical test results, applicable specification and, where required, corrosion test or radiographic examination results.
