Temperature Performance Guidelines for GH4169 and GH3044 Nickel Alloy Tubes
Temperature Performance Guidelines for GH4169 and GH3044 Nickel Alloy Tubes
GH4169 and GH3044 are high-temperature nickel-based alloy tubing widely used in aerospace and industrial applications, but they differ in their design temperature range and strengthening mechanisms. GH4169 is a precipitation-strengthened alloy, best suited for high-strength, medium-temperature applications (maximum temperature 650°C); while GH3044 is a solid-solution-strengthened alloy, specifically designed for high-temperature oxidation resistance and structural stability (maximum temperature 900–1000°C).
What is the composition of GH4169 alloy?
The chemical composition of GH4169 alloy is as follows: Ni 53.44%, Cr 18.56%, Mo 3.02%, Nb 5.3%, Al 0.44%, Ti 1.04%, C 0.026%, P 0.005%, S 0.001%, B 0.002%, Fe balance (wt.%).
1. Comparison of chemical composition (weight percentage) of GH4169 and GH3044 pipes
| Element | GH4169 (Inconel 718) | GH3044 | Key Difference |
|---|---|---|---|
| Nickel (Ni) | 50.0 – 55.0 | Balance (≥ 65.0) | GH3044 has higher Ni content |
| Chromium (Cr) | 17.0 – 21.0 | 23.5 – 26.5 | GH3044 higher Cr |
| Tungsten (W) | – | 13.0 – 16.0 | GH3044 unique – primary strengthener |
| Iron (Fe) | Balance (~18-20) | ≤ 4.0 | GH4169 has much higher Fe |
| Molybdenum (Mo) | 2.80 – 3.30 | ≤ 1.5 | GH4169 slightly higher |
| Niobium (Nb) | 4.75 – 5.50 | – | GH4169 unique – γ″ former |
| Titanium (Ti) | 0.65 – 1.15 | 0.30 – 0.70 | GH4169 higher |
| Aluminum (Al) | 0.20 – 0.80 | ≤ 0.50 | GH4169 higher |
| Carbon (C) | ≤ 0.08 | ≤ 0.10 | Similar |
| Manganese (Mn) | ≤ 0.35 | ≤ 0.50 | Similar |
| Silicon (Si) | ≤ 0.35 | ≤ 0.80 | Similar |
| Phosphorus (P) | ≤ 0.015 | ≤ 0.013 | Similar |
| Sulfur (S) | ≤ 0.015 | ≤ 0.013 | Similar |
| Boron (B) | 0.002 – 0.006 | – | GH4169 unique |
| Cerium (Ce) | – | ≤ 0.020 | GH3044 unique |
Click to download the GH4169 alloy PDF file now
2. Comparison of high-temperature mechanical properties of GH4169 and GH3044 alloy tubes
| Temperature (°C) | Property | GH4169 (718) | GH3044 |
|---|---|---|---|
| 500°C | Tensile Strength | ~1150 MPa | ~700 MPa |
| Yield Strength | ~950 MPa | ~450 MPa | |
| 600°C | Tensile Strength | ~1100 MPa | ~650 MPa |
| Yield Strength | ~900 MPa | ~420 MPa | |
| 650°C | Tensile Strength | ~1000 MPa | ~600 MPa |
| Yield Strength | ~850 MPa | ~400 MPa | |
| 700°C | Tensile Strength | ~850 MPa | ~550 MPa |
| Yield Strength | ~750 MPa | ~380 MPa | |
| 800°C | Tensile Strength | ~500 MPa | ~450 MPa |
| Yield Strength | ~450 MPa | ~300 MPa | |
| 900°C | Tensile Strength | – | ~350 MPa |
| Yield Strength | – | ~250 MPa | |
| 950°C | Tensile Strength | – | ~300 MPa |
| Yield Strength | – | ~220 MPa |
3. Comparison of GH4169 and GH3044 technologies
Understanding the metallurgical boundaries is the only way to prevent premature equipment failure.
| Technical Feature | GH4169 (Alloy 718) | GH3044 (Nickel Alloy 3044) | Industrial Impact |
| Strengthening Method | Precipitation (γ′′) | Solid Solution (Mo, W) | GH4169 requires complex aging. |
| Max Service Temp (Load) | 700°C (1300°F) | 800°C (1472°F) | Choose GH4169 for rotating loads. |
| Max Service Temp (Static) | 850°C (Over-aging risk) | 900°C - 1000°C | GH3044 for extreme heat liners. |
| Oxidation Resistance | Good | Superior (High Cr content) | GH3044 resists scaling better. |
| Weldability | Excellent (Delayed aging) | Superior (No cracks) | GH3044 is easier for sheet metal. |
| Primary Use Case | Turbine Discs, Fasteners | Combustion Liners, Muffles | Match the spec to the role. |
Contact our professionals to recommend the right alloy for your project
4. When to Switch from GH4169 to GH3044?
As a reliable supplier, Gnee Steel provides engineering guidance based on the material's lifecycle:

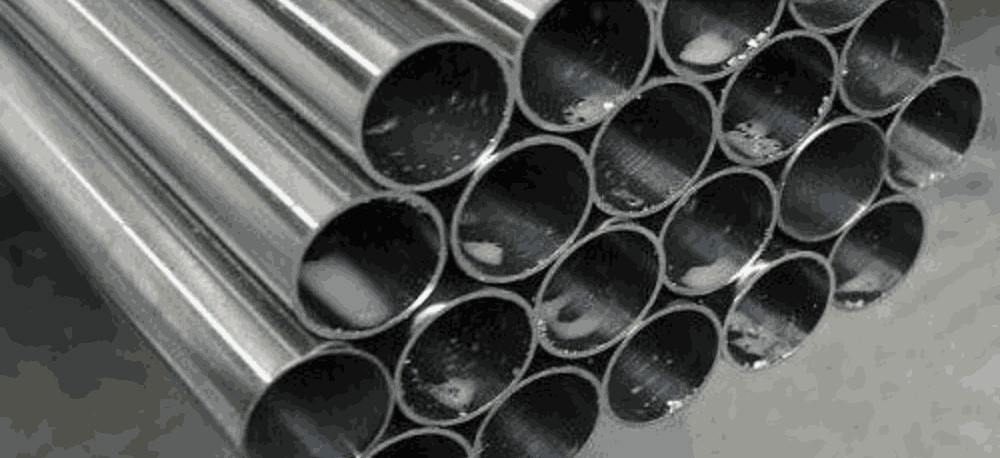

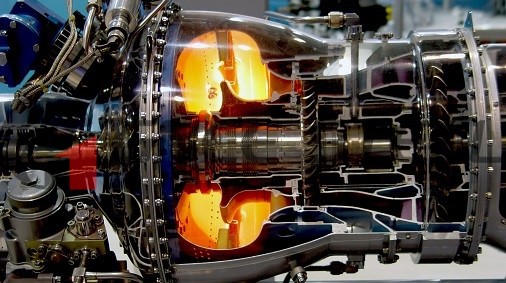

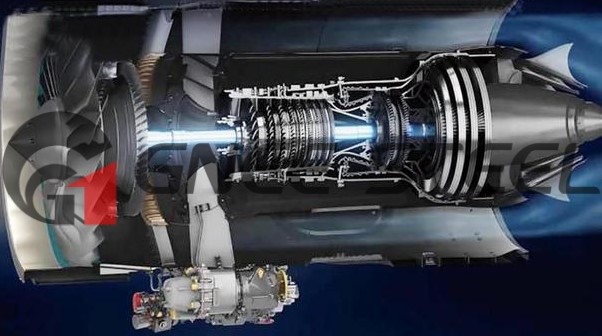

If your components are rotating shafts, turbine rings, or high-pressure fuel lines, and peak yield strength (≥1030 MPa) is critical at temperatures below 650°C, choose GH4169 seamless steel tubing. GH4169 provides the mechanical "stiffness" required for precision aerospace components.
If you are designing combustion chamber linings, industrial furnace radiant tubes, or furnace linings, and ambient temperatures reach up to 900°C, choose GH3044 steel tubing/plate. In these areas, the material's original tensile strength is less important than its resistance to thermal fatigue and oxidation.
5. Decision matrices for selecting GH4169 and GH3044 alloys
| Requirement Priority | Recommended Alloy |
|---|---|
| Highest strength (RT to 650°C) | GH4169 |
| Yield strength > 1000 MPa | GH4169 |
| Service temperature 800-1000°C | GH3044 |
| Maximum ductility and formability | GH3044 |
| Thermal fatigue resistance | GH3044 |
| Creep resistance at 650°C | GH4169 |
| No post-weld heat treatment | GH3044 |
| Non-magnetic requirement | GH3044 |
| Weight reduction | GH4169 |
| Oxidation resistance above 1000°C | GH3044 |
6. Performance Comparison Summary of GH4169 and GH3044 Alloys
| Temperature Range | Better Choice | Reason |
|---|---|---|
| RT – 650°C | GH4169 | Significantly higher strength (73% higher UTS, much higher YS) |
| 650°C – 800°C | Depends | GH4169 strength degrades; GH3044 strength becomes competitive |
| 800°C – 950°C | GH3044 | GH4169 unsuitable for load-bearing; GH3044 maintains good strength |
| 950°C – 1100°C | GH3044 | Superior oxidation resistance and strength retention |
| High ductility requirement | GH3044 | 40% elongation vs 12% for GH4169 |
| Complex forming/welding | GH3044 | Excellent formability, no PWHT required |
Contact us to customize GH4169 products to fit your project dimensions
Why choose to purchase from Gnee Alloy, a top-tier high-temperature alloy manufacturer?
We eliminate the substitution risk by providing materials refined via the VIM + VAR (Double Melting) process:
✅️Zero Inclusions: Ultra-low Phosphorus and Sulfur (≤0.010%) ensures zero-defect welds.
✅️Traceability: Every shipment is delivered with an EN 10204 3.1 Mill Test Certificate (MTC) documenting high-temp tensile and creep data.
✅️Wholesale Inventory: Massive stock of standard pipe schedules (Sch 10, 40, 80) ready for Fast Global Shipping.
✅️Custom Fabrication: We offer precision laser cutting, centerless grinding, and bending to match your blueprints.
Gnee Steel GH4169 Certificate
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express
Gnee Steel GH4169 Product Packing
Contact us for the latest export price quote for GH4169 Alloy
FAQ
Q1: Is GH4169 really unsuitable for furnace liners above 800°C?
A: Yes. GH4169 will rapidly over-age, losing its hardness and strength. While it won't melt, it will warp and sag under its own weight. GH3044 is specifically formulated with high Tungsten and Molybdenum to remain stable in these environments.
Q2: Which alloy is more cost-effective for chemical piping?
A: If the pressure is low, GH3044 is often more cost-effective because it does not require the expensive multi-stage aging heat treatment that GH4169 demands.
Q3: Can I weld GH4169 and GH3044 together?
A: Yes. Both have excellent metallurgical compatibility. We recommend using specialized nickel-based filler metals (like ERNiCr-3) to ensure the joint remains stable across different thermal expansion zones.
Q4: Do you offer trial orders for prototype development?
A: Absolutely. We support aerospace and energy innovation with Low MOQs on standard stock items.
