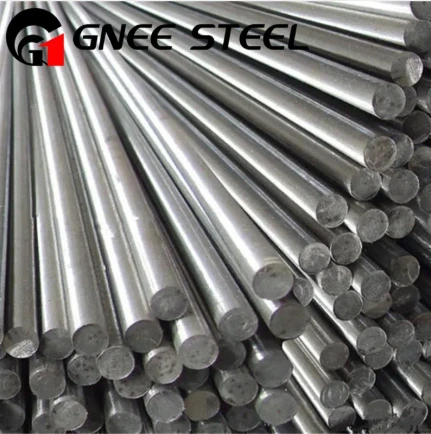

1. Monel 404 is a nickel-copper alloy known for its specific electrical properties. What is the key metallurgical difference in its composition compared to the more common Monel 400, and how does this directly enable its primary application in the electronics industry?
The pivotal difference lies in the deliberate and severe restriction of Manganese (Mn) content. While Monel 400 (UNS N04400) allows up to 2.0% manganese, Monel 404 (UNS N04404) specifies a maximum of only 0.1%. This compositional adjustment is not for strength or corrosion resistance, but to precisely control its magnetic properties.
Manganese is a element that can stabilize the austenitic (face-centered cubic) structure of nickel, but it also influences magnetic permeability. The high manganese in Monel 400 results in a higher Curie temperature (the temperature above which it loses its ferromagnetism). This means Monel 400 can exhibit magnetic permeability, especially after cold working.
Monel 404's ultra-low manganese content ensures it has an exceptionally low Curie temperature, around -12°C to -3°C (10°F to 27°F). This means that at all typical operational and ambient temperatures, Monel 404 is essentially non-magnetic. This property is paramount in the electronics industry for applications like waveguide assemblies, transistor capsules, and lead-in stems, where any magnetic interference would disrupt electromagnetic signal transmission, causing energy loss and signal degradation. It provides the structural and environmental benefits of a nickel-copper alloy without the electromagnetic drawbacks.

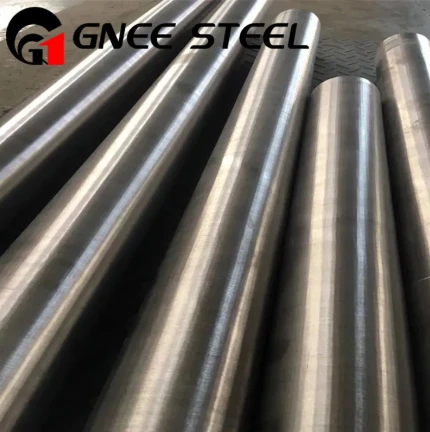

2. For a manufacturer producing waveguide components from Monel 404, what specific material property is critical to ensure performance, and how is this verified through quality control processes during the procurement of raw material bar or plate?
The most critical property is magnetic permeability. The entire value of Monel 404 for a waveguide is its ability to be non-magnetic, allowing microwave signals to pass through with minimal attenuation and distortion.
Quality Control Verification:
A standard Mill Test Certificate (MTC) confirming chemistry to ASTM B164 is the first step, proving the low manganese content. However, for high-reliability applications, this is not enough. The procurement specification must mandate direct measurement and certification of magnetic permeability.
This is typically done using a Foerster-type magnetic permeability indicator or similar device. The test is performed on the raw material according to a standard like ASTM A342.
The requirement will specify a maximum permissible permeability value at a defined field strength (e.g., 1.005 μ at 200 Oersteds).
The MTC must report the actual tested permeability value, proving it is below this strict threshold.
Additionally, the material should be in the fully annealed condition, as severe cold working can slightly increase permeability before the final annealing step restores its non-magnetic state.
This direct verification is non-negotiable for ensuring the component will perform its intended function in the electronic system.
3. A component made from Monel 404 requires brazing as an assembly step. What are the critical considerations for selecting a brazing filler metal and controlling the brazing atmosphere to ensure a sound joint without compromising the base metal's properties?
Brazing Monel 404 requires careful technique to avoid two key pitfalls: embrittlement and the formation of undesirable surface oxides.
Filler Metal Selection: The primary rule is to avoid cadmium-containing and phosphorus-containing brazing alloys. Cadmium can cause liquid metal embrittlement, and phosphorus can form brittle nickel-phosphides at the joint interface, leading to cracking. Suitable choices are:
Silver-Based Alloys: BAg-1, BAg-1a, and BAg-2 are common choices. They offer good flow characteristics and joint strength with a lower melting point than the base metal.
Nickel-Based Alloys: For higher strength and service temperatures, alloys like BNi-2 can be used, but they require higher brazing temperatures.
Atmosphere Control: This is the most critical aspect. Monel 404 forms a tenacious surface oxide of nickel and copper that must be prevented or removed to allow the filler metal to wet and flow properly.
Best Practice: Use a high-purity dry Hydrogen or Dissociated Ammonia atmosphere in a furnace. These are reducing atmospheres that actively remove surface oxides during the heating cycle.
Alternative: Vacuum furnace brazing is also an excellent method, as it prevents oxide formation altogether.
If using a torch: A highly fluxing agent specifically designed for nickel alloys (e.g., AWS FB3-A) is mandatory. The flux must be active in the brazing temperature range and must be thoroughly removed after the operation to prevent corrosive attack.
The brazing thermal cycle must also be controlled to prevent grain growth in the base metal, which could subtly affect its formability and magnetic properties.
4. Despite its niche advantages, what are the two main performance compromises one makes when selecting Monel 404 over Monel 400 for a general corrosion-resistant application?
Selecting Monel 404 involves two significant compromises in performance compared to the more versatile Monel 400:
Reduced Mechanical Strength: The very low manganese content and the requirement for an annealed structure to maintain non-magnetic properties result in Monel 404 having significantly lower mechanical strength (tensile strength, yield strength, and hardness) than Monel 400. It is a softer, more ductile material. This makes it unsuitable for any structural application or components subject to high mechanical stress, wear, or galling.
Limited High-Temperature Capability: While both alloys are used at moderate temperatures, Monel 400 can be supplied in harder tempers (e.g., hot-rolled) that retain better strength at elevated temperatures. Monel 404's strength drops off more rapidly as temperature increases. Furthermore, its optimized composition for low-temperature non-magnetism does not enhance its high-temperature oxidation resistance. For service temperatures consistently above 400-500°F (204-260°C), other alloys would be preferred.
In summary, one trades mechanical strength and high-temperature performance for exceptional non-magnetic characteristics and good formability.
5. In the context of its use in cryogenic and electrical applications, how does the thermal expansion coefficient of Monel 404 provide a specific design benefit?
The thermal expansion coefficient of Monel 404 provides a critical benefit in applications requiring thermal compatibility and hermetic sealing.
Monel 404 has a thermal expansion curve that is very closely matched to certain borosilicate glasses and ceramics commonly used in electronic packaging and feedthroughs. This property is utilized in the design of:
Transistor and diode capsules.
Electrical feedthrough assemblies for vacuum tubes and sensors.
Hermetic seals in scientific instruments.
During the glass-to-metal sealing process, the metal pin or header (made from Monel 404) and the surrounding glass are heated to a high temperature where the glass melts and fuses to the metal. As the assembly cools, the similar rates of thermal contraction for both materials prevent the development of high thermal stresses. This ensures the glass does not crack and a permanent, pressure-tight, and vacuum-tight seal is formed. This reliable performance is maintained even down to cryogenic temperatures, making it a trusted material for critical seals in aerospace and advanced research equipment.
