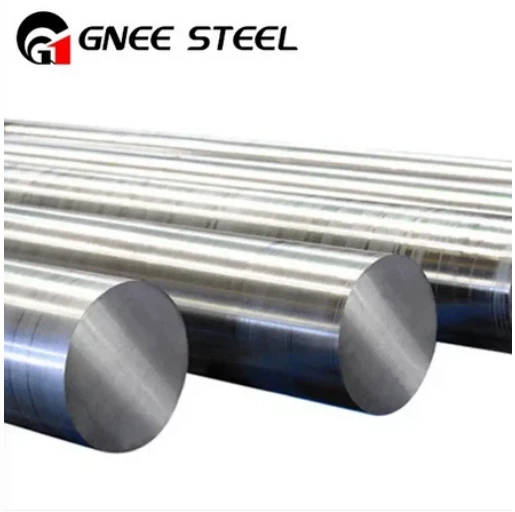

1: What are the defining metallurgical characteristics of Gr5 Ti-6Al-4V rod that make it the industry benchmark for high-performance titanium alloys?
Gr5 (Grade 5) Ti-6Al-4V is an alpha-beta (α-β) titanium alloy whose dominance stems from an optimal balance of alloying elements and resultant microstructure. The composition-6% aluminum (Al) and 4% vanadium (V)-is fundamental. Aluminum, an alpha stabilizer, increases strength, lowers density, and raises the alloy's operating temperature limit. Vanadium, a beta stabilizer, enhances room-temperature ductility, formability, and hardenability. This synergy allows for significant property tailoring through thermomechanical processing.
The microstructure is controlled via hot working (forging, rolling) above or below the beta transus temperature (~995°C). Processing below this temperature results in a bimodal microstructure: primary alpha grains in a transformed beta matrix, offering an excellent combination of strength, ductility, and fatigue crack growth resistance. Processing above the beta transus yields a lamellar or Widmanstätten structure within prior beta grains, providing superior fracture toughness and creep resistance at elevated temperatures, though with some sacrifice in ductility and fatigue strength.
For rod products, the microstructure is carefully engineered through controlled hot extrusion, rolling, or forging, followed by specific annealing treatments. This control over the phase distribution and grain morphology is what allows Gr5 rod to meet the stringent, often divergent, requirements of aerospace, medical, and marine applications.
2: How does the processing route (hot working, heat treatment, and surface finishing) of Gr5 Ti-6Al-4V rod dictate its final mechanical properties?
The properties of a Gr5 rod are not inherent; they are "imprinted" through a carefully sequenced manufacturing chain, making the processing route as important as the chemistry.
Primary Hot Working (Forging/Rolling): The initial breakdown of the cast ingot is performed at temperatures typically in the α-β phase field (~925-980°C). This refines the coarse as-cast structure, breaks up segregation, and establishes the grain flow. Cross-rolling or radial forging for round rods is particularly effective in creating a uniform, isotropic microstructure. The amount of reduction (forging ratio) directly influences grain size and subsequent strength.
Heat Treatment: This is the key to unlocking specific property sets.
Annealing: The most common treatment for rod. Mill Annealing (~700-800°C, air cool) relieves stresses from machining and provides a good balance of strength and ductility, typical for standard inventory rod.
Solution Treating and Aging (STA): This two-step process is used to achieve the highest strength. The rod is solution treated in the α-β field (e.g., 955°C) and rapidly quenched (water), retaining the β phase as metastable martensite (α') or retained β. It is then aged at a lower temperature (480-595°C) to precipitate fine α particles within the transformed β, dramatically increasing strength (UTS can exceed 1170 MPa) at the expense of some fracture toughness.
Surface Finishing: The final surface condition of the rod is critical for fatigue performance and downstream manufacturing.
Turned or Centerless Ground: Provides a smooth, precise diameter for direct machining.
Peened or Polished: Shot peening induces compressive surface stresses, closing micro-defects and drastically improving fatigue life-a mandatory step for aerospace rotating components.
Pickled or Chemically Milled: Removes the α-case (a brittle, oxygen-enriched surface layer) formed during high-temperature exposure, restoring surface ductility.
3: What are the primary design considerations and failure modes when specifying Gr5 Ti-6Al-4V rod for critical, fatigue-loaded aerospace components?
In aerospace, Gr5 rod is used in landing gear, actuator pistons, and critical fasteners where failure is catastrophic. Design must account for its unique behaviors under cyclic loading.
Design Considerations:
Fatigue Strength (S-N Curve): Designers rely on extensive fatigue data generated from actual rod stock. The fatigue endurance limit (typically at 10⁷ cycles) is a critical parameter. It is highly sensitive to surface finish, as mentioned, and the presence of notches (stress concentrators).
Notch Sensitivity: Ti-6Al-4V has a relatively high notch sensitivity compared to some steels. The fatigue notch factor (Kf) must be carefully applied in designs involving threads, grooves, or cross-holes. Generous radii and surface compression techniques are mandatory.
Crack Growth Resistance: While its crack initiation resistance is good, its fatigue crack growth rate (da/dN) in the Paris regime is a key consideration for damage-tolerant design. The lamellar microstructures (from β processing) can offer better crack growth resistance than bimodal structures.
Dominant Failure Modes:
High-Cycle Fatigue (HCF): Initiation at subsurface or surface inclusions (Type I defects), machining marks, or fretting damage. This is the most common failure mode.
Stress Corrosion Cracking (SCC): While resistant, Gr5 can be susceptible to SCC in certain environments (e.g., hot salts, methanol, nitrogen tetroxide) under sustained tensile stress. This is a major concern for components exposed to engine atmospheres or specific propellants.
Dwell Fatigue: A particularly insidious failure mode in titanium alloys. Under sustained peak load (dwell) at relatively low temperatures, time-dependent deformation can lead to crack initiation at microtextured regions, causing failure at stresses below the normal fatigue limit. This is a critical consideration for engine disc components.
4: Why is Ti-6Al-4V ELI (Extra Low Interstitial) rod the mandatory standard for medical implant applications, and how is its biofunctionality enhanced?
For medical implants-spinal rods, trauma nails, femoral stems-the standard Gr5 composition is modified to create the ELI (Extra Low Interstitial) grade. This is governed by standards like ASTM F136 and ISO 5832-3.
The ELI Requirement: The "ELI" designation mandates even stricter limits on interstitial elements: Oxygen (<0.13% vs. 0.20% max in standard Gr5), Iron (<0.25%), Carbon, and Nitrogen. Why? These interstitials increase strength but at a severe cost to ductility and fracture toughness. An implant must withstand millions of load cycles without initiating a brittle crack. The superior combination of strength (min 860 MPa UTS) and enhanced ductility (min 10% elongation) provided by ELI material is non-negotiable for patient safety, ensuring the implant will deform plastically rather than shatter if overloaded.
Enhancing Biofunctionality: The rod is a starting blank; its surface is engineered to integrate with biology.
Osseointegration: The implant surface is modified to encourage bone growth. This is achieved via grit-blasting with biocompatible media (e.g., titanium oxide) to create micro-roughness, or through additive manufacturing to create porous lattice structures that mimic bone trabeculae, allowing for biological fixation.
Surface Chemistry: Advanced techniques like anodization (to grow a thickened, bioactive TiO₂ layer) or hydroxyapatite (HA) coating via plasma spray are applied to the machined component to make the surface osteoconductive (bone-friendly).
5: How do international material standards (ASTM, AMS, ISO) ensure the quality and traceability of Gr5 Ti-6Al-4V rod across different industrial sectors?
The aerospace and medical industries operate on a foundation of rigorous material standards. These documents provide the common language and minimum requirements that ensure reliability.
Aerospace: AMS Standards
AMS 4928: This is the overarching specification for Ti-6Al-4V bars, wire, forgings, and rings (up to 4.0 inches). It details chemistry, tensile properties, and quality assurance requirements.
AMS 4967: The specification for Ti-6Al-4V ELI bars and forgings, explicitly calling out the lower interstitial limits for fracture-critical applications.
These AMS specs often invoke additional requirements from AMS 2631 (Ultrasonic Inspection) and AMS 2801 (Heat Treatment of Titanium Alloys). A rod supplied to AMS 4928 will have a full Certified Material Test Report (CMTR) traceable to the heat/lot number, including chemistry, tensile tests, microcleanliness ratings, and ultrasonic inspection records.
Medical: ASTM & ISO Standards
ASTM F136 / ISO 5832-3: The twin pillars for wrought Ti-6Al-4V ELI for surgical implants. They specify not only chemistry and tensile properties but also biocompatibility requirements (per ISO 10993), limiting harmful elements like V and Al ions (though their release is minimal). Traceability here is absolute, following Quality Management System ISO 13485, ensuring every implant can be traced back to the original rod melt.
General Industrial: ASTM Standards
ASTM B348: The standard specification for titanium and titanium alloy bars and billets. Grade 5 is covered here for non-aerospace, non-medical applications like marine fittings or high-performance automotive components. The requirements, while strong, are typically less stringent than AMS or medical standards.
In essence, the standard invoked (AMS 4928 vs. ASTM F136) immediately signals the rod's intended service environment-aerospace, medical, or industrial-and defines the entire chain of testing, documentation, and accountability required for its use.
