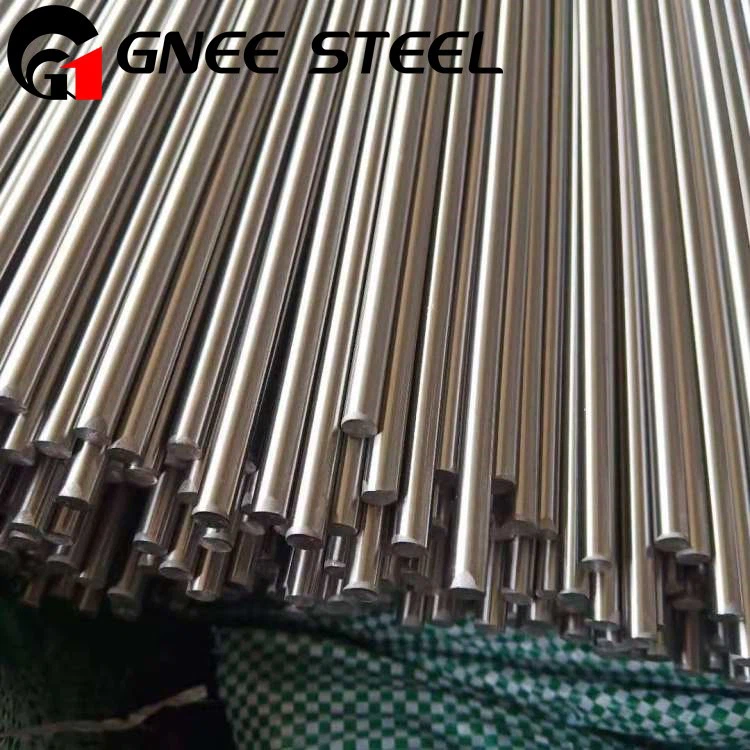

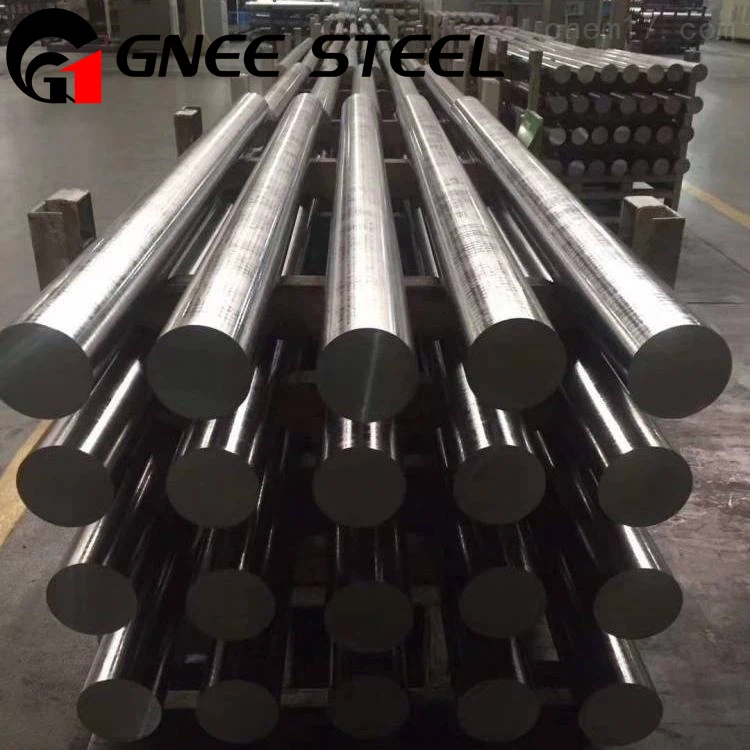

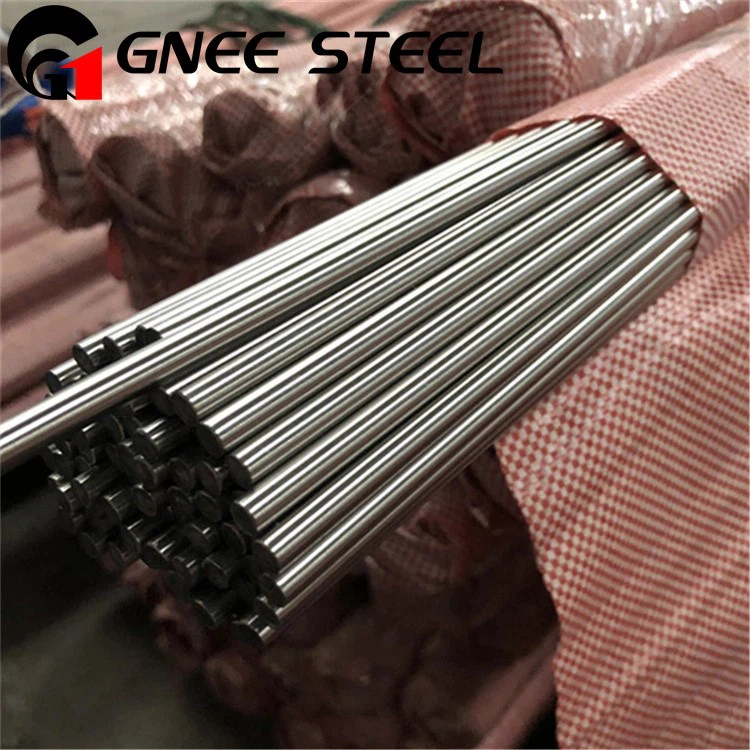

Hastelloy B3 Round Bar
Hastelloy B3 Rod is a nickel-molybdenum alloy known for its excellent corrosion resistance, especially in reducing environments such as hydrochloric and sulfuric acids. It is widely used in various industrial fields where high performance and corrosion resistance are essential.
What is the difference between Hastelloy B2 and B3 alloy rods?
The main difference between Hastelloy B3 and B2 rods is corrosion resistance. Hastelloy B3 has excellent corrosion resistance in hydrochloric acid at all concentrations and temperatures, while Hastelloy B2 has a moderate corrosion resistance.
What is Hastelloy B3 Alloy Rod used for?
Hastelloy B3 Rod is a nickel-molybdenum alloy that is particularly suitable for equipment that handles reducing chemical environments. It is widely used in chemical process industries involving sulfuric acid, phosphoric acid, hydrochloric acid and acetic acid.
What is the chemical composition of B3 alloy rod?
B-3 alloy rod is a nickel-molybdenum solid solution strengthened high temperature alloy with a nominal chemical composition of 65% nickel and 28% molybdenum, with additions of iron, manganese, tungsten and cobalt. It is usually sold under the trade name Hastelloy B-3 and the common name is UNS N10675.
Specifications for Hastelloy UNS N10675 B3 Round Bars / Rods / Wires:
| Standard | ASTM B335 / ASME SB 335 |
| Finish | Bright, Polish & Black |
| Form | Round Bar, Square Bar, Hex (A/F) Bar, Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Grade | Hastelloy B3 (UNS N10675) |
Hastelloy B3 (UNS N10675) Round Bar Chemical Composition
| Element | Hastelloy B3 |
| Nickel | 65 min. |
| Molybdenum | 28.5 |
| Chromium | 1.5 |
| Iron | 1.5 |
| Tungsten | 3 max. |
| Manganese | 3 max. |
| Cobalt | 3 max. |
| Aluminum | 0.5 max. |
| Titanium | 0.2 max. |
| Silicon | 0.1 max. |
| Carbon | 0.01 max. |
| Niobium | 0.2 max. |
| Vanadium | 0.2 max. |
| Copper | 0.2 max. |
| Tantalum | 0.2 max. |
| Zirconium | 0.01 max. |
Hastelloy B3 (UNS N10675) Round Bar Physical & Mechanical Properties
| Element | Hastelloy B-3 |
| Density | 9.2 g/cm3 |
| Melting Point | 1370 °C (2550 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa –760 |
| Yield Strength (0.2%Offset) | Psi – 52,000 , MPa – 350 |
| Elongation | 40 % |
| Size of Hastelloy B3 Round Bar | |||||||
|---|---|---|---|---|---|---|---|
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
| Diameter(mm) | Bar Size | Diameter (Inch) | Bar Size | Diameter (mm2) | Bar Size | Diam. (mm) | Bar Size |
| 6 | 6 | 0.500 | #4 | 300 | 20M | 13 | 13 |
| 5.5 | 5.5 | 0.375 | #3 | 200 | 15M | 10 | 10 |
| 8 | 8 | 0.750 | #6 | 700 | 30M | 19 | 19 |
| 9 | 9 | 0.875 | #7 | 1000 | 35M | 22 | 22 |
| 7 | 7 | 0.625 | #5 | 500 | 25M | 16 | 16 |
| 11 | 11 | 1.125 | #9 | 2500 | 55M | 29 | 29 |
| 5 | 5 | 0.250 | #2 | 100 | 10M | 6 | 6 |
| 10 | 10 | 1.000 | #8 | 1500 | 45M | 25 | 25 |
| 14 | 14 | 1.375 | #11 | 35 | 35 | ||
| 32 | 32 | ||||||
| 12 | 12 | 1.250 | #10 | 32 | 32 | ||
| 20 | 20 | 1.750 | #14 | 44 | 44 | ||
| 22 | 22 | 1.875 | #15 | 48 | 48 | ||
| 16 | 16 | 1.500 | #12 | 38 | 38 | ||
| 18 | 18 | 1.625 | #13 | 41 | 41 | ||
| 28 | 28 | 2.250 | #18 | 57 | 57 | ||
| 50 | 50 | ||||||
| 25 | 25 | 2.000 | #16 | 51 | 51 | ||
| 40 | 40 | ||||||
| 36 | 36 | ||||||
| 44 | 44 | ||||||
Gnee Steel is a supplier of Hastelloy B3 Round Bar, with products covering tubes: Seamless tubes: Size: 4 - 219 mm; Thickness: 0.5 - 20 mm; Welded tubes: Size: 5.0 - 1219.2 mm; Thickness: 0.5 - 20 mm, Plates: Plate thickness 0.1 to 100 mm; Plate width 10-2500 mm, Strips, Alloy Round Bar Sizes: Diameter 3-800 mm;, Flat Bar Sizes: Thickness 2-100 mm; Width: 10-500 mm, Hexagonal Bar Sizes: 2-100 mm;, Wire and Extruded Profiles. We work with steel mills to provide customers with 625 alloy, and its products meet or exceed many leading industry standards, including ASTM, ASME, SAE, AMS, ISO, DIN, EN and BS standards.
Gnee Steel stocks and sells Hastelloy B3 Round Bar, Tubes, Pipes, Plates, Strips, Plates, Round Bars, Flat Bars, Forged Billets, Hexagons, Wires and Extruded Profiles. Feel free to contact us for a quote at ss@gneesteel.com
