GH3030 vs XH78T Seamless Tubes: Equivalence Guide

GH3030 and XH78T at a Glance

GH3030 and XH78T (also written KhN78T and known as EI435 in the Chile designation system) are nickel-based superalloy seamless tubes built on the same 80% nickel and 20% chromium base. They are specified for extreme aerospace exhaust systems and high-temperature combustion components such as gas turbine combustion liners, burner parts, and jet engine hot sections.

Both grades deliver excellent thermal strength and oxidation resistance at operating temperatures up to 800-900°C and above, retain good ductility for machining, and keep a stable single-phase austenitic structure that provides structural stability and effective resistance to thermal fatigue. These characteristics make them well suited to components that experience repeated heating and cooling cycles during engine operation.

Chemical Composition Comparison

The nominal chemistries of the two grades are compared below. The main practical differences lie in the tighter phosphorus, sulfur, and iron limits of XH78T compared with the published GH3030 values.

Element (max unless shown) XH78T GH3030
Carbon C 0.12 0.12
Silicon Si 0.8 0.8
Manganese Mn 0.7 0.7
Phosphorus P 0.015 0.03
Sulfur S 0.012 0.020
Chromium Cr (%) 19-22 19-22
Nickel Ni Balance Balance
Aluminum Al 0.15 0.15
Titanium Ti (%) 0.15-0.35 0.15-0.35
Iron Fe 0.6 1.5
Copper Cu 0.2 0.2

Physical and Mechanical Data

Both grades share a density of 8.4 g/cm3 (0.303 lb/in3) and a melting range of 1374-1420°C (2507-2588°F). The mechanical properties below are taken from the two product specifications referenced for these tubes.

Grade / Specification Tensile Strength (MPa) Yield Strength (MPa) Elongation
XH78T, TU 14-3-520-76 588 255 35%
GH3030, GB/T15062-2008 590 - 35%

The near-identical tensile and elongation values underpin the widely accepted view that the two grades are interchangeable in most exhaust-system and combustion-component applications. For design purposes, however, the applicable specification for the intended region and the buyer's own standard should always be confirmed.

Manufacturing and Quality Control

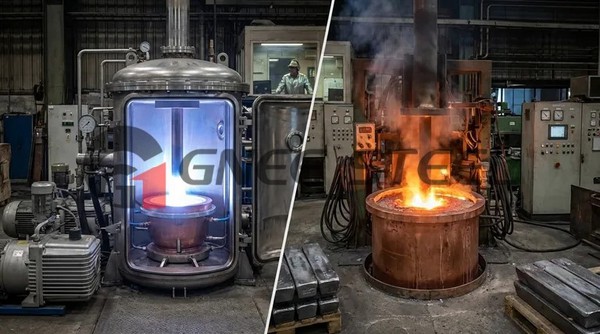

Modern production of GH3030 seamless tubing uses vacuum induction melting (VIM) followed by electroslag remelting (ESR). This dual-refining route yields a cleaner alloy with significantly fewer inclusions than legacy melt practices, which improves thermal fatigue resistance in cyclic high-temperature service. Tubes are manufactured by cold drawing or cold rolling with precision control, typically in the 6 mm to 219 mm outside diameter range with wall thicknesses from 0.5 mm to 20 mm, and are supplied in the solution-treated and bright annealed (BA) condition.

The bright annealed finish produces a mirror-like inner and outer surface that helps prevent carbon buildup in high-velocity exhaust gases. Quality verification normally includes 100% ultrasonic testing (UT) and eddy current testing (ECT), and each lot is identified with furnace number, standard, and size information for full traceability.

Equivalence and Replacement Considerations

XH78T is the traditional grade for Chile gas turbine combustion liners and burner parts, produced to GOST 5632 and the TU 14-3-520-76 tube specification, and is known for high plasticity and excellent weldability at elevated temperature. GH3030, produced to Chinese GB standards, is built on the same 80Ni-20Cr base and is widely used as a one-for-one replacement grade in maintenance and repair of engines originally designed for XH78T, provided the applicable chemistry, mechanical, and dimensional requirements are verified against the component's original specification.

For MRO programs, the practical equivalence covers chemistry, tensile and elongation performance, density, melting range, and service temperature capability. Engineering documentation should be reviewed in the language required by the operator, and certificates issued against the relevant GB or GOST standard should confirm the exact grade, heat, dimensions, and test results before replacement parts are released to service.

FAQ

Can GH3030 be used to repair an engine originally designed for XH78T?

Yes, in most cases. GH3030 and XH78T share the same 80Ni-20Cr base, near-identical tensile and elongation values, the same density and melting range, and the same high-temperature capability, so GH3030 is commonly accepted as a one-for-one replacement grade for combustion liners, burner parts, and exhaust components. The specific chemistry and test data should still be checked against the original component specification before repair.

How do GH3030 and XH78T differ in their specification basis?

XH78T is a Chile grade produced to GOST 5632, with tubes commonly supplied to TU 14-3-520-76. GH3030 is a Chinese grade supplied under GB standards, with seamless tubes referenced to GB/T15062-2008. The practical composition and mechanical ranges of the two grades are closely aligned.

What is the benefit of VIM plus ESR melting for XH78T-type pipes?

Vacuum induction melting followed by electroslag remelting removes more inclusions and produces a cleaner, more homogeneous alloy than conventional air melting. Fewer inclusions improve thermal fatigue resistance, which matters in components that cycle repeatedly between ambient and combustion temperatures.

Why is a bright annealed surface important for exhaust tubes?

A mirror-like bright annealed inner and outer surface reduces the sites where combustion deposits and carbon can build up in high-velocity exhaust gases, and it supports more predictable gas flow and heat transfer through the tube.

What size ranges are typical for aerospace MRO tubing?

Seamless GH3030 and XH78T replacement tubing is commonly available from 6 mm to 219 mm outside diameter with wall thicknesses from 0.5 mm to 20 mm, produced by cold drawing or cold rolling to precision tolerances.

What testing is normally performed on these tubes?

Production lots are typically verified by 100% ultrasonic testing and eddy current testing, together with dimensional checks, chemical analysis, and mechanical testing, with each tube traceable to its furnace number and the applicable standard.
