In the highly competitive field of industrial furnace manufacturing, maintenance, repair, and operation (MRO), maintaining high-temperature reliability within a budget remains a challenge. If your current specifications require Inconel 600 (UNS N06600) steel pipe for applications at 750°C to 800°C or below, you are likely paying too much for unnecessary performance.
One of the biggest dilemmas facing purchasing managers is brand premium: "Why pay a 30-50% premium for a Western brand when there are equivalent high-purity products available?" Our GH3030 seamless steel pipe is the ideal alternative, offering nearly identical oxidation resistance and thermal stability at a more competitive ex-factory price.
Get a price comparison between GH3030 and Inconel 600

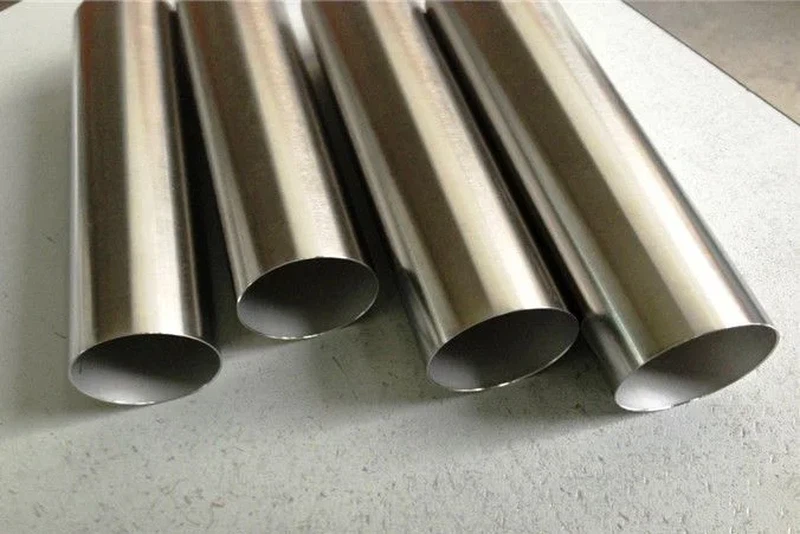

GH3030 and Inconel 600 Seamless Steel Pipes: Performance and Cost-Benefit Analysis
GH3030 and Inconel 600 Seamless Steel Pipes: Performance and Cost-Benefit Analysis
GH3030 (Chinese nickel-chromium alloy) and Inconel 600 (ASTM B167/NO6600) are both high-nickel alloys designed for high-temperature strength (> 650°C) and excellent corrosion resistance, making them ideal for furnace components, the nuclear industry, and the chemical industry. Inconel 600 typically meets higher globally recognized standards and offers slightly better oxidation resistance at temperatures up to 1093°C; while GH3030 is generally a more cost-effective option in the Asian market for similar high-temperature corrosion resistant applications.
What are the components of GH3030?
GH3030 is a solid solution strengthened superalloy, primarily composed of nickel (Ni) and chromium (Cr), typically with 80% Ni and 20% Cr. This simple yet efficient alloy system provides excellent mechanical and chemical stability even under harsh conditions.
Chemical Composition: GH3030 Seamless Tube vs Inconel 600 Seamless Tube
| Element | GH3030 Seamless Tube Content (%) | Inconel 600 Seamless Tube (UNS N06600) Content (%) |
|---|---|---|
| Nickel (Ni) | Balance (≥ 75.0) | ≥ 72.0 |
| Chromium (Cr) | 19.0 – 22.0 | 14.0 – 17.0 |
| Iron (Fe) | ≤ 1.5 | 6.0 – 10.0 |
| Titanium (Ti) | 0.15 – 0.35 | – |
| Aluminum (Al) | ≤ 0.15 | – |
| Carbon (C) | ≤ 0.12 | ≤ 0.15 |
| Manganese (Mn) | ≤ 0.70 – 0.80 | ≤ 1.00 |
| Silicon (Si) | ≤ 0.80 – 1.00 | ≤ 0.50 |
| Phosphorus (P) | ≤ 0.030 | ≤ 0.030 |
| Sulfur (S) | ≤ 0.020 | ≤ 0.015 |
| Copper (Cu) | ≤ 0.20 | ≤ 0.50 |
Note: GH3030 is a Chinese superalloy (also known as GH30) that is broadly considered equivalent or similar to Inconel 600, both being solid-solution strengthened nickel-chromium alloys . However, GH3030 typically contains titanium (0.15–0.35%) for additional strengthening and has a higher chromium content (19–22% vs. 14–17%), while Inconel 600 has higher iron content (6–10% vs. ≤1.5%)
Mechanical Properties: GH3030 Seamless Tube vs Inconel 600 Seamless Tube
| Property | GH3030 Seamless Tube (Annealed) | Inconel 600 Seamless Tube (Annealed) |
|---|---|---|
| Tensile Strength, Ultimate (Room Temp) | ≥ 685 MPa | ≥ 550 – 620 MPa |
| Tensile Strength, Yield (0.2% Offset) (Room Temp) | ≥ 295 MPa | ≥ 205 – 240 MPa |
| Elongation at Break (Room Temp) | ≥ 30 – 35% | ≥ 30 – 40% |
| Hardness, Brinell (HB) | ≤ 200 | 120 – 290 |
| Density | 8.4 g/cm³ | 8.42 – 8.47 g/cm³ |
| Melting Range | 1374 – 1420°C | 1370 – 1425°C |
| Modulus of Elasticity | 210 – 224 GPa | 157 – 207 GPa |
| Thermal Conductivity (at 20-100°C) | 15.1 W/m·K | 12.85 – 14.8 W/m·K |
| Coefficient of Thermal Expansion (20-100°C) | 12.8 × 10⁻⁶/°C | 11.5 – 13.3 × 10⁻⁶/°C |
| Specific Heat | 565 J/kg·K (at 150°C) | 444 J/kg·K |
| High-Temperature Tensile (700°C) | ≥ 295 MPa | Not specified (typical ~300-350 MPa) |
| Maximum Continuous Service Temperature | ~800°C | ~700°C |
| Oxidation Resistance | Excellent up to 900-1000°C | Excellent up to 1100°C |
| Magnetic Permeability | Non-magnetic | ~1.01 (slightly magnetic) |
Click to get the latest export price quote for GH3030 seamless steel pipe
1. Comparison of GH3030 and Inconel 600 Properties

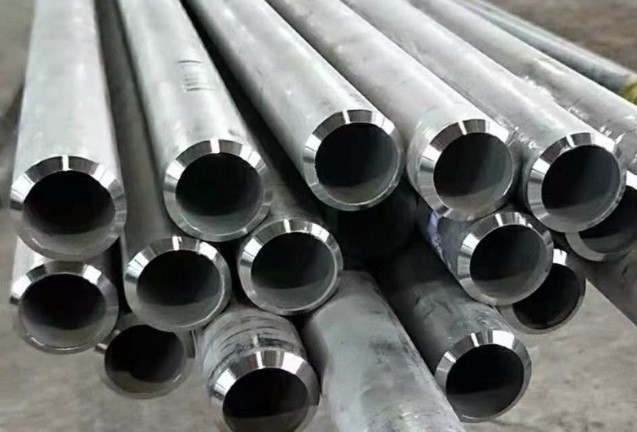

GH3030 Alloy
Smelting Process: Our GH3030 is refined using vacuum induction melting (VIM) + electroslag remelting (ESR) processes, ensuring ultra-low impurity content and high microstructure homogeneity.
Advantages: GH3030 exhibits excellent oxidation resistance and thermal fatigue strength within a temperature range of 700°C to 800°C, with performance nearly identical to Inconel 600.
Inconel 600 Alloy
Applicable Temperature Range: While Inconel 600 can withstand temperatures up to 1100°C in non-load-bearing environments, its performance is often "overestimated" for medium-temperature (800°C) furnace components.
Cost: Global supply chain markups and brand recognition make Inconel 600 a more expensive wholesale option.
Choose the product type that suits you
2. Key Specifications of GH3030 and Inconel 600
As a direct manufacturer, Gnee Steel supplies GH3030 seamless steel pipes that meet the performance standards required by ASTM B167.
| Property | GH3030 (Our Factory) | Inconel 600 (Standard) |
| Nickel (Ni) % | **~ 80.0** | Min. 72.0 |
| Chromium (Cr) % | 19.0 - 22.0 | 14.0 - 17.0 |
| Tensile Strength (
σbσb ) |
≥ 735 MPa | ≥ 550 MPa |
| Yield Strength (
σ0.2σ0.2 ) |
≥ 245 MPa | ≥ 240 MPa |
| Surface Finish | Bright Annealed (Mirror-like) | Annealed & Pickled |
| Budget Impact | Cost-Effective Solution | High Premium |
3. Why GH3030 Can Boost Your Competitiveness
Choosing a reliable supplier like us for GH3030 gives you more than just lower wholesale prices:
✅️Factory Direct Advantage: Source directly from our large factory in China, bypassing international distributors and enjoying direct export benefits.
✅️Precise Dimensions: We offer custom sizes ranging from 6.0mm to 219mm outer diameter, ensuring a perfect fit for your heat exchanger tubes or furnace baffles with zero waste.
✅️Superior Surface Finish: Every GH3030 tube undergoes a bright annealed (BA) finish. This smooth, scale-free surface prevents carbon buildup, a common point of failure in industrial furnace components.

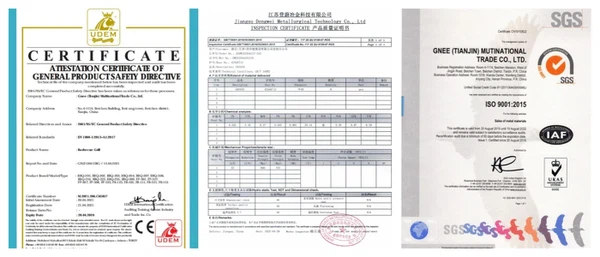

Gnee Steel GH3030 Certificate
Click to contact our professionals for material recommendations for your project
4.GH3030 vs. Inconel 600 Seamless Tubes: In-depth Cost and Efficiency Comparison Table
| Comparison Dimension | GH3030 Seamless Pipe (Factory Direct) | Inconel 600 Seamless Pipe (Market Standard) | Cost/Efficiency Impact (ROI) |
|---|---|---|---|
| Core Composition (Ni/Cr) | ~80% Ni / 20% Cr (High Cr content) | 72% Ni / 15.5% Cr (Average) | GH3030's high chromium content provides a more stable oxide film below 800°C. |
| Raw Material Cost (Initial Cost) | Medium (Factory direct pricing) | High (Includes international brand premium & logistics costs) | GH3030 can reduce procurement costs by 25% - 40%. |
| Lead Time | Short (Stock available: 3-7 days) | Long (Typically 4-8 weeks, subject to global supply chain fluctuations) | Shortens project downtime and improves MRO maintenance efficiency. |
| Stability at 800°C | Excellent (Specifically designed for 800°C) | Excellent (But design redundant; typically can reach 1100°C) | Under 800°C operating conditions, Inconel 600 represents "over-engineering," adding unnecessary expense. |
| Processing & Welding Efficiency | Excellent (High plasticity, easy cold forming/welding) | Good (Relatively fast work hardening rate) | GH3030's high plasticity reduces processing scrap rates and welding man-hours. |
| Surface Finish Efficiency | Bright Annealed (BA) Mirror finish (No secondary polishing required) | Typically Annealed & Pickled (AP) surface | BA finish prevents coking, reducing post-maintenance cleaning and frequency. |
| Supply Chain Stability | Very High (Direct supply from large Chinese factories) | Moderate (Susceptible to export restrictions or quotas) | Reliable supply chain ensures long-term stable availability of spare parts. |
| Comprehensive ROI | Very High (Low input, equivalent lifespan) | Medium (High input, equivalent lifespan) | GH3030 is the most cost-effective solution for environments below 800°C. |
📦 Packaging and Shipping
All Nickel Based Alloy products are packaged using the following methods:
Wooden pallets or crates
Moisture-proof packaging
Labels with furnace number, standard, and size labels
Shipped worldwide by sea, air, or express

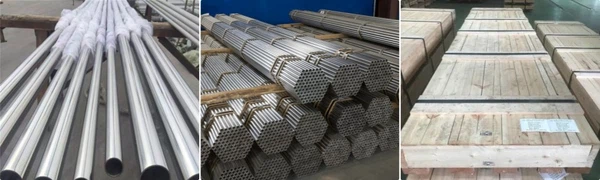

Gnee Steel GH3030 Product Packing
Contact us for the latest export price quote for GH3030 Alloy
FAQ
Q1: Is the chemical composition of GH3030 similar enough to Inconel 600?
A: Yes. Both are high-nickel alloys with excellent thermal stability. In fact, GH3030 often has a higher Chromium content (up to 22%), which can actually provide better Oxidation Resistance in specific 800°C furnace atmospheres than Inconel 600.
Q2: Will switching to GH3030 affect the weldability of my system?
A: Not at all. GH3030 is famous for its Excellent Weldability. It can be joined using standard TIG/MIG processes, and it is highly compatible with existing Inconel or stainless steel structures, making it an ideal Replacement Solution.
Q3: Can I get GH3030 pipes certified to ASTM standards?
A: Absolutely. While GH3030 is a GB grade, our Precision Manufacturing process aligns with ASTM B167 and AMS standards. We provide full Material Test Certificates (EN 10204 3.1) to guarantee compliance.
Q4: How much can I realistically save by switching?
A: Depending on the volume and size, our customers typically see a 25% to 40% reduction in material costs when moving from Western-sourced Inconel 600 to our Factory Price GH3030 for 800°C applications.
