What is the ASTM B444 /ASME SB444 standard?
ASTM B444 (latest 2023 edition) and its ASME SB444 counterpart are global seamless pipe & tube standards tailored for Inconel 625 (UNS N06625), the dominant versatile nickel alloy. They cover two heat-treated grades: Grade 1 for services up to 593°C, and Grade 2 for high-temperature (above 593°C) creep-rupture critical scenarios. The specs strictly define chemical composition, mechanical performance, dimensional tolerance, and corrosion resistance, making them widely adopted in heat exchangers, petrochemical facilities, cryogenic systems, and pressure vessels across harsh industrial fields.

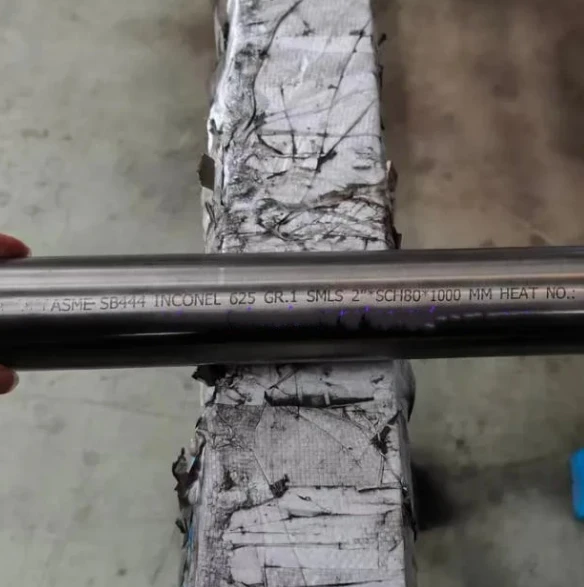

GNEE manufactures cold-worked seamless pipes that meet ASTM B444 UNS N06625 standards, offering a wide range of sizes. UNS N06625 Inconel 625 is a non-magnetic nickel-based alloy containing a minimum of 58% nickel and at least 8% molybdenum. Its European equivalent is EN WNr 2.4856. This alloy provides exceptional corrosion resistance and maintains outstanding performance even under extreme conditions, from very low temperatures up to 1100°C.
ASME SB444 UNS N06625 Nickel Alloy boiler heat exchanger tube Chemical Composition:
| Element | Limit | Element | Limit |
|---|---|---|---|
| Nickel (Ni) | 58.0 min | Cobalt (Co) | 1.0 max |
| Chromium (Cr) | 20.0–23.0 | Molybdenum (Mo) | 8.0–10.0 |
| Niobium + Tantalum | 3.15–4.15 | Iron (Fe) | 5.0 max |
| Carbon (C) | 0.10 max | Aluminum (Al) | 0.40 max |
| Manganese (Mn) | 0.50 max | Titanium (Ti) | 0.40 max |
| Silicon (Si) | 0.50 max | Phosphorus (P) / Sulfur (S) | 0.015 / 0.015 max |
ASTM B444 UNS N06625 Seamless boiler Tube Mechanical Properties:
| Grade | Condition | Tensile (min) | Yield (min) | Elongation in 2 in (min) |
|---|---|---|---|---|
| Grade 1 | Annealed | 120 ksi (827 MPa) | 60 ksi (414 MPa) | 30% |
| Grade 2 | Solution annealed | 100 ksi (690 MPa) | 40 ksi (276 MPa) | 30% |
ASME SB 444 Tube Heat Treatment：
- UNS N06625 Grade 1 (Annealed)：
Heat treatment: Minimum 871°C, typical range 871–1038°C, air cooling, fine grain structure. Per ASTM B446, min yield strength 414 MPa, min tensile strength 827 MPa, elongation ≥30%. Designed for service up to 593°C. Fine grains deliver higher room-temperature strength, good formability and excellent wet corrosion resistance.
- UNS N06625 Grade 2 (Solution Annealed)
Heat treatment: Minimum 1093°C, typical range 1093–1204°C, rapid cooling. Optional stabilization anneal at 982°C to reduce sensitization risk. Per ASTM B446, min yield strength 276 MPa, min tensile strength 690 MPa, elongation ≥30%. For service above 593°C. Coarser grains maximize creep and stress rupture strength under high-temperature loads.
Dimensional Tolerances for Alloy 625 Small Diameter Thin-Wall Tubing：
This tolerance table applies to Alloy 625 thin-wall tubing with OD ≤1 1/4 in (31.8 mm). It defines allowable deviations for outer diameter, inner diameter and wall thickness. Ovality is limited to 3% for thin-wall variants. Straightness follows 1:600. Cut-to-length tolerances are listed separately. Wall tolerance switches to ±0.0005 in when wall <0.005 in. These tight controls guarantee consistent dimensional accuracy for precision aerospace and chemical processing applications.
Alloy 625 Small Diameter Thin-Wall Tubing Tolerance
| Specified OD in. (mm) | OD Plus in. (mm) | OD Minus in. (mm) | ID Plus in. (mm) | ID Minus in. (mm) | Wall Thickness +% | Wall Thickness -% |
|---|---|---|---|---|---|---|
| ＜3/32 (2.4) | 0.002 (0.05) | 0 | 0 | 0.002 (0.05) | 10 | 10 |
| 3/32 ~ 3/16 (2.4 to 4.8, upper excluded) | 0.003 (0.08) | 0 | 0 | 0.003 (0.08) | 10 | 10 |
| 3/16 ~ 1/2 (4.8 to12.7, upper excluded) | 0.004 (0.10) | 0 | 0 | 0.004 (0.10) | 10 | 10 |
| 1/2 ~1 1/4 (12.7 to31.8, included) | 0.005 (0.13) | 0 | 0 | 0.005 (0.13) | 10 | 10 |
Alloy 625 Cut-to-Length Tolerance
| Length ft (m) | Tube Size in.(mm) | Plus Tolerance in.(mm) | Minus Tolerance in.(mm) |
|---|---|---|---|
| ＜1 (0.30) | Up to 1.250 (31.8), incl. | 1/32 (0.8) | 0 (0) |
| 1 to 4 (0.30~1.22), incl. | Up to 1.250 (31.8), incl. | 1/16 (1.6) | 0 (0) |
| ＞4 to10 (1.22~3.0), incl. | Up to 1.250 (31.8), incl. | 3/32 (2.4) | 0 (0) |
| ＞10 (3.0) | Up to 1.250 (31.8), incl. | 3/16 (4.8) | 0 (0) |
Advantages of ASTM B444 Inconel 625 for Industrial Steam Boilers：
High-temperature creep resistance ASTM B444 Inconel 625 retains stable creep-rupture strength up to 650°C. It resists permanent deformation under sustained pressure and thermal load inside boiler steam circuits.
Resistance to steam-side corrosion & pitting Its high Cr, Mo and Nb content delivers strong pitting and crevice corrosion resistance. It withstands chloride, alkaline boiler water and condensate impurities common in steam systems.
Thermal fatigue and cyclic oxidation stability Single-phase austenitic structure avoids phase transformation under repeated heating and cooling. It resists cracking from frequent boiler start‑stop thermal cycling.
Weldability for boiler fabrication It can be welded with matching nickel alloy filler without susceptibility to intergranular corrosion. Welded joints keep comparable corrosion and mechanical performance.
Long service life under mixed aggressive media It performs reliably in boilers with flue gas condensation, sulfur-containing vapor and mixed oxidizing-reducing atmosphere, cutting frequent tube replacement and downtime.
Other Typical Industrial Applications of Alloy 625：
Oil & Gas Downhole and Subsea Systems Alloy 625 seamless tubes, bars and forgings are widely used for subsea jumpers, downhole production tubing, wellhead components and riser fittings. It resists chloride pitting, crevice corrosion and stress corrosion cracking in high-pressure brine, sour gas (H₂S) environments, with stable performance at 200–450 ℃.
Chemical & Petrochemical Processing Equipment It serves for reactor internals, distillation column trays, heat exchangers, transfer piping and evaporator components. It handles mixed corrosive media including nitric, phosphoric and organic acids, as well as alkaline solutions, suitable for continuous cyclic chemical production conditions.
Aerospace & Aviation Industry Alloy 625 is applied in aircraft engine exhaust ducts, thrust reverser parts, combustion liners, turbine seals and airframe hydraulic tubing. Its high tensile strength, fatigue resistance and oxidation tolerance support long-term service under 540 ℃ cyclic high-temperature air flow.
Flue Gas Desulfurization (FGD) & Waste Incineration Plants Used for scrubber internal piping, dampers, spray nozzles and heat recovery coils. It withstands mixed corrosion from HCl, HF, sulfur dioxide and wet acid flue gas, solving rapid thinning failure of carbon steel and 316L under fluctuating flue gas temperature.
Marine & Offshore Engineering It is selected for seawater heat exchanger tubes, seawater pipeline fittings, ship exhaust piping and splash zone fasteners. Excellent resistance to seawater chloride corrosion and biofouling-related crevice corrosion reduces frequent replacement in offshore splash and immersion zones.
Why Select GNEE STEEL as Your Nickel Alloy Supplier?
Stock Availability
We maintain ready stock of mainstream nickel alloy grades, support small-batch and sample orders, and arrange prompt shipment for urgent project schedules.
Inspection & Testing
We strictly carry out hydrostatic test and non-destructive electric test as specified in ASTM B444, with full test records and heat number traceability for every batch.
Packaging & Shipment
We adopt seaworthy export packaging with moisture-proof protection and reinforced fumigation-free crates, securing alloy products for long overseas sea transportation.
Machining Service
We provide one-stop precision processing including cut-to-length, beveling, bending and surface finishing, to deliver semi-finished parts ready for your assembly.
Get MTC for Inconel 625 SMLS tube
FAQ:
What is the material equivalent of UNS N06625?
UNS N06625 is primarily known by its brand name INCONEL alloy 625 and has several international material equivalents across different standards.
What are the key differences between Inconel 625 and Inconel 718?
Inconel 625 and Inconel 718 are high-performance nickel-based superalloys, but they differ fundamentally in how they gain strength. Inconel 625 is a solid-solution-strengthened alloy built for superior corrosion resistance and high-temperature oxidation limits (up to 2,000°F). Inconel 718 is a precipitation-hardened (age-hardened) alloy engineered for maximum mechanical strength and load-bearing toughness.
What is the core difference between Inconel 625 and P265GH seamless tube for steam boiler service?
P265GH is carbon steel for low-to-medium pressure steam boilers, max operating temp ~450°C, low cost. Inconel 625 (UNS N06625) is nickel-chromium-molybdenum alloy, resistant to high temperature, oxidation and corrosion, suitable for high-temperature, corrosive steam conditions with far higher material cost.
What pressure and temperature limits apply to Inconel 625 boiler seamless tubes?
Inconel 625 maintains high tensile and creep strength up to 980°C. It can serve high-pressure steam boilers with corrosive media, resisting pitting, crevice corrosion and stress corrosion cracking from chlorides.
