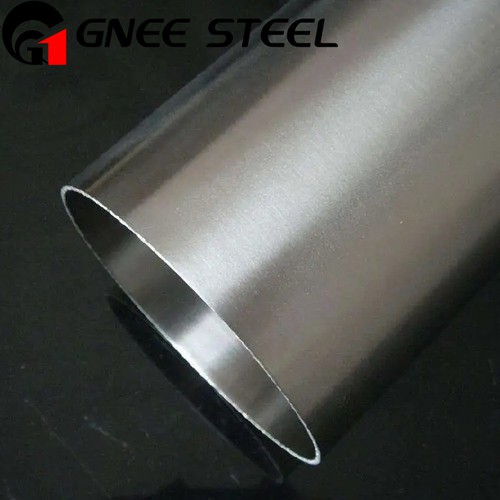

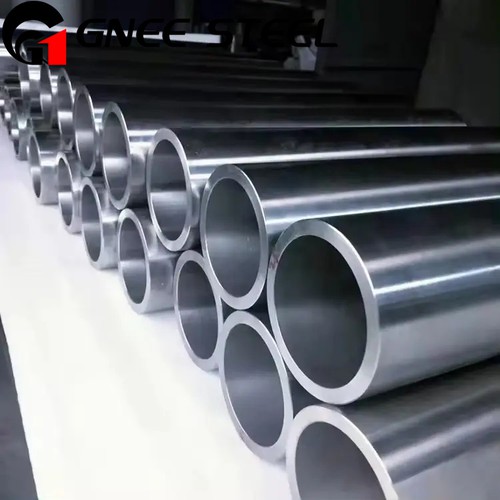

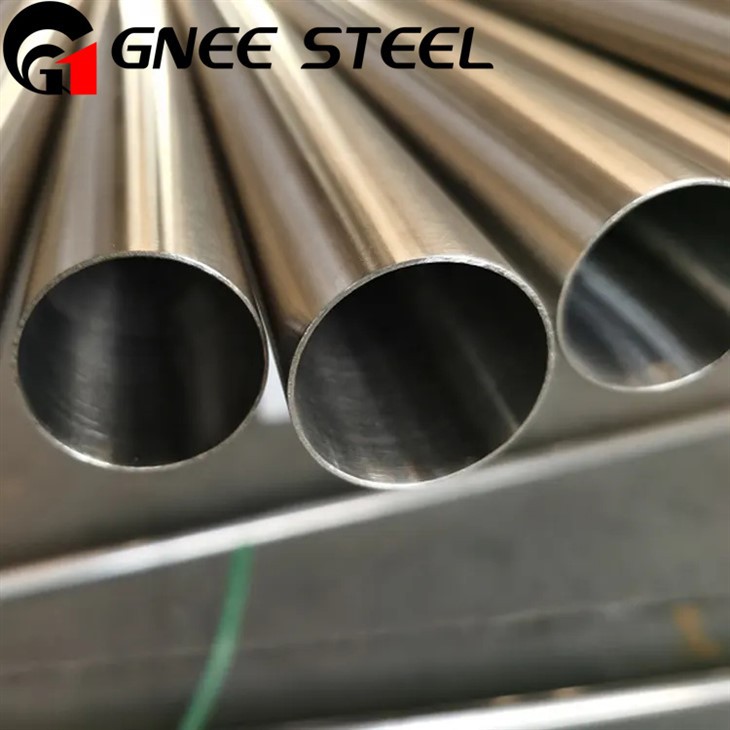

Large Diameter Inconel 600 Alloy Tube
Diameter: 3-600 mm
Wall Thickness: 0.5-30 mm
Length: 0.5-12 m
Inconel 600 Alloy Pipe Suppliers Offer Dimensions Complying with ASME B36.10/ASME B36.19 Standards
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
GNEE Large diameter Inconel 600 tube introduce
Large diameter Inconel 600 metal Alloy tube
Gnee Steel is a leading manufacturer and supplier of Inconel 600 Tubes in China with top quality products, serving the Indian and global markets. These tubes are available in various shapes, wall thicknesses and sizes for a wide range of applications. Inconel belongs to the family of austenitic nickel-chromium high alloys and includes types such as 600, 601 and 625.
600 alloy tubes have excellent heat and corrosion resistance, making them ideal for use in demanding environmental conditions. At high temperatures, Inconel alloy forms a thick and stable oxide layer, providing strong surface protection. Nickel 600 seamless tubes offer high temperature resistance, corrosion resistance, high mechanical strength and high surface finish.
600 alloy welded tubes are made from high-grade Inconel material and undergo a rigorous welding process to ensure their durability and reliability. These tubes are widely used in industries such as chemical, food processing, thermal processing, pollution control, power generation, etc. Nickel 600 cold drawn tubes are produced at room temperature and provide excellent quality through the drawing process.
Our Inconel 600 pipes feature high tensile strength, high ductility, corrosion resistance, superior quality, and excellent surface finish. We offer standard and custom sizes and carry a large inventory of various shapes including round, rectangular, square, hexagonal, oval, hollow, etc. Contact us today to learn about our wide range of products and specifications. We guarantee to provide you with the best prices and first-class quality.
GNEE Large diameter Inconel 600 metal tube Specification
Inconel 600 Tube Standard And Specification
| ASTM B163 Alloy 600 Tubing Standards | ASTM B163/ ASME SB163, ASTM B516/ ASME SB516 |
|---|---|
| ASTM B163 Alloy 600 Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| ASTM B163 Alloy 600 Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASTM B516 Inconel 600 Tubing Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Inconel WERKSTOFF NR. 2.4816 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Inconel UNS N06600 Tubing Length | Single Random, Double Random, Standard & Cut length Tube |
| Inconel WERKSTOFF NR. 2.4816 Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | 'U' bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| Types of 600 Alloy Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
| 600 Alloy Tube End | Plain End, Beveled End, Treaded Tube |
| Marking | All ASTM B163 Inconel 600 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer's request.) |
| Application & uses of Inconel 600 Tube | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Inconel Alloy 600 Chemical Composition
| Ni | Cr | Fe | Mn | Si | C | S | Cu |
| 72.0 | 14.0-17.0 | 6.0 – 10.0 | 1.0 max | 0.50 max | 0.15 max | 0.015 max | 0.50 max |
Inconel Alloy 600 Mechanical Properties
| Density, g/c㎡ | 8.47 |
| Melting range, ℃ | 1354-1413 |
| Tensile strength, min, Mpa | 550 |
| Yield strength, 0.2% offset, min, Mpa | 240 |
| Elongation, % | 30 |
| Hardness, Rockwell | 65-85B |
GNEE Large diameter 600 tube Schedule
Dimensions of UNS N06625 Tubes
| Inconel Grade | Type | Dimension |
|---|---|---|
| INCONEL 600 | welded and bright solution annealed | 60.33 x 2.77 mm (2"nb sch10s) |
| INCONEL 625 | cold drawn, seamless, annealed, ground | 60.33 x 3.91 mm (2"nb Sch40s) |
| ALLOY 600 | seamless and annealed | 4.50 x 0.75 mm |
| ALLOY 625 | seamless, pickled, annealed | 33.40 x 3.38 mm (1"nb sch40s) |
GNEE Group Factory Environment
GNEE Group Large diameter 600 metal tube Factory Environment
GNEE Group Packaging
GNEE Group Large diameter steel 600 Alloy tube Packaging
GNEE Group Testing
GNEE Group Large diameter Inconel 600 steel tube Testing
FAQ
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
