GNEE Nickel 600 Boiler Tube introduce

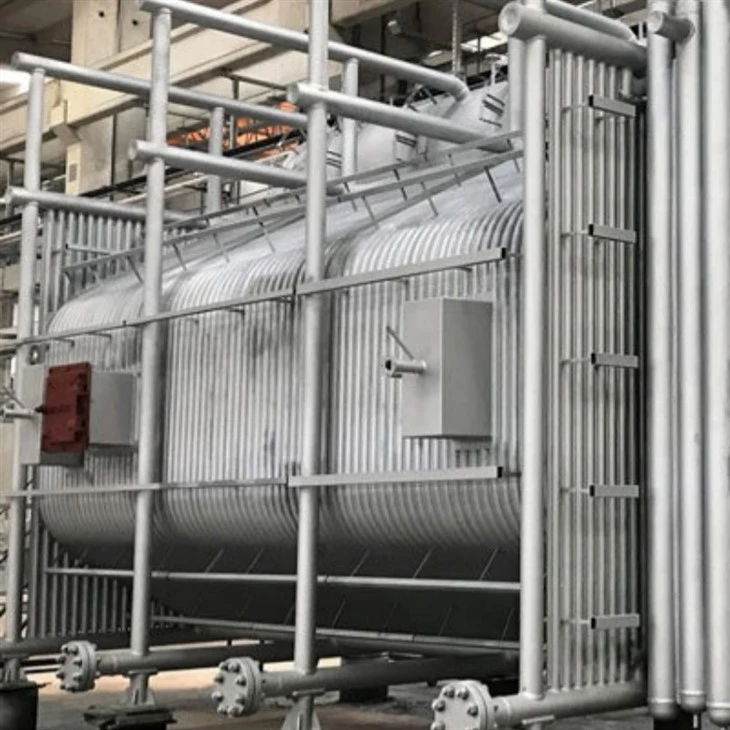

Inconel 600 Boiler Tube
GNEE Inconel 600 Boiler Tube introduce
Inconel 600 is a nickel-chromium alloy known for its excellent resistance to high temperatures, corrosion, and oxidation. It is commonly used in boiler tubes due to its superior properties, making it ideal for such applications. The alloy's high nickel content gives it exceptional strength and durability to withstand the extreme conditions found in boiler systems.
Inconel 600 boiler tubes offer excellent resistance to stress corrosion cracking and pitting, making them highly reliable in water and steam environments. Additionally, its thermal stability, resistance to scaling, and resistance to carburization make it ideal for boiler tube applications, ensuring extended service life and efficient heat transfer. This combination of properties makes Inconel 600 a popular choice in the industry, providing reliability, long life, and high performance in demanding boiler environments.
GNEE Alloy Inconel 600 Boiler Tube Specification
Specification Of Inconel 600 Boiler Tube
| Boiler Tube Standard | ASTM B163, B516 / ASME SB163, SA516 |
| Seamless Boiler Tube Sizes | 1 / 2" NB - 16" NB |
| Welded Boiler Tube Sizes | 1 / 2" NB - 24" NB |
| Boiler Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size Steel Boiler Tubes available Ex-stock |
| Boiler Tube Manufacturing Process | Seamless / Welded / ERW |
| Inconel Boiler Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Boiler Tube Length | Single Random, Double Random, Standard & Cut length |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Inconel Boiler Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
Chemical Composition Of Inconel 600 Boiler Tube
| Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
| 600 | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
| max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – | |
Mechanical Properties Of Inconel Alloy 600 Boiler Tubing
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 600 Boiler Tube Sizes in MM
| BWG | BWG | BWG | BWG | BWG | BWG | BWG | BWG | ||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| WT mm | WT mm | WT mm | WT mm |
WT mm | WT mm | WT mm | WT mm |
||
| Outside Diameter | Outside Diameter | 0.508 | 0.711 | 0.889 | 1.245 | 1.651 | 2.108 | 2.769 | 3.404 |
| mm | inch | kgs/m | kgs/m | kgs/m | kgs/m | kgs/m | kgs/m | kgs/m | |
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 |
Gnee Steel Inconel 600 Boiler Tube Application
Chemical Processing:
Resistant to various acids, alkalis and other corrosive substances, it can be used in reactors, heat exchangers and process pipelines.
Heat Treatment:
Its high temperature resistance makes it suitable for furnaces, heat exchangers and other heating equipment.
Nuclear Power:
Due to its excellent corrosion resistance and non-magnetic properties, it can be used in various parts of nuclear reactors.
Aerospace:
Due to its high strength and good durability, it can be used in high temperature parts such as gas turbine engines.
GNEE Group Nickel Based alloy 600 Boiler Tube Packaging
GNEE Group metal Inconel 600 Boiler Tube Packaging
In order to better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
GNEE Group Testing And Qualification Certificate
GNEE Group Inconel 600 Boiler Tube Testing And Qualification Certificate
Testing & Inspection of Inconel 600 Boiler Tubes
Testing (Destructive, Non Destructive)
| Positive Material Identification – PMI Testing | Hydrostatic Test |
| Chemical Analysis – Spectro Analysis | Hydrogen-Induced Cracking (HIC) Test |
| Mechanical Testing Such as Tensile, Elongation, Reduction of Area | Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177 |
| Micro Test | Radiography Test |
| Macro Test | Dye Penetrant Test (DP Test) |
| Hardness Test | Ultra Sonic Test (UT) |
| Pitting Resistance Test | Eddy Current Testing |
| Intergranular Corrosion (IGC) Test | Impact Test |
| Flaring Test | Bend Test |
| Flattening Test |
FAQ
Q: What size is Inconel 600 tube?
A: The Inconel 600 Tube ranges from 4mm to 219mm for seamless pipes, 5 to 1219.2mm for welded and EFW pipes with the wall thicknesses ranging from 0.5mm to 20mm.
Q: What is the number for Inconel 600?
A: Inconel alloy 600 is designated as UNS N06600 and Werkstoff number 2.4816.
Q: What is Inconel 600 used for?
A: INCONEL 600 alloy is used in the electronics field to manufacture parts such as cathode ray tube brackets, thyratron grids, tube supports and springs. This alloy is a standard manufacturing material for nuclear reactors.
