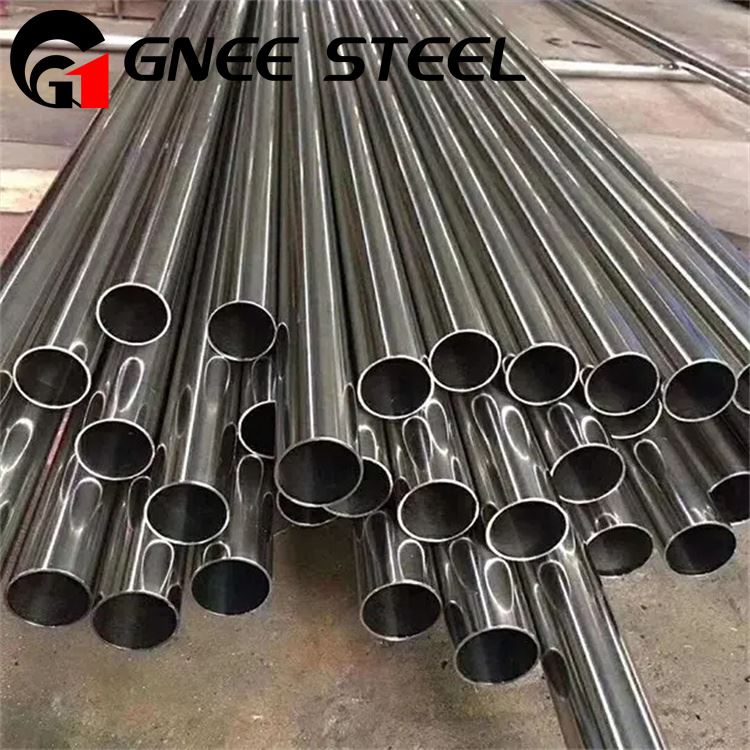

Cold Drawn Inconel 718 Alloy Seamless Pipe

Cold drawn inconel 718 ss pipe

Inconel 718 pipes are used in a wide range of applications, from conveying water and chemicals to delivering oil or gas. Inconel 718 oval tubes are also commonly used in structural support and piping systems for large ships, as well as warships, aircraft carriers, submarines, tanks, and other military vehicles. In addition, these pipes are able to withstand extreme temperatures from cryogenics to 1000°F (538°C). This makes them ideal for applications where temperature fluctuations are frequent or where other materials cannot withstand high or low temperatures.
Inconel 718 is a nickel-chromium alloy that is widely used in high-temperature applications. Inconel 718 pipes are pipes made from this material and are known for their high strength, excellent corrosion resistance, and good weldability.
A better surface finish can be achieved if Inconel 718 cold rolled coils are processed in the age-hardened condition. However, tool life can be extended if Asme Sb163 Uns N07718 seamless pipes are produced in the annealed condition. Astm B163 Alloy 718 Seamless Tubes are used in condensers and heat exchangers. The outer diameter, average wall thickness and minimum wall thickness of Alloy 718 heat exchanger tubes depend on the specific requirements.
Gnee Steel offers you these pipes at very competitive prices compared to other manufacturers.

Inconel 718 Pipe Specification:

Size	15 NB to 150 NB IN
Type	Seamless / ERW / Welded / Fabricated / LSAW Pipes
Standards	ASTM B444, ASTM B751, ASTM B829, ASTM B775, ASTM B705, ASTM B704, AMS 5581, ISO 6207, BS 3074NA21, DIN 17751, UNS N07718 / Werkstoff Nr. 2.4668
End	Plain End, Beveled End, Treaded.
Length	Single Random, Double Random & Cut Length.
Form	Round, Square, Rectangular, Hydraulic Etc.

Inconel 718 Pipes & Tubes Chemical Composition :

Inconel	%	Ni	Cr	Fe	Mo	Nb	Co	C	Mn	Si	S	Cu	Al	Ti
718	Min.	50	17	balance	2.8	4.75							0.2	0.7
	Max.	55	21		3.3	5.5	1	0.08	0.35	0.35	0.01	0.3	0.8	1.15

Inconel Alloy 718 Pipe Schedule Chart

3 1/2" IPS( 4.000"O. D.)	1/8" IPS(.405"O. D.)
SCH 40, 10, 160, 80, XXH	SCH 40, 80
4" IPS(4.500"O. D.)	1/4" IPS(.540"O. D.)
SCH 40, 10, 160, 80, XXH	SCH 40, 10, 80
5" IPS( 5.563"O. D.)	3/8" IPS(.675"O. D.)
SCH 40, 10, 160, 80, XXH	SCH 40, 10, 80
6" IPS(6.625"O. D.)	1/2" IPS(.840"O. D.)
SCH 10, 5, 80, 40, 160, 120 XXH	SCH 5, 40, 10, 160, 80, XXH
8 " IPS(8.625"O. D.)	3/4" IPS(1.050"O. D.)
SCH 10, 5, 80, 40, 160, 120 XXH	SCH 40, 10, 160, 80, XXH
10" IPS(10.750"O. D.)	1" IPS:(1.315′O. D.)
SCH 10, 20, TRUE 80(.500), 40, 80 (.500),	SCH 5, 40, 10, 160, 80, XXH
12" IPS(12.750"O. D.)	1-1/4" IPS(1.660"O. D.)
SCH 10, 20, TRUE40(.406), 40(.375), SCH80(.500)	SCH 40, 10, 160, 80, XXH
14" IPS(14.000"O. D.)	1-1/2" IPS(1.900"O. D.)
SCH10(.188), SCH40(.375)	SCH 40, 10, 160, 80, XXH
16" IPS(16.000"O. D.)	2" IPS(2.375"O. D.)
SCH10(.188), SCH40(.375)	SCH 40, 10, 160, 80, XXH
18" IPS (18.000"O. D.)	2 1/2" IPS(2.875"O. D.)
SCH-40 (.375)	SCH 40, 10, 160, 80, XXH
	3" IPS( 3.500"O. D.)
	SCH 5, 40, 10, 160, 80, XXH

GNEE Group Cold drawn inconel 718 alloy ss pipe Factory Environment

GNEE Group Cold drawn inconel 718 metal seamless pipe Packaging

GNEE Group Cold drawn inconel 718 seamless pipe Testing

Q: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.
Q: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
