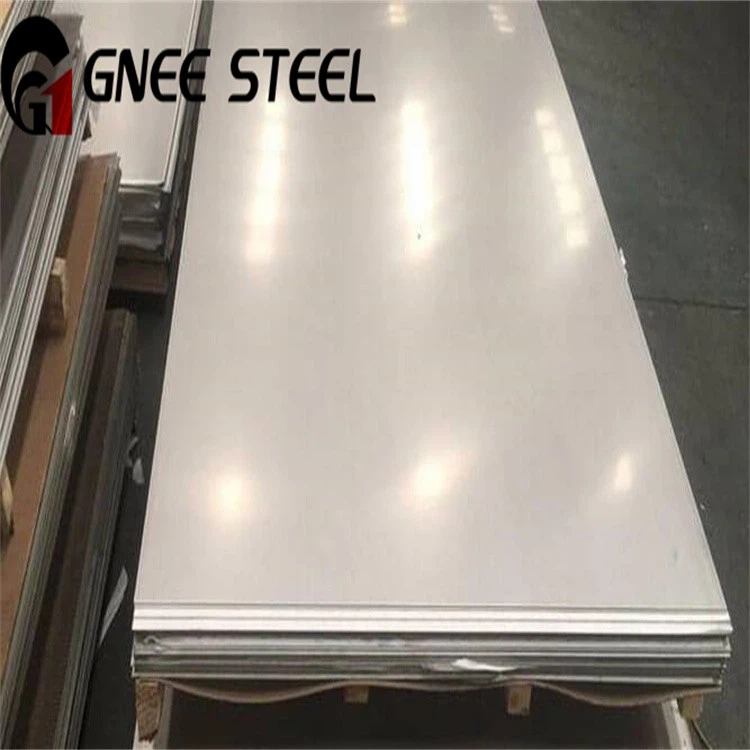

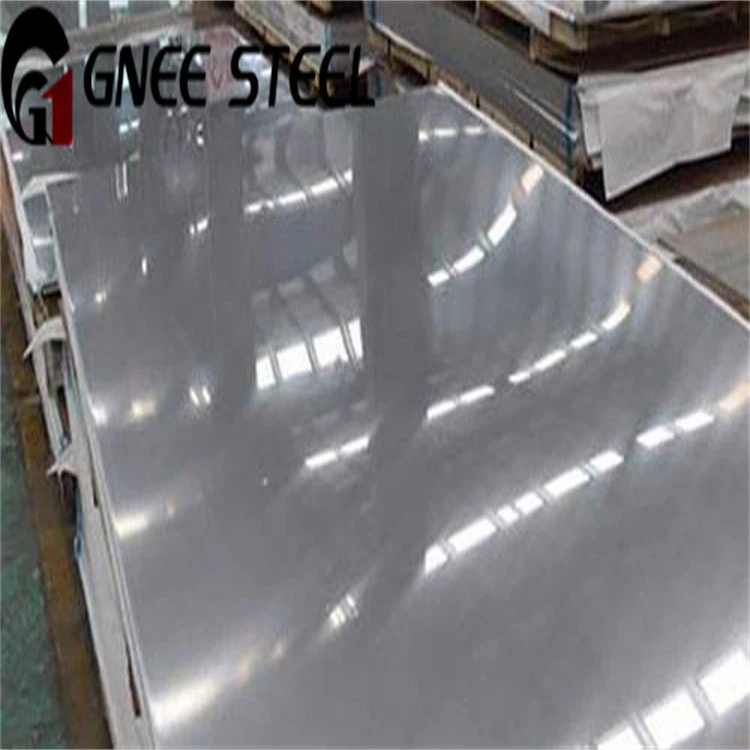

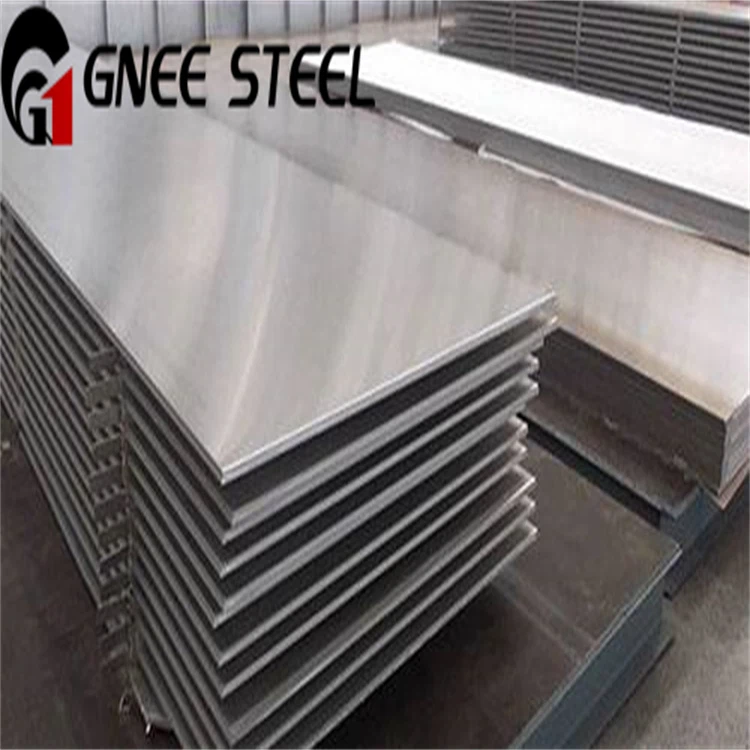

Incoloy 25-6HN Plate
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Incoloy 25-6HN hot-rolled plates are generally nickel alloy sheets & plates products with a thickness more than 3mm - 5mm. Incoloy 25-6HN plate inherits the superior corrosion resistance, high temperature resistance and fatigue resistance of Incoloy 25-6HN. In terms of the manufacturing process, Incoloy 25-6HN plate can be flattened and cut from coil, it also can be directly hot rolled from Incoloy 25-6HN billet. Compared with sheets, Incoloy 25-6HN plates have a whiter finish.
Physical Properties
| Density | g/cm3 | 8.02 | |
|---|---|---|---|
| lb/in.3 | 0.29 | ||
| Melting Range | °F | 2470 - 2560 | |
| °C | 1354 - 1404 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) |
Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | ||
| ≤ 3/16 in. (4.8 mm) thick | 690 | 310 | 30 | ... | 100HRB max |
| > 3/16 in. (4.8 mm) thick | 655 | 310 | 30 | ... | 240HBN max |
*Mechanical Properties According to ASTM B688
