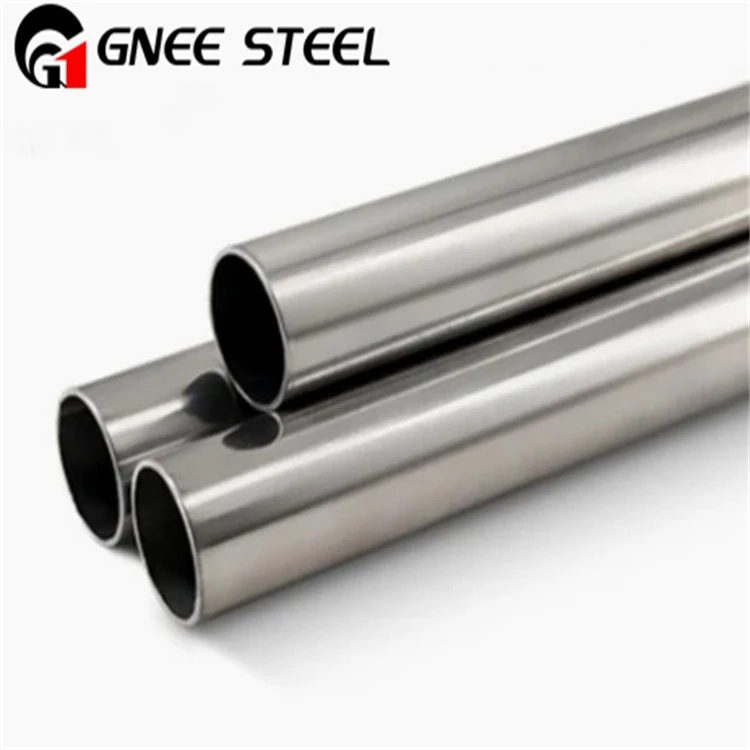

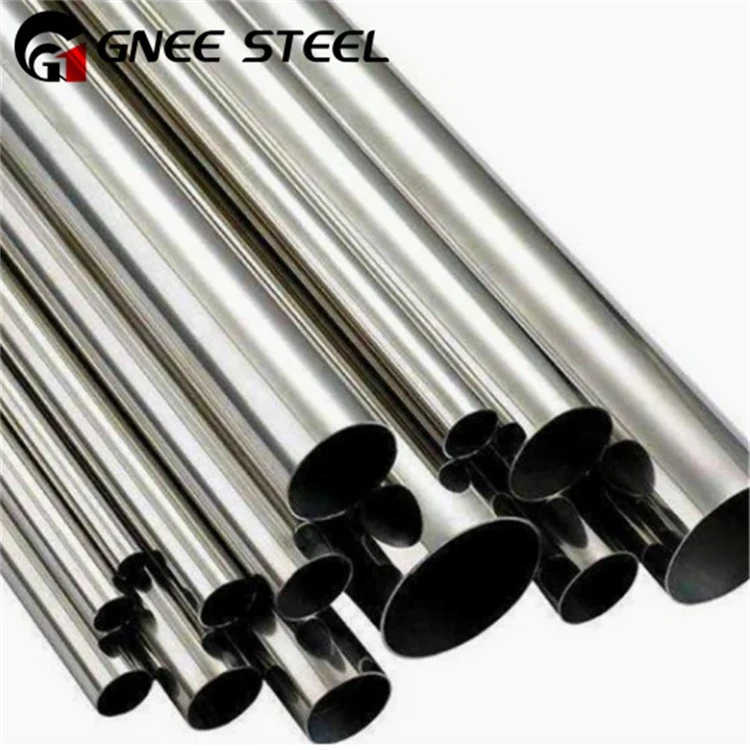

Spot Goods Nr. 1.4958 Alloy Tube For Heat Treatment Equipment Incoloy 800ht Pipe
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Features
▪ Resistance to prolonged exposure to elevated temperatures
▪ Excellent resistance to oxidation, sulfidation, and carburization
▪ Added Carbon and annealing treatment allows for higher creep and rupture properties above 600ºC
▪ Resistant to high temperature corrosion
▪ Readily machined by standard methods
▪ Best joined/welded using products for high temperature situations
▪ Resistance to aqueous corrosion at moderate temperatures
Incoloy 800ht Application
▪ Chemical and Petrochemical Processing-process equipment for the production of ethylene, ethylene dichloride, acetic anhydride, ketene and oxy-alcohol
▪ Petroleum Refining-steam/hydrocarbon reformers and hydrodealkylation units
▪ Power Generation-steam super-heaters and high temperature heat exchangers in gas-cooled nuclear reactors, heat exchangers and piping systems in coal-fired power plants
▪ Thermal Processing Fixtures-radiant tubes, muffles, retorts and fixtures for heat-treating furnaces
Incoloy 800ht Key Features:
Corrosion Resistance: The addition of nickel & chromium to 800HT ensures excellent carburization, oxidation, & sulfidation.
Organic Media Resistance: This alloy also flaunts great resistance to widely found organic media components such as acetic, formic, as well as propionic acids.
High Heat Fabrication: Alloy 800HT is known to fabricate easily in high heat between 1200°F & 1600°F. However, anything below this leads to improper fabrication.
High Resistance to Creep Rupture: Incoloy 800HT has better creep-rupture resistance strength as compared to Alloy 800 given the close control for Al, Ti, & C.
Incoloy 800ht Specifications
| Trademark | GB | GOST | ASTM | UNS | DIN | W.Nr. | NF | BS | JIS | SS |
| Incoloy 800HT | NS1102 NS112 |
- | Incoloy 800HT | N08811 | X10NiCrAlTi32-20 | 1.4959 | - | NA15H | - | - |
Incoloy 800ht Chemical Composition
| Alloy | C | Si | Mn | P | S | Cr | Ni | Al+Ti | Ti | Fe |
| Incoloy 800HT | 0.06-0.10 | ≤0.10 | ≤3.00 | ≤0.03 | ≤0.02 | 19.0-23.0 | 30.0-35.0 | 0.25-1.20 | 0.15-0.60 | ≥39.5 |
Incoloy 800ht Mechanical Properties
| Density, g/cm3 | Melting Point, ºC | Tensile Strength, MPa | Yield Strength, MPa | ELongation, % | Hardness, HB |
| 8.00 | 1357-1375 | 531 | 200 | 52 | - |
Incoloy 800ht Forms And Standards
| Rod, Bar, Wire and Forgings | ASTM B408/ASME SB408, ASTM B564/ASME SB564, ISO 9723/9724/9725 |
| Plate, Sheet and Strip | ASTM A240/A480/B409/B906/ASME SA240/SA480/SB409/SB906, ISO 6208 |
| Pipe and Tube | ASTM B163/ASME SB163, ASTM B407/B829/ASME SB407/SB829, ASTM B514/B775/ASME SB514/SB775, ASTM B515/B751/ASME SB515/SB751, ISO 6207 |
| Welding Product | - |
| Others | ASTM B366/ASME SB366(Fittings) |
Available Sizes And Specifications
| Incoloy 800HT available sizes and specifications | |
| Grade | Incoloy 800HT |
| Nickel plate | Thickness: 0.3mm - 150.0mm Width: 1000mm - 3000mm |
| Nickel strip/ nickel foil | Thickness: 0.02mm - 16.0mm Width: 5mm - 3000mm |
| Nickel coil | Thickness: 0.3mm - 16.0mm Width: 1000mm - 3000mm |
| Nickel pipe | Outside diameter: 6mm - 1219mm Thickness: 0.5mm - 100mm |
| Nickel Capillary Pipe | Outside diameter: 0.5mm - 6.0mm Thickness: 0.05mm - 2.0mm |
| Nickel bar | Diameter: Ф4mm - Ф600mm |
| Nickel wire rod | Diameter:Ф0.01mm - Ф6mm |
