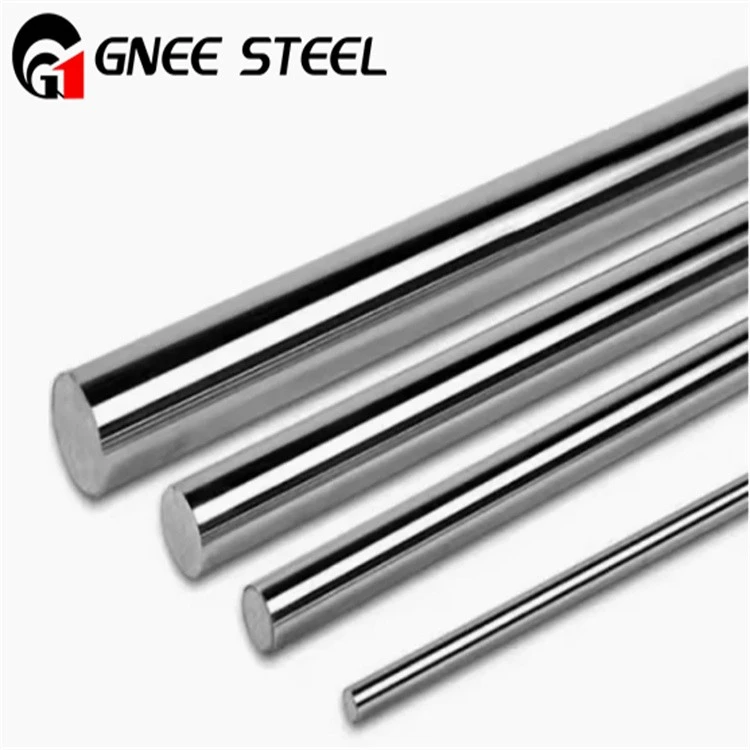

Monel R-405 Round Bar
Monel alloy R-405 Round Bar
Monel R-405 Bar

Monel R-405 Round Bar

Name: China Monel R-405 Round Bar Suppliers - Wholesale Monel R-405 Round Bar Made in China - Super Alloy
Brand: GNEE
SKU: 249109233

Monel R-405 Round Bar is an easy-to-machine nickel-copper alloy. Its chemical composition is basically the same as Monel 400. But it improves the machining properties of the alloy.

Send Inquiry

Chat Now

As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.

Send E-mail: ss@gneesteel.com
Tel: +8615824687445

Product Introduction

Monel R-405 Round Bar is a nickel-copper alloy designed for superior corrosion resistance and enhanced machinability. It is a variant of Monel 400, with the addition of sulfur to improve its machinability while maintaining excellent performance in harsh environments.

Monel R-405 Round Bar Chemical Composition, %

Ni	Cu	Fe	S	Mn	C	Si
63.0 min	28.0-34.0	2.5 max	.025-.060	2.0 max	.3 max	.5 max

Monel R-405 Round Bars Mechanical Properties

Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness Brinell (3000 kg)	Hardness Rockwell B
Annealed	70-85	25-40	50-35	110-140	60-76
Hot-Finished	75-90	35-60	45-30	130-170	72-86
Cold-Drawn, As-Drawn	85-115	50-105	35-15	160-245	85-23C

Monel R-405 Round Bars is available in various dimensions and surface finishes, providing flexibility for a range of applications that require both machinability and high-performance characteristics.
