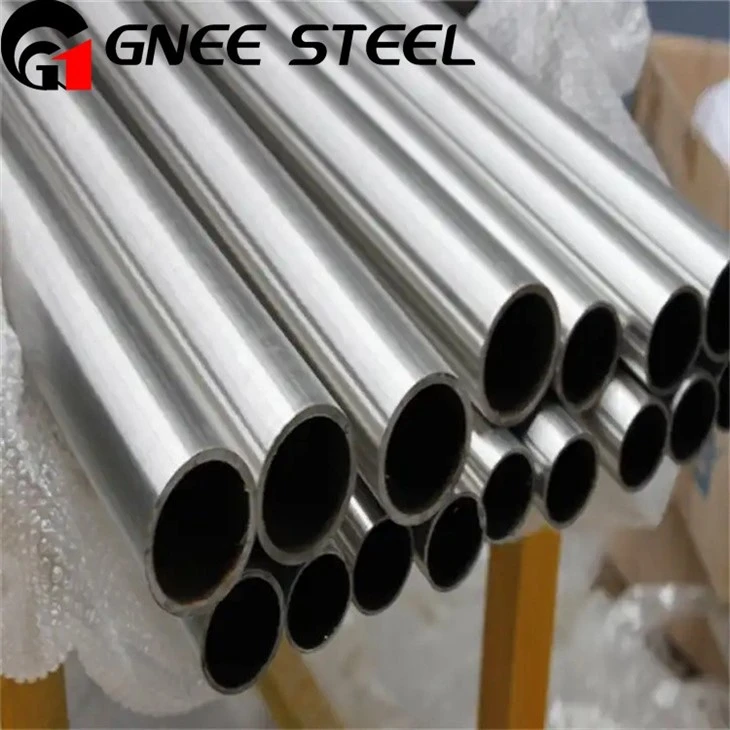

Inconel UNS N06625 Straight Pipe
Dimensions: 1/2" OD - 12" OD
OD: 3.00mm - 219.10mm
Thickness: 0.40mm - 12.70mm
Lengths: Single, Double, Random and Cut Lengths
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
GNEE UNS N06625 Straight Pipe introduce
Inconel N06625 Straight Pipe
GNEE Inconel UNS N06625 Straight Pipe introduce
Inconel 625 straight pipe is a straight pipe made of high-performance nickel-chromium-based high-temperature alloy. With its unparalleled comprehensive performance, it has become the ultimate solution for harsh working conditions. Its core advantages are excellent corrosion resistance (can resist seawater, strong acid, mixed acid, halogen medium and high-temperature oxidation/chlorination environment, and has strong resistance to pitting, crevice corrosion and stress corrosion cracking), excellent high-temperature performance (maintaining high strength, oxidation resistance and excellent creep resistance at up to 1000°C) and excellent mechanical properties (high strength and toughness, elongation ≥30%). The alloy contains key elements of nickel (matrix), chromium (oxidation resistance), molybdenum (reduction corrosion resistance) and niobium (high temperature strengthening), and supports complex engineering manufacturing through good weldability and formability. It is often delivered in a solution annealed state with pickling or bright surface.
GNEE Alloy Inconel UNS N06625 Straight Pipe Specification
Specification Chart of Inconel 625 Straight Tube
|
Standard |
ASTM, AISI, GB, JIS, customers' requests available |
|
Size |
Round Tube: OD: 16-119mm or customized |
|
Thickness |
0.25mm-3.0mm |
|
Length |
6m or according to customers' request |
|
Sample |
Free sample is available, but freight should be paid by you |
|
Tolerance |
Outer diameter: ±0.2mm |
|
Thickness: ±0.05mm |
|
|
Length: ±0.5mm |
|
|
Ends |
In plain end or bevelled ends or as your requirements |
|
Standard |
ASTM, AISI, GB, JIS, customers' requests available |
|
Size |
Round Tube: OD: 16-119mm or customized |
|
Thickness |
0.25mm-3.0mm |
|
Length |
6m or according to customers' request |
|
Sample |
Free sample is available, but freight should be paid by you |
|
Tolerance |
Outer diameter: ±0.2mm |
|
Thickness: ±0.05mm |
|
|
Length: ±0.5mm |
|
|
Ends |
In plain end or bevelled ends or as your requirements |
Composition Chart of Inconel 625 DIN 2.4856 Tube
| Grade | C | Mn | Si | Fe | S | Cr2 | Al-Ti | Ni | |
| 625 | min. | – | – | – | – | – | 20.0 | – | 58.0 |
| max. | 0.10 | 0.50 | 0.50 | 5.0 | 0.015 | 23.0 | 0.40 | – | |
Gnee Steel Inconel 625 Tube Sizes
| Wall Thickness | inconel 625 Tube Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Gnee Steel Inconel UNS N06625 Straight Pipe Application
Chemical Processing:
Resistant to various acids, alkalis and other corrosive substances, it can be used in reactors, heat exchangers and process pipelines.
Heat Treatment:
Its high temperature resistance makes it suitable for furnaces, heat exchangers and other heating equipment.
Nuclear Power:
Due to its excellent corrosion resistance and non-magnetic properties, it can be used in various parts of nuclear reactors.
Aerospace:
Due to its high strength and good durability, it can be used in high temperature parts such as gas turbine engines.
GNEE Group N06625 Straight Pipe Packaging
GNEE Group metal Inconel UNS N06625 Straight Pipe Packaging
In order to better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
GNEE Group Testing And Qualification Certificate
GNEE Group Inconel 625 Straight Pipe Testing And Qualification Certificate
FAQ
Q: What other forms of Inconel 625 does Gnee Steel offer?
Q:What grade is Inconel 625 pipe?
A:Inconel 625 pipe is usually divided into two grades: Grade 1 and Grade 2. ASTM B444 UNS N06625 Grade 1 pipe requires annealing, while Grade 2 pipe requires solution annealing.
