Inconel 600 U Bend Pipe
Material Selection
Choose heat-resistant materials such as Inconel or alloys.
Tube Forming
Cold drawing or hot extrusion to form the initial tube shape.
Bending
Use precision machinery to bend the tube into a U shape.
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
GNEE Nickel 600 U Bend Pipe introduce

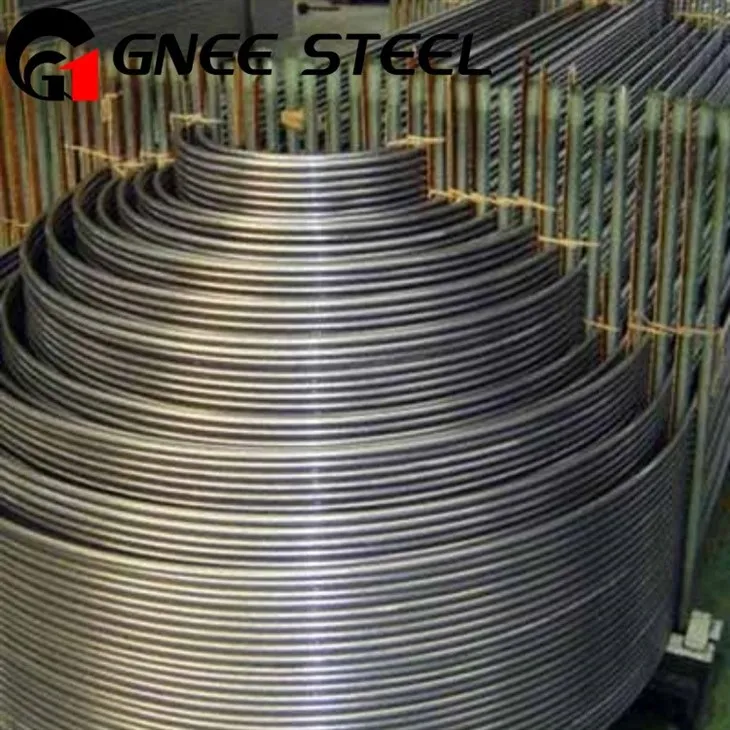

Inconel 600 U Bend Pipe
GNEE Inconel 600 U Bend Pipe introduce
Inconel 600 U-Bend is a special pipe made from Inconel 600. Inconel 600 is a nickel-chromium alloy known for its excellent resistance to high temperatures and corrosion. This unique U-shaped design allows the pipe to change direction smoothly, suitable for a variety of industrial applications. Inconel 600 has excellent properties, including high tensile strength, excellent resistance to oxidation and resistance to chloride ion stress corrosion cracking, making it ideal for industries operating in harsh environments. It is commonly used in petrochemical, oil and gas, power generation and chemical processing industries, which are exposed to extreme temperatures, corrosive chemicals and high pressures. The reliable and durable performance of Inconel 600 U-Bend ensures the safe and efficient transfer of fluids and gases in critical processes in these industries.
GNEE Alloy Inconel 600 U Bend Pipe Specification
Specification Of 600 Inconel U Bend Pipe
| Size | 6.35 Mm OD to 273 Mm OD |
| Outside Diameter | 9.52 mm O.D to 50.80 mm O.D |
| Thickness | 0.7 mm to 3.68 mm |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Type | Welded, Seamless, ERW, Fabricated |
| End | Plain End, Beveled End, Treaded |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
Chemical Composition Of Inconel 600 U Bend Pipe
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Mechanical Properties Of 600 Inconel U Bend Tubing
| Grade | Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Gnee Steel Inconel 600 U Bend Pipe Application
Chemical Processing:
Resistant to various acids, alkalis and other corrosive substances, it can be used in reactors, heat exchangers and process pipelines.
Heat Treatment:
Its high temperature resistance makes it suitable for furnaces, heat exchangers and other heating equipment.
Nuclear Power:
Due to its excellent corrosion resistance and non-magnetic properties, it can be used in various parts of nuclear reactors.
Aerospace:
Due to its high strength and good durability, it can be used in high temperature parts such as gas turbine engines.
GNEE Group Nickel Based alloy 600 U Bend Pipe Packaging
GNEE Group metal Inconel 600 U Bend Pipe Packaging
In order to better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
GNEE Group Testing And Qualification Certificate
GNEE Group Inconel 600 U Bend Pipe Testing And Qualification Certificate
FAQ
Q: What size is Inconel 600 tube?
A: The Inconel 600 Tube ranges from 4mm to 219mm for seamless pipes, 5 to 1219.2mm for welded and EFW pipes with the wall thicknesses ranging from 0.5mm to 20mm.
Q: What is the number for Inconel 600?
A: Inconel alloy 600 is designated as UNS N06600 and Werkstoff number 2.4816.
Q: What is Inconel 600 used for?
A: INCONEL 600 alloy is used in the electronics field to manufacture parts such as cathode ray tube brackets, thyratron grids, tube supports and springs. This alloy is a standard manufacturing material for nuclear reactors.
