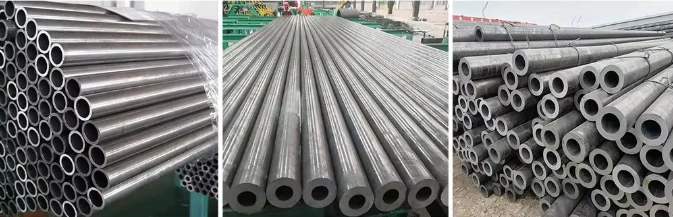

UNS N06030 Hastelloy G30 Pipe
As a leading supplier and manufacturer in China, GNEE Steel provides cost-effective nickel-based alloy products.
- Send E-mail: ss@gneesteel.com
- Tel: +8615824687445
Hastelloy G30 Pipe is corrosion resistant alloy with excellent corrosion resistance to oxidizing environments. Hastelloy G30 Pipe has been very successful as phosphoric acid heat exchanger tubing and for other process components in the fertilizer industry.The high chromium content of both of these Hastelloy G30 Pipe make them the premier choices for strong oxidizing solutions and mixed acid pickling services.
Hastelloy G30 Tube Specifications
| Size | 15 NB to 150 NB IN |
|---|---|
| Type | Seamless / ERW / Welded / Fabricated / Hollow / LSAW Pipes |
| wall thickness | 035" –.095′, (special wall thicknesses available) |
| Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Round, Square, Rectangular, Hydraulic, Straight or 'U' bent Tubes Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded. |
| Surface Finish |
1/2 inch through 1" tubing is mechanically polished with an inner diameter (ID) of 20 Ra µ-inch (0.5 µm) Outer diameter (OD) of 32 µ-inch (0.8 µm). 1-1/2 and 2 inch Alloy G30/ G35 tubing is available with a sanitary finish that is better than traditional commercial grade tube finish, and suitable for applications in sanitary/ high purity hygienic industries. 3 inch Alloy G30/ G35 tubing is available with a mill finish ID and OD. |
| Marking | All s are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer's request.) |
| We can also cut, thread, and groove Hastelloy G30/ G35 Tubes to meet your specifications. | |
Hastelloy G-30 Characteristic:
Hastelloy G-30 offers superior corrosion resistance to commercial phosphoric acid and many complex environments containing strong oxidizing acids such as nitric acid/hydrochloric acid, nitric acid/hydrofluoric acid and sulfuric acid. dIt can prevent the formation of grain boundary precipitation in the welding heat affected zone, so that it can adapt to many kinds of chemical working conditions in the welding state.
Alloy G30 Pipe Machinability:
Hastelloy G30 alloy can be machined using conventional techniques employed for iron based alloys. The quality of the alloy can be improved with the utilization of water-base coolants. Heavy duty machining tools and equipment can be used prior to cutting in order to reduce chattering or work-hardening of the alloy.
